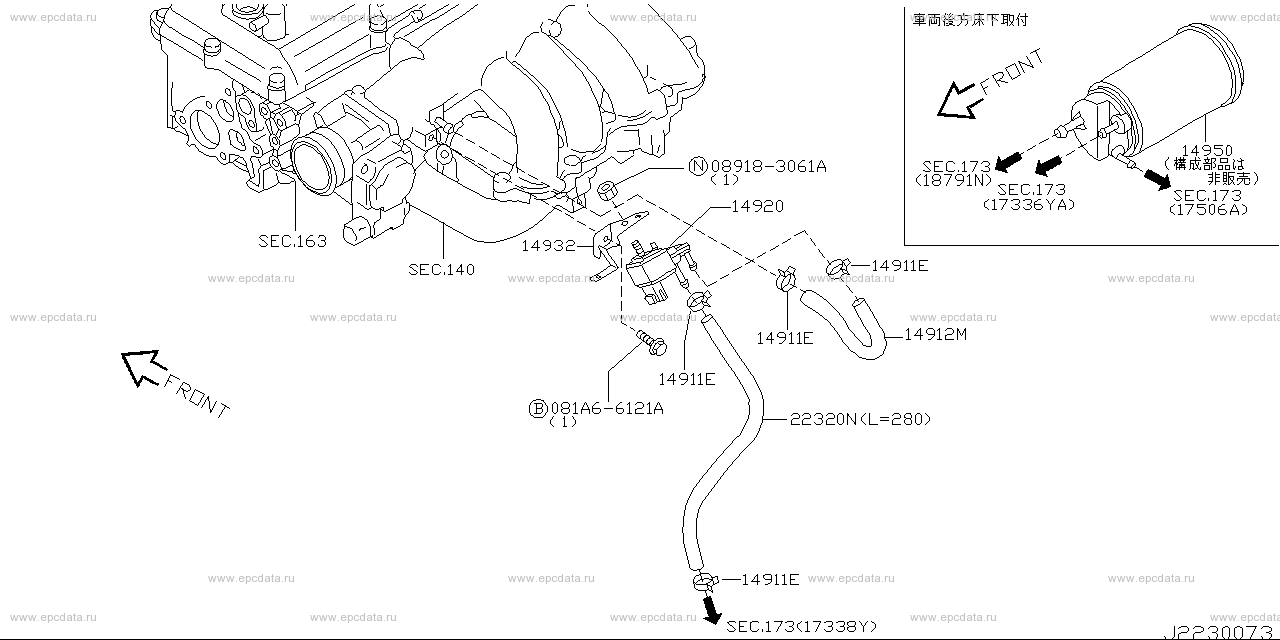

223 - vacuum piping & canister (engine) for Nissan X-Trail T30

	Frame / Series T30 / T30 body W (wagon ) engine QR20DE (QR20DE engine ) drive 2WD (two-wheel drive ) Manufacture period 10.2000 - ... grade S transmission AT (automatic transmission )

---

Applies for models	Manufacture period	Spec
QR20DE	06.2003 - 12.2005

Open full screen picture Up to the top

089183061A 14911E - clamp, hose 14911EA - clamp, hose 14912M - hose, evaporator control 14920 - valve assembly, control 14950 - evaporative emission canister 22320N - hose, vacuum control

---

Applies for models	Manufacture period	Spec
QR20DE	12.2005 - ...

Open full screen picture Up to the top

089183061A 14911E - clamp, hose 14911EA - clamp, hose 14912M - hose, evaporator control 14920 - valve assembly, control 14950 - evaporative emission canister 22320N - hose, vacuum control

---

Applies for models	Manufacture period	Spec
QR20DE	10.2000 - 06.2003

Open full screen picture Up to the top

081A66121A 089183061A 14911E - clamp, hose 14912M - hose, evaporator control 14920 - valve assembly, control 14932 - bracket, purge control valve 14950 - evaporative emission canister 22320N - hose, vacuum control

X-Trail T30
