173 - fuel piping (chassis) for Nissan X-Trail T30

	Frame / Series T30 / T30 body W (wagon ) engine QR20DE (QR20DE engine ) drive 2WD (two-wheel drive ) Manufacture period 10.2000 - ... grade S transmission AT (automatic transmission )

---

Applies for models	Manufacture period	Spec
QR20DE	10.2000 - ...	フューエル パイピング

Open full screen picture Up to the top

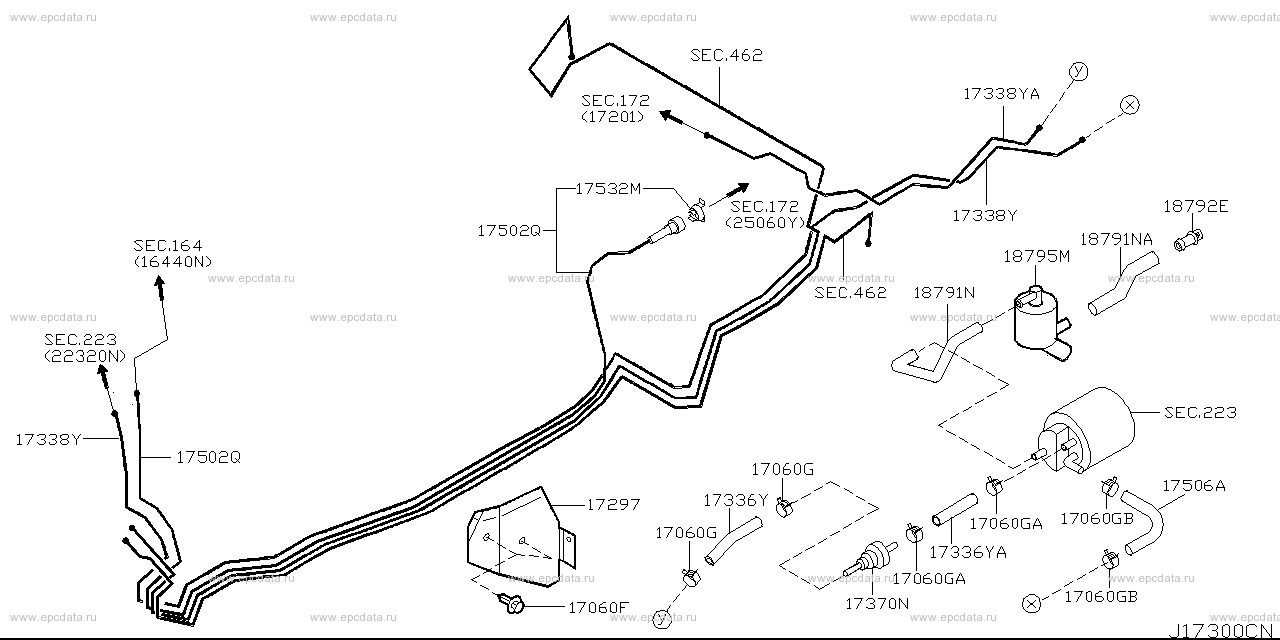

17060F - clip 17060G - clamp 17060GA - clamp 17060GB - clamp 17297 - cover, tube 17336Y - hose, evaporation 17336YA - hose, evaporation 17338Y - tube, breather 17338YA - tube, breather 17370N - valve assembly, fuel check 17502Q - tube assembly, fuel feed 17506A - hose, fuel 17532M - retainer, quick connector 18791N - hose, drain canister 18791NA - hose, drain canister 18792E - connector 18795M - separator, water

---

Applies for models	Manufacture period	Spec
QR20DE	10.2000 - 12.2005	クランプ＆インシュレーター

Open full screen picture Up to the top

081466122G 081466252G 17050F - clamp 17050G - clip 17050GA - clip 17050GB - clip 17572G - clip 17572GA - clip 46271D - insulator 46272D - insulator 46272DA - insulator

---

Applies for models	Manufacture period	Spec
QR20DE	12.2005 - ...	クランプ＆インシュレーター

Open full screen picture Up to the top

081466252G 17050A - bolt 17050F - clamp 17050G - clip 17050GA - clip 17050GB - clip 17572G - clip 17572GA - clip 46271D - insulator 46272D - insulator 46272DA - insulator
