120 - piston & crankshaft & flywheel (engine) for Nissan X-Trail T30

	Frame / Series T30 / T30 body W (wagon ) engine QR20DE (QR20DE engine ) drive 2WD (two-wheel drive ) Manufacture period 10.2000 - ... grade S transmission AT (automatic transmission )

---

Applies for models	Manufacture period	Spec

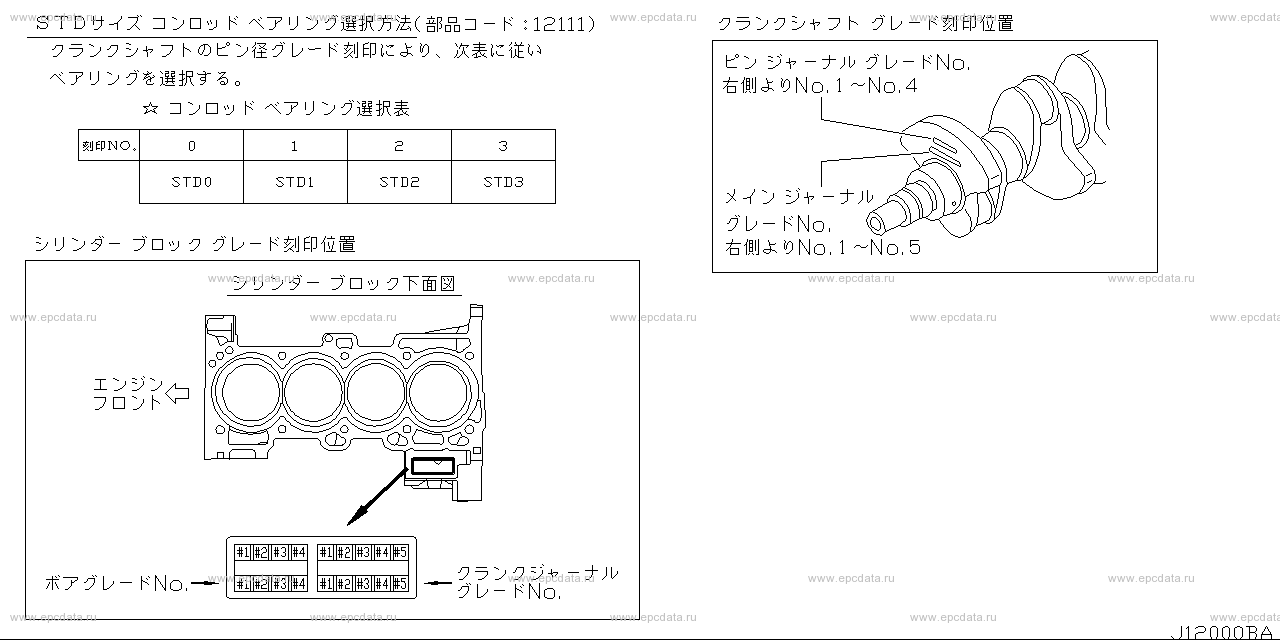

QR20DE	10.2000 - 12.2005	ベアリング選択基準

Open full screen picture Up to the top

12111 - bearing, connecting rod

---

Applies for models	Manufacture period	Spec

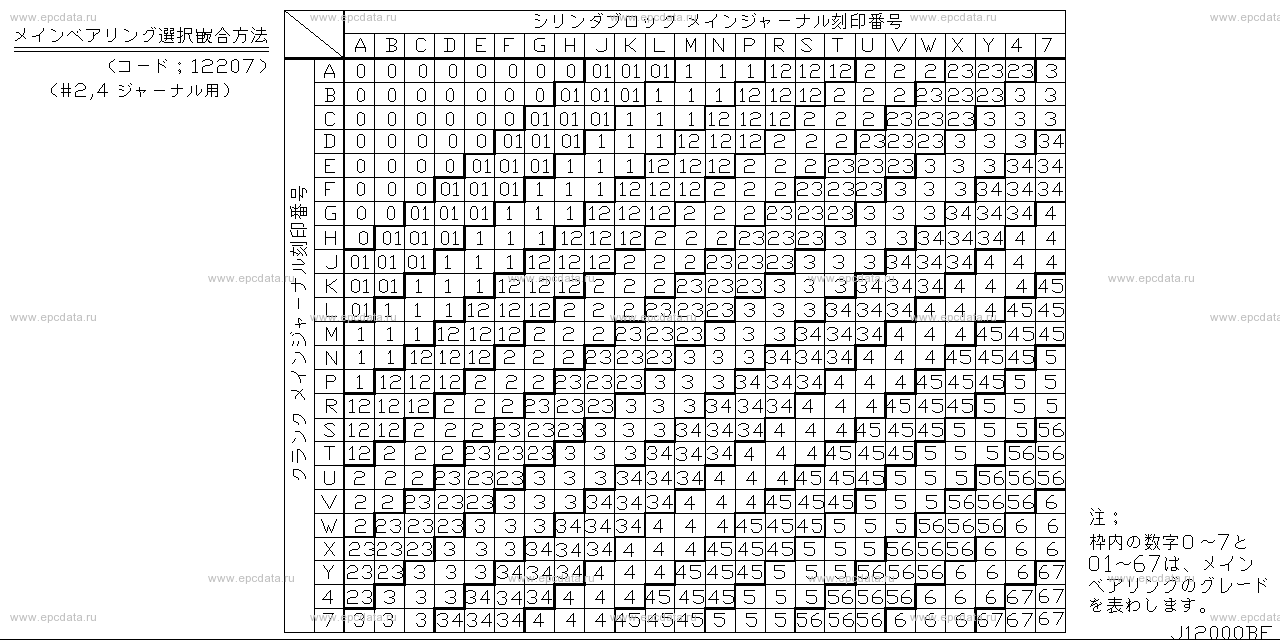

QR20DE	10.2000 - 12.2005	メインメタル選択基準-1

Open full screen picture Up to the top

12207 - bearing, crankshaft

---

Applies for models	Manufacture period	Spec
QR20DE	10.2000 - 12.2005	メインメタル選択基準-2

Open full screen picture Up to the top

12207 - bearing, crankshaft

---

Applies for models	Manufacture period	Spec
QR20DE	10.2000 - 12.2005	主運動部

Open full screen picture Up to the top

12010 - piston with pin 12032 - ring, snap 12033 - ring set, piston 12100 - rod complete, connecting 12109 - bolt, connecting rod 12111 - bearing, connecting rod 12200 - crankshaft assembly 12207 - bearing, crankshaft 12207M - bearing, crankshaft 12207S - bearing set, crankshaft 12208M - washer, thrust 12209 - washer, thrust lower 12299 - shim, crank sprocket 12303 - pulley, crankshaft 12303A - bolt, pulley crankshaft 12310 - flywheel assembly 12310A - bolt, flywheel 12314E - dowel, pin 12314M - plate, signal 12315N - bolt, signal plate 12330 - pilot, converter 12331 - plate assembly, drive & gear 12333 - plate, crankshaft to converter 13021 - sprocket, crankshaft

---

Applies for models	Manufacture period	Spec
QR20DE	12.2005 - ...	主運動部

Open full screen picture Up to the top

12010 - piston with pin 12032 - ring, snap 12033 - ring set, piston 12100 - rod complete, connecting 12109 - bolt, connecting rod 12111 - bearing, connecting rod 12200 - crankshaft assembly 12207 - bearing, crankshaft 12207M - bearing, crankshaft 12207S - bearing set, crankshaft 12208M - washer, thrust 12209 - washer, thrust lower 12299 - shim, crank sprocket 12303 - pulley, crankshaft 12303A - bolt, pulley crankshaft 12310 - flywheel assembly 12310A - bolt, flywheel 12314E - dowel, pin 12314M - plate, signal 12315N - bolt, signal plate 12330 - pilot, converter 12331 - plate assembly, drive & gear 12333 - plate, crankshaft to converter 13021 - sprocket, crankshaft

---

Applies for models	Manufacture period	Spec

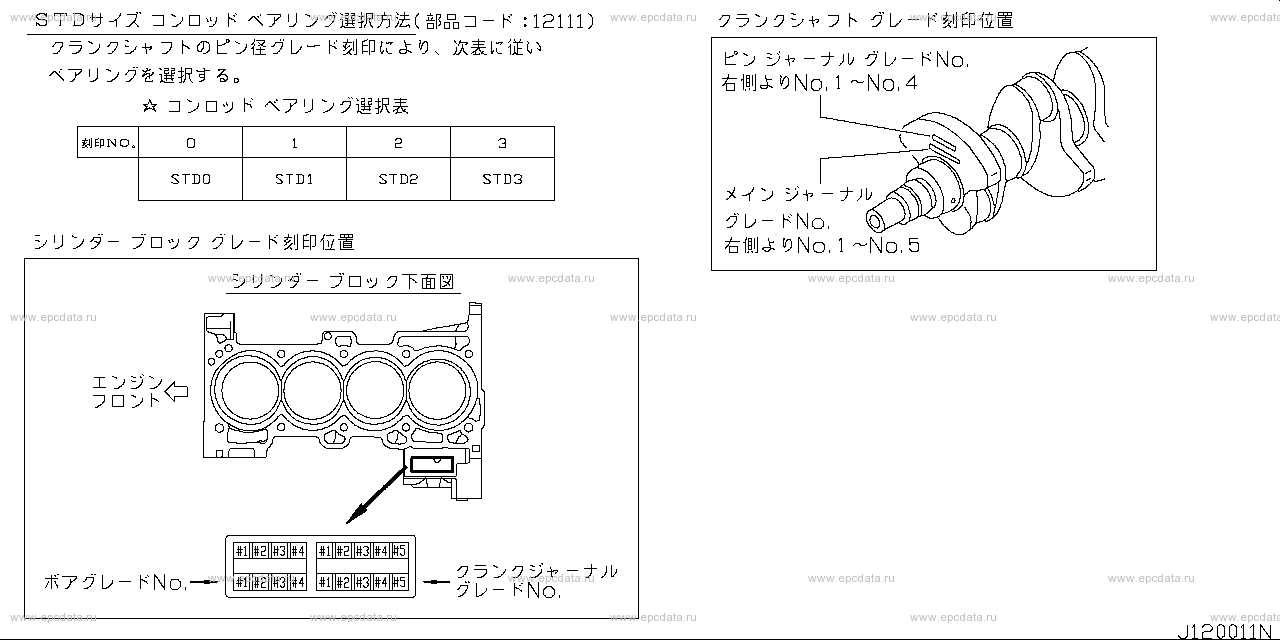

QR20DE	12.2005 - ...	ベアリング選択基準

Open full screen picture Up to the top

12111 - bearing, connecting rod

---

Applies for models	Manufacture period	Spec
QR20DE	12.2005 - ...	メインメタル選択基準-1

Open full screen picture Up to the top

12207 - bearing, crankshaft

---

Applies for models	Manufacture period	Spec
QR20DE	12.2005 - ...	メインメタル選択基準-2

Open full screen picture Up to the top

12207 - bearing, crankshaft

X-Trail T30
