111 - cylinder head & rocker cover (engine) for Nissan X-Trail T30

	Frame / Series T30 / T30 body W (wagon ) engine QR20DE (QR20DE engine ) drive 2WD (two-wheel drive ) Manufacture period 10.2000 - ... grade S transmission AT (automatic transmission )

---

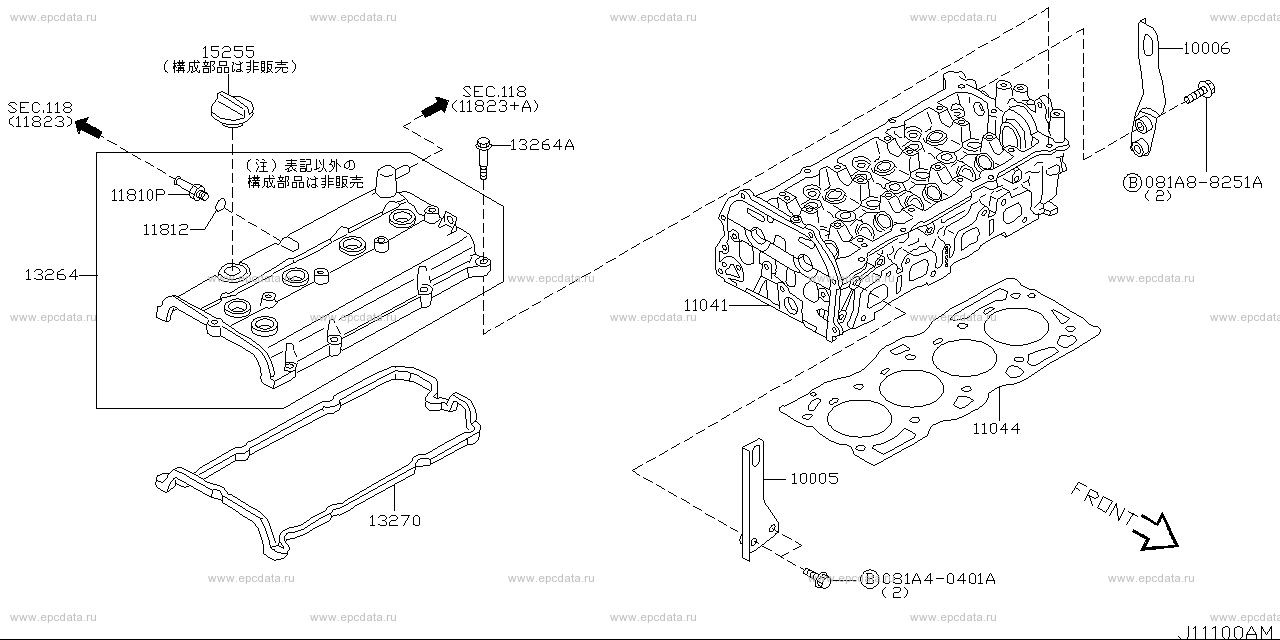

Applies for models	Manufacture period	Spec
QR20DE	10.2000 - 12.2005	アッセンブリー

Open full screen picture Up to the top

081A40401A 081A88251A 10005 - slinger, engine 10006 - slinger, engine 11041 - head assembly, cylinder 11044 - gasket, cylinder head 11810P - valve assembly, control 11812 - rubber PCV, valve 13264 - cover assembly, valve rocker 13264A - bolt, rocker cover 13270 - gasket, rocker cover 15255 - cap assembly, oil filler

---

Applies for models	Manufacture period	Spec
QR20DE	10.2000 - 06.2001	シリンダーヘッド構成

Open full screen picture Up to the top

0093312890 0893171800 11024A - pin, dowel 11041 - head assembly, cylinder 11048B - plug, thread 11056 - bolt, cylinder head 11095 - tube, spark plug 11098 - seat, valve intake 11099 - seat, valve exhaust 13058 - bolt, camshaft bracket 13058+A - bolt, camshaft bracket 13212 - guide, valve intake 13213 - guide, valve exhaust 13273 - gasket

---

Applies for models	Manufacture period	Spec
QR20DE	06.2001 - 06.2003	シリンダーヘッド構成

Open full screen picture Up to the top

0093312890 11024A - pin, dowel 11041 - head assembly, cylinder 11048B - plug, thread 11048BA - plug, thread 11056 - bolt, cylinder head 11095 - tube, spark plug 11098 - seat, valve intake 11099 - seat, valve exhaust 13058 - bolt, camshaft bracket 13058+A - bolt, camshaft bracket 13212 - guide, valve intake 13213 - guide, valve exhaust 13273 - gasket

---

Applies for models	Manufacture period	Spec
QR20DE	06.2003 - 12.2005	シリンダーヘッド構成

Open full screen picture Up to the top

0093312890 11024A - pin, dowel 11041 - head assembly, cylinder 11048B - plug, thread 11048BA - plug, thread 11056 - bolt, cylinder head 11095 - tube, spark plug 11098 - seat, valve intake 11099 - seat, valve exhaust 13058 - bolt, camshaft bracket 13058+A - bolt, camshaft bracket 13212 - guide, valve intake 13213 - guide, valve exhaust 13273 - gasket

---

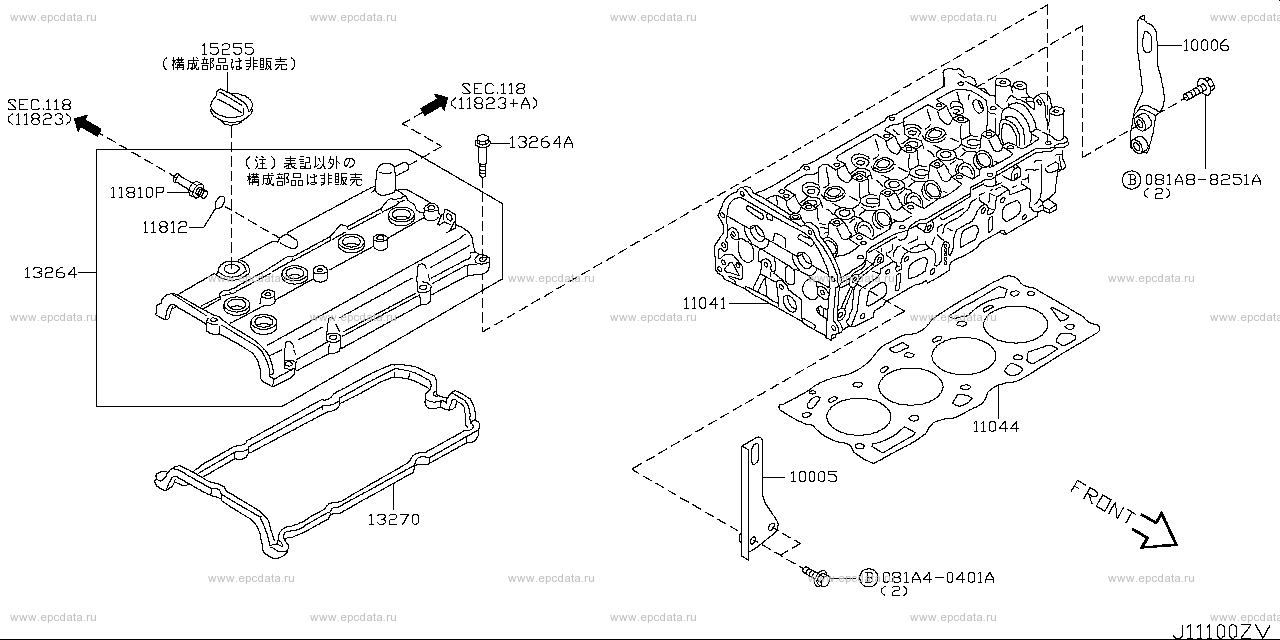

Applies for models	Manufacture period	Spec
QR20DE	12.2005 - ...	アッセンブリー

Open full screen picture Up to the top

081A40401A 081A88251A 10005 - slinger, engine 10006 - slinger, engine 11041 - head assembly, cylinder 11044 - gasket, cylinder head 11810P - valve assembly, control 11812 - rubber PCV, valve 13264 - cover assembly, valve rocker 13264A - bolt, rocker cover 13270 - gasket, rocker cover 15255 - cap assembly, oil filler

---

Applies for models	Manufacture period	Spec
QR20DE	12.2005 - ...	シリンダーヘッド構成

Open full screen picture Up to the top

0093312890 11024A - pin, dowel 11041 - head assembly, cylinder 11048B - plug, thread 11048BA - plug, thread 11056 - bolt, cylinder head 11095 - tube, spark plug 11098 - seat, valve intake 11099 - seat, valve exhaust 13058 - bolt, camshaft bracket 13058+A - bolt, camshaft bracket 13212 - guide, valve intake 13213 - guide, valve exhaust 13273 - gasket

X-Trail T30
