NissanX-TrailT3010.2000 - ...Electrics231 - alternator (engine)

231 - alternator (engine) for Nissan X-Trail T30



Frame / SeriesT30 / T30 body W (wagon )engine QR20DE (QR20DE engine )drive 2WD (two-wheel drive )
Manufacture period10.2000 - ...grade Stransmission AT (automatic transmission )

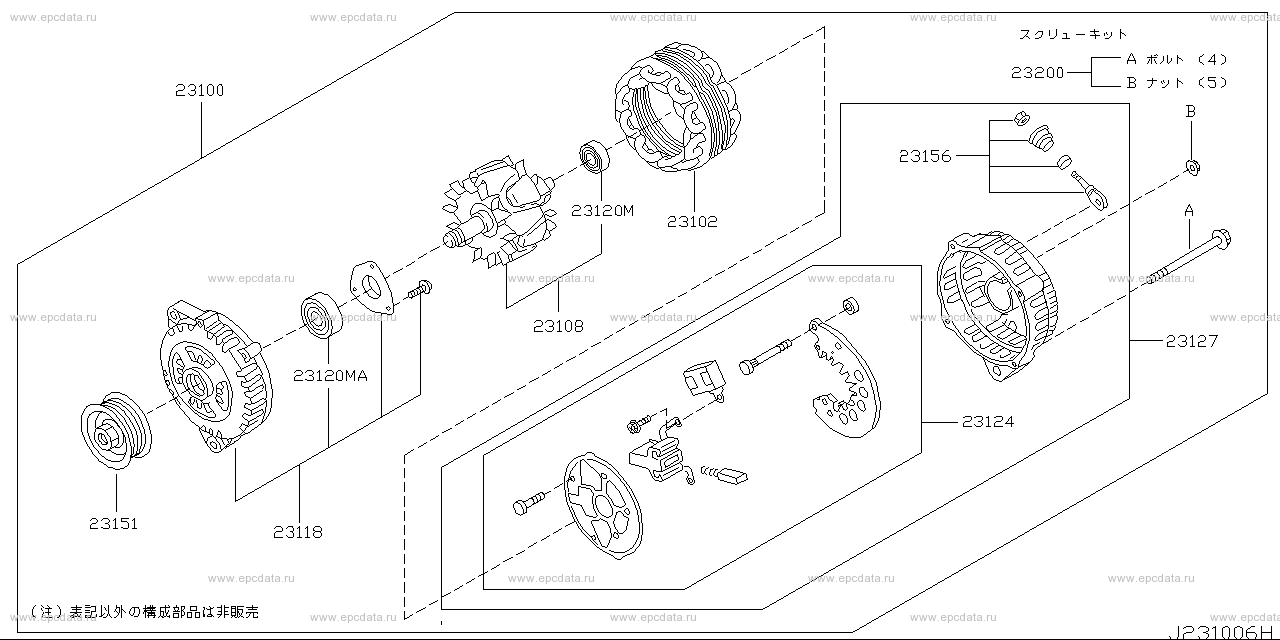

Scheme 231A_001 Scheme 231B_001
Applies for modelsManufacture periodSpec
QR20DE10.2000 - 12.2005日立

Open full screen pictureOpen full screen picture
Up to the top

23100 - alternator assembly
23102 - stator assembly
23108 - rotor assembly
23118 - cover assembly, front
23120M - bearing, ball
23120MA - bearing, ball
23124 - rectifier assembly
23127 - cover assembly, rear
23151 - pulley, alternator
23156 - terminal assembly,B
23200 - screw set
Applies for modelsManufacture periodSpec
QR20DE12.2005 - ...オルターネーター本体

Open full screen pictureOpen full screen picture
Up to the top

23100 - alternator assembly
23102 - stator assembly
23108 - rotor assembly
23118 - cover assembly, front
23120M - bearing, ball
23120MA - bearing, ball
23124 - rectifier assembly
23127 - cover assembly, rear
23151 - pulley, alternator
23156 - terminal assembly,B
23200 - screw set

Nissan X-Trail genuine parts
