130 - cam shaft & valve mechanism (engine) for Nissan X-Trail DNT31

	Frame / Series DNT31 / T31 body W (wagon ) engine M9R (M9R engine ) drive 4WD (4 wheel drive ) Manufacture period 09.2008 - ... grade X/GT (X/GT grade ) transmission 6MT (6-speed manual transmission )

---

Applies for models	Manufacture period	Spec
M9R	09.2008 - ...	カムシャフトアッセンブリー＆バルブ

Open full screen picture Up to the top

13001 - camshaft assembly 13001+A - camshaft assembly 13201 - valve, intake 13202 - valve, exhaust 13203 - spring, valve outer 13209 - retainer, valve spring 13210 - collet, valve spring 13234M - pivot, rocker 13257M - rocker, valve

---

Applies for models	Manufacture period	Spec
M9R	09.2008 - ...	タイミング　ベルト

Open full screen picture Up to the top

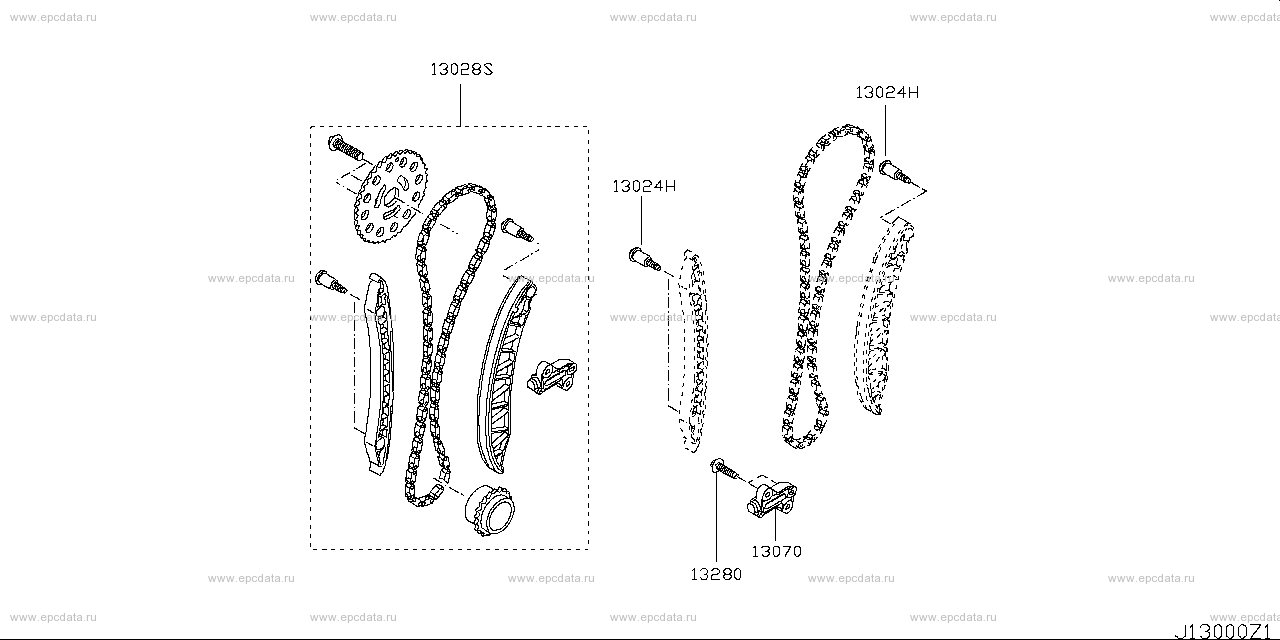

13024H - pin, guide 13028S - timing chain kit 13070 - tensioner assembly, chain 13280 - bolt

---

Applies for models	Manufacture period	Spec
M9R	09.2008 - ...	カムシャフト　パーツ

Open full screen picture Up to the top

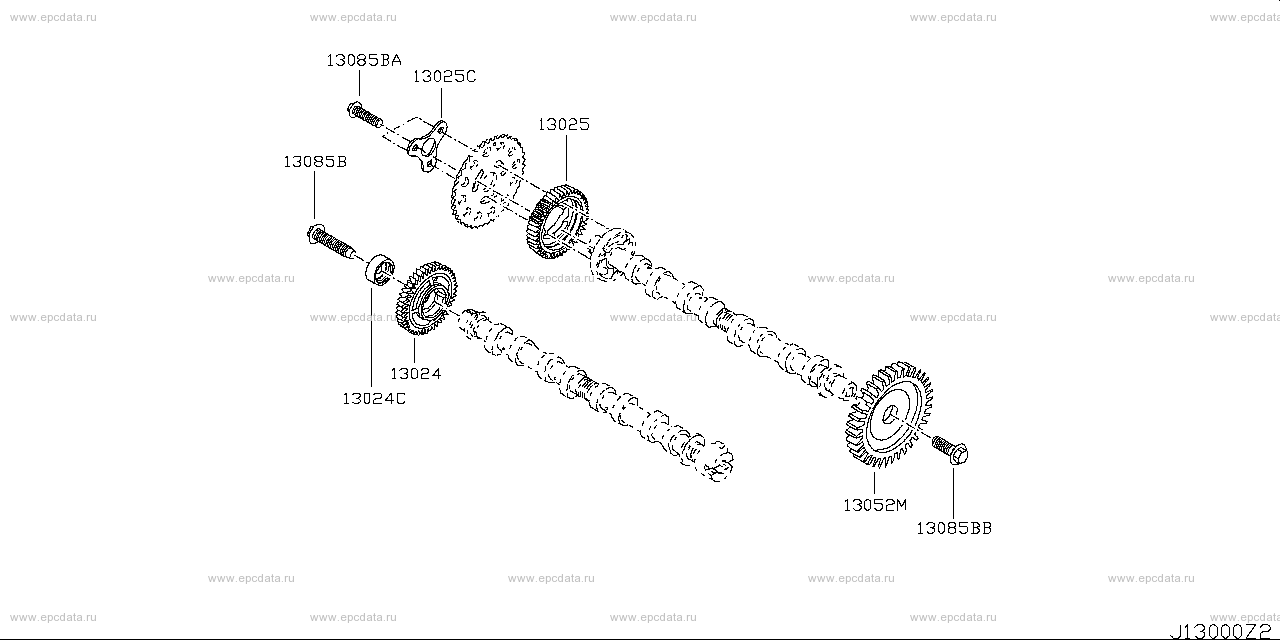

13024 - sprocket (pulley), camshaft 13024C - washer, plain 13025 - sprocket, camshaft intake 13025C - washer, plain 13052M - gear, drive 13085B - bolt 13085BA - bolt 13085BB - bolt
