270 - heater & blower unit (Denso) for Nissan X-Trail DNT31

	Frame / Series DNT31 / T31 body W (wagon ) engine M9R (M9R engine ) drive 4WD (4 wheel drive ) Manufacture period 09.2008 - ... grade X/GT (X/GT grade ) transmission 6MT (6-speed manual transmission )

---

Applies for models	Manufacture period	Spec

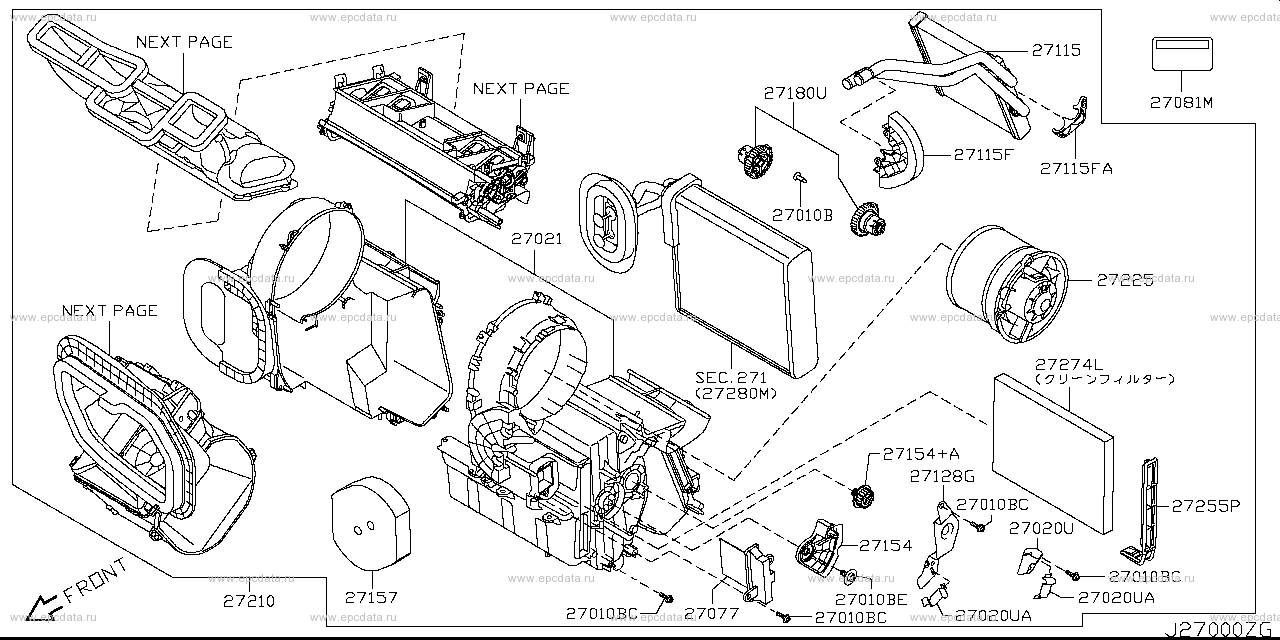

W	08.2007 - ...	ﾌﾞﾛｱｰ ﾕﾆｯﾄ(NO.1) manual

Open full screen picture Up to the top

27010B - screw 27010BC - screw 27010BE - screw 27020U - clip 27020UA - clip 27021 - case, blower 27077 - resistance, electric 27081M - label, clean filter 27115 - core assembly, front heater 27115F - support, heater core 27115FA - support, heater core 27128G - holder, rod 27154 - link 27154+A - link 27157 - packing 27180U - door, front heater 27210 - blower assembly, air conditioner 27225 - motor assembly, blower with case 27255P - shaft, door intake blower 27274L - filter kit, air air conditioner

---

Applies for models	Manufacture period	Spec
W	08.2007 - ...	ﾌﾞﾛｱｰ ﾕﾆｯﾄ(NO.1)ｵｰﾄ

Open full screen picture Up to the top

0851051612 27010B - screw 27010BC - screw 27010BD - screw 27020F - bracket, blower 27021 - case, blower 27115 - core assembly, front heater 27115F - support, heater core 27115FA - support, heater core 27157 - packing 27180U - door, front heater 27210 - blower assembly, air conditioner 27225 - motor assembly, blower with case 27226N - MOS transistor module assy 27255P - shaft, door intake blower 27274L - filter kit, air air conditioner 27723P - sensor assembly, intake 27726X - aspirator 27733M - actuator assembly, mode 27733N - actuator assembly, air mix 27864R - bracket

---

Applies for models	Manufacture period	Spec

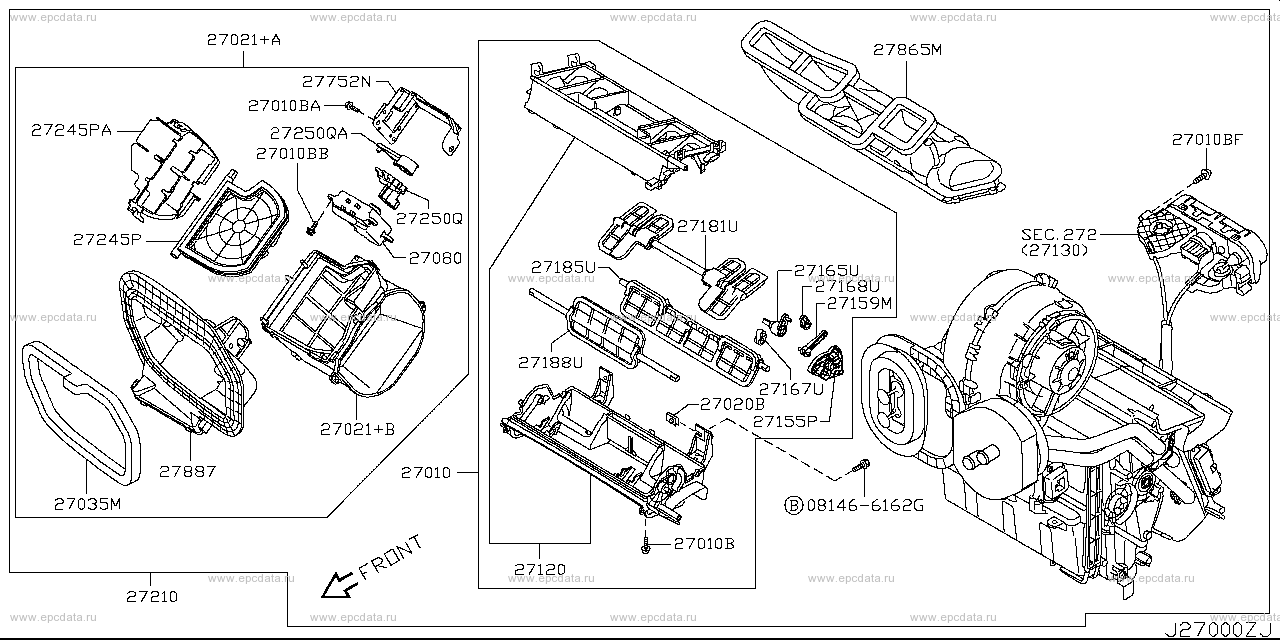

W	08.2007 - ...	ﾌﾞﾛｱｰ ﾕﾆｯﾄ(NO.2) manual

Open full screen picture Up to the top

081466162G 27010 - heating unit assembly, front 27010B - screw 27010BA - screw 27010BB - screw 27010BF - screw 27020B - nut 27021+A - case, blower 27021+B - case, blower 27035M - seal 27080 - actuator, air intake 27120 - case assembly, front heater unit 27155P - link, main 27159M - link, foot 27165U - lever, vent 27167U - lever, diff 27168U - lever, foot 27181U - door assembly, vent NO.1 27185U - door assembly, foot 27188U - door assembly, diff 27210 - blower assembly, air conditioner 27245P - door, intake blower front 27245PA - door, intake blower front 27250Q - lever 27250QA - lever 27752N - bracket, actuator 27865M - adapter, center vent & diff 27887 - duct, intake fresh

---

Applies for models	Manufacture period	Spec

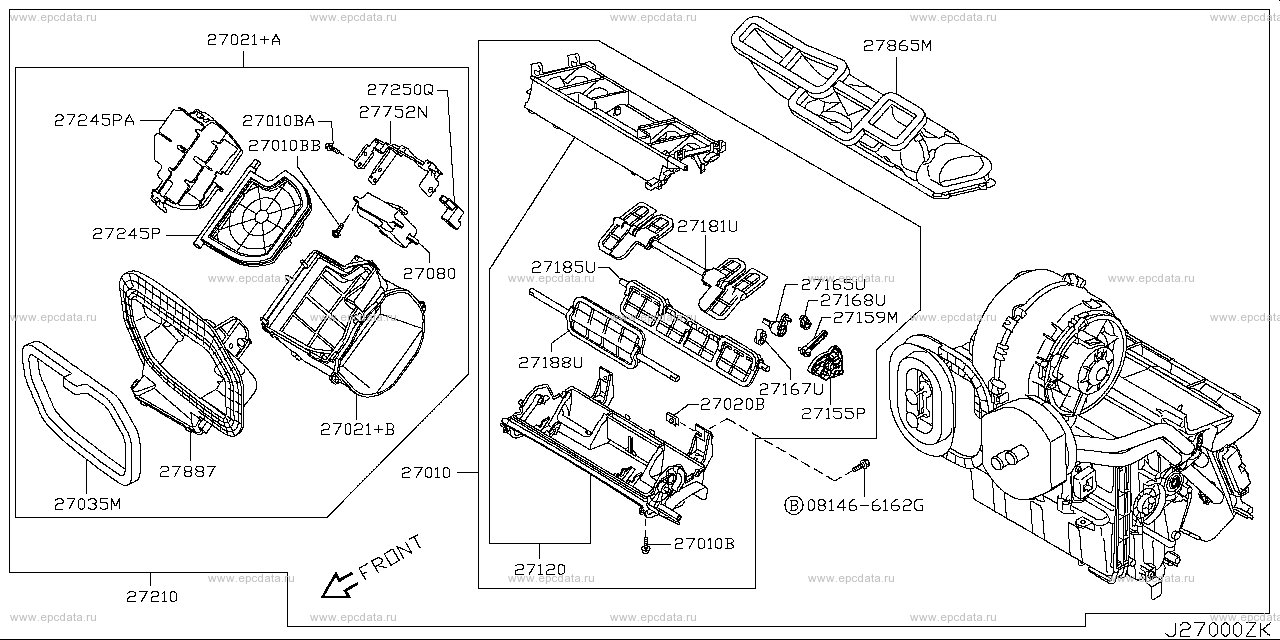

W	08.2007 - ...	ﾌﾞﾛｱｰ ﾕﾆｯﾄ(NO.2)ｵｰﾄ

Open full screen picture Up to the top

081466162G 27010 - heating unit assembly, front 27010B - screw 27010BA - screw 27010BB - screw 27020B - nut 27021+A - case, blower 27021+B - case, blower 27035M - seal 27080 - actuator, air intake 27120 - case assembly, front heater unit 27155P - link, main 27159M - link, foot 27165U - lever, vent 27167U - lever, diff 27168U - lever, foot 27181U - door assembly, vent NO.1 27185U - door assembly, foot 27188U - door assembly, diff 27210 - blower assembly, air conditioner 27245P - door, intake blower front 27245PA - door, intake blower front 27250Q - lever 27752N - bracket, actuator 27865M - adapter, center vent & diff 27887 - duct, intake fresh

---

Applies for models	Manufacture period	Spec
W.M9R	09.2008 - ...	ﾌﾞﾛｱｰ ﾕﾆｯﾄ(NO.3) manual M1D

Open full screen picture Up to the top

27010BC - screw 27020F - bracket, blower 27143N - PTC heater assembly 27175M - bracket, front heater 27210 - blower assembly, air conditioner 27238 - bell mouth, intake
