260 - head lamp (Denso) for Nissan X-Trail DNT31

	Frame / Series DNT31 / T31 body W (wagon ) engine M9R (M9R engine ) drive 4WD (4 wheel drive ) Manufacture period 09.2008 - ... grade X/GT (X/GT grade ) transmission 6MT (6-speed manual transmission )

---

Applies for models	Manufacture period	Spec
W	08.2007 - ...	ﾊﾛｹﾞﾝ

Open full screen picture Up to the top

26010 - head lamp assembly,RH 26010A - bolt 26011A - ﾊﾞﾙﾌﾞ 26011AA - ﾊﾞﾙﾌﾞ 26011AB - ﾊﾞﾙﾌﾞ 26025 - housing assembly, head lamp RH 26025C - socket assembly, clearance lamp 26029M - cover, socket 26029MA - cover, socket 26038 - harness assembly, head lamp RH 26038+A - harness assembly, head lamp RH 26060 - head lamp assembly,LH 26075 - housing assembly, head lamp LH 26250U - socket assembly, side marker

---

Applies for models	Manufacture period	Spec
W	08.2007 - ...	ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ

Open full screen picture Up to the top

26011A - ﾊﾞﾙﾌﾞ 26023B - nut 26038N - harness assembly, head lamp 26038NA - harness assembly, head lamp 26610 - lamp assembly, driving RH 26610B - nut 26610E - grommet 26612 - rim, driving lamp RH 26612+A - rim, driving lamp RH 26612+B - rim, driving lamp RH 26613 - packing, driving lamp RH 26615 - lamp assembly, driving LH 26617 - rim, driving lamp LH 26617+A - rim, driving lamp LH 26617+B - rim, driving lamp LH 26618 - packing, driving lamp LH

---

Applies for models	Manufacture period	Spec
*W	08.2007 - ...	ｷｾﾉﾝ

Open full screen picture Up to the top

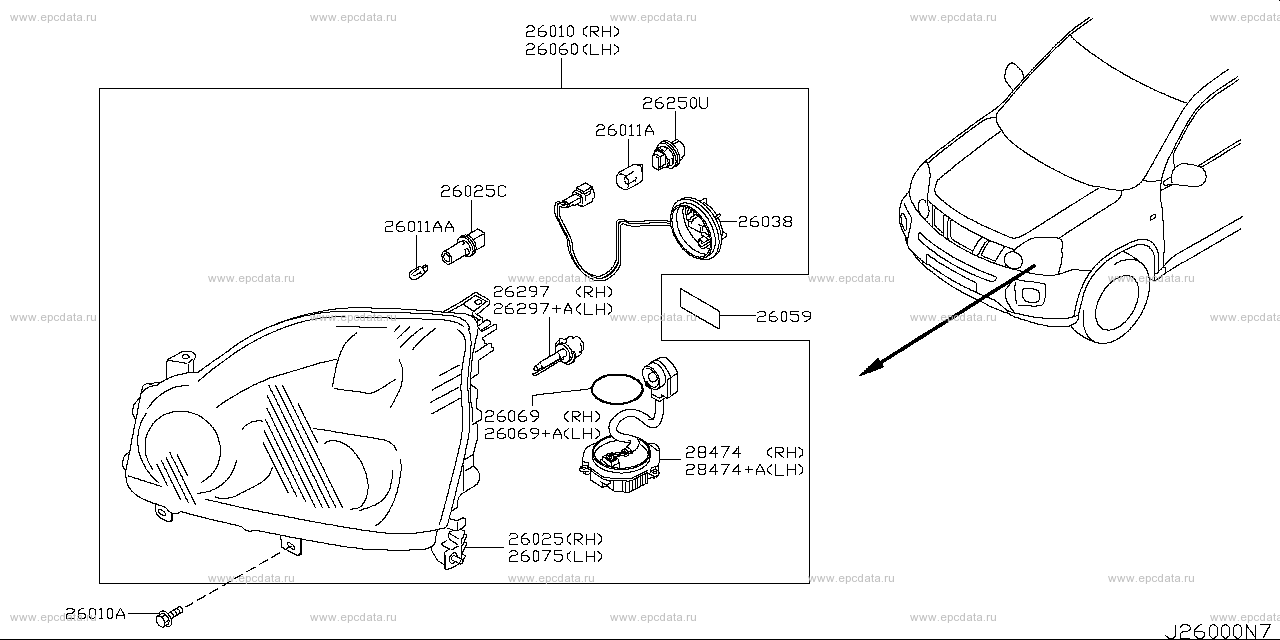

26010 - head lamp assembly,RH 26010A - bolt 26011A - ﾊﾞﾙﾌﾞ 26011AA - ﾊﾞﾙﾌﾞ 26025 - housing assembly, head lamp RH 26025C - socket assembly, clearance lamp 26038 - harness assembly, head lamp RH 26059 - label, head lamp 26060 - head lamp assembly,LH 26069 - seal,O ring head lamp 26069+A - seal,O ring head lamp 26075 - housing assembly, head lamp LH 26250U - socket assembly, side marker 26297 - bulb, xenon 26297+A - bulb, xenon 28474 - control unit, xenon head lamp 28474+A - control unit, xenon head lamp

X-Trail DNT31
