240 - wiring (Denso) for Nissan X-Trail DNT31

	Frame / Series DNT31 / T31 body W (wagon ) engine M9R (M9R engine ) drive 4WD (4 wheel drive ) Manufacture period 09.2008 - ... grade X/GT (X/GT grade ) transmission 6MT (6-speed manual transmission )

---

Applies for models	Manufacture period	Spec
W.M9R	09.2008 - ...	engine ﾙｰﾑ

Open full screen picture Up to the top

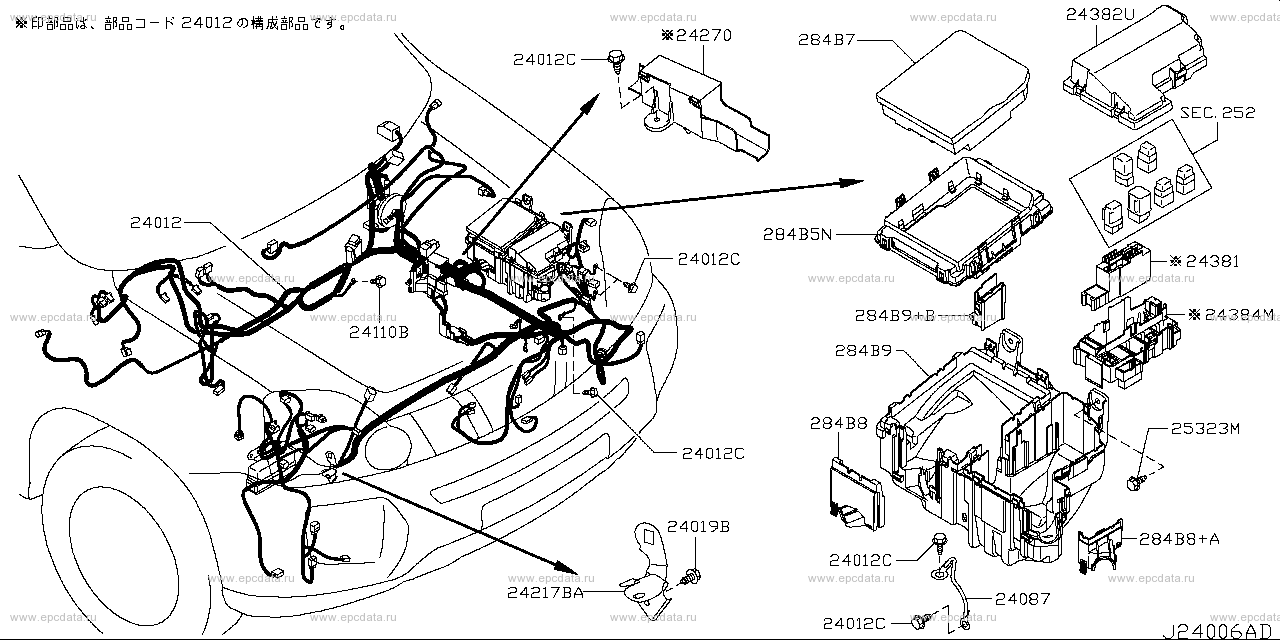

24012 - harness assembly, engine room 24012C - screw 24019B - nut 24087 - cable, earth 24110B - bolt 24217BA - bracket, harness clip 24270 - protector, harness 24381 - housing, fusible link holder 24382U - cover, fusible link holder 24384M - frame, relay box 25323M - bolt 284B5N - bracket,IPDM 284B7 - controller unit,IPDM engine room 284B8 - cover,USM 284B8+A - cover,USM 284B9 - cover,USM 284B9+B - cover,USM

---

Applies for models	Manufacture period	Spec
W.M9R	09.2008 - ...	ﾌｨｯﾃｨﾝｸﾞ(engine ﾙｰﾑ)

Open full screen picture Up to the top

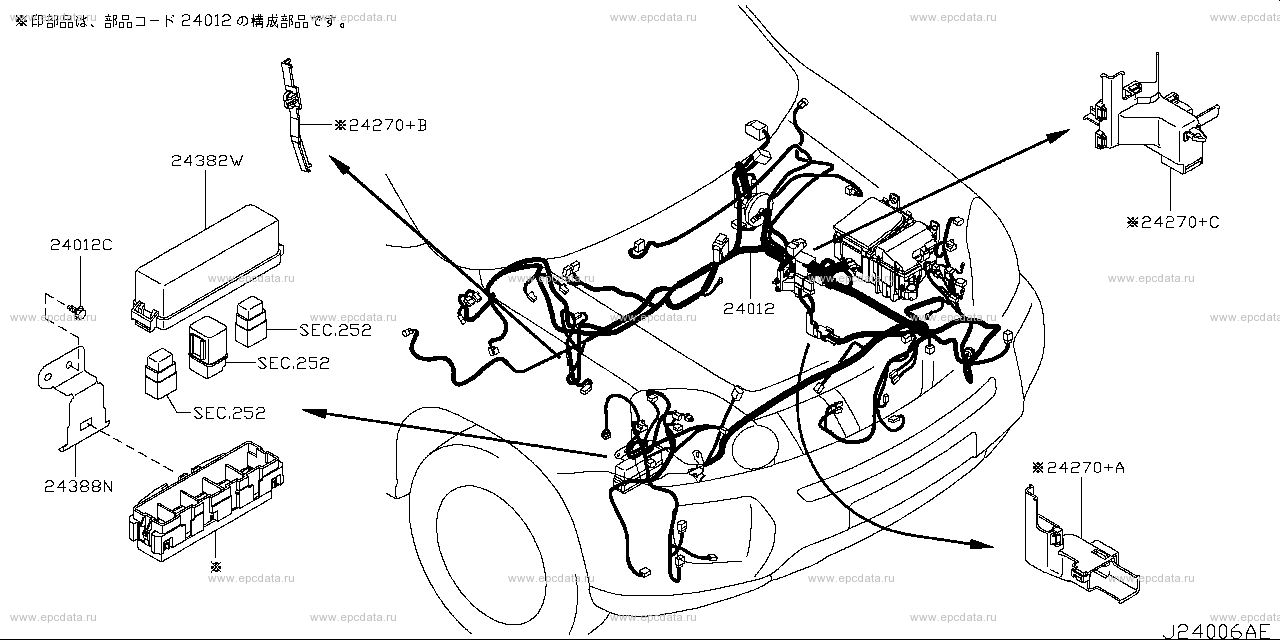

24012 - harness assembly, engine room 24012C - screw 24270+A - protector, harness 24270+B - protector, harness 24270+C - protector, harness 24382W - cover, relay box 24388N - bracket, relay box

---

Applies for models	Manufacture period	Spec
W.M9R	09.2008 - ...	body

Open full screen picture Up to the top

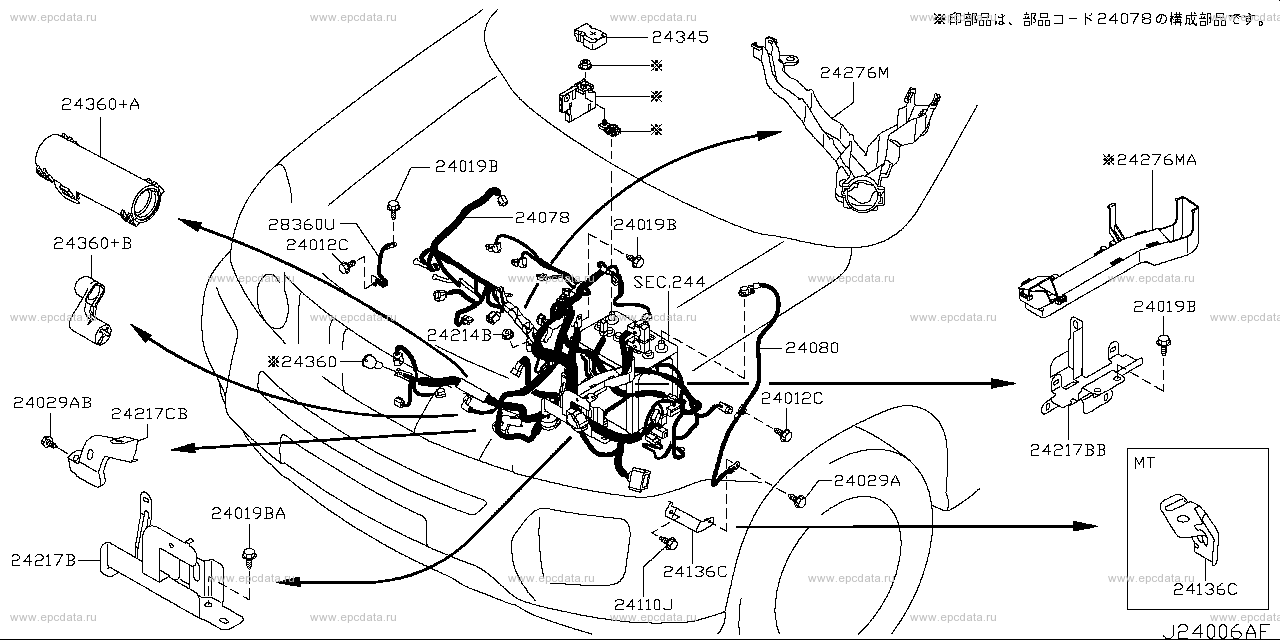

24012C - screw 24019B - nut 24019BA - nut 24029A - bolt 24029AB - bolt 24078 - harness assembly,EGI 24080 - cable assembly, battery earth 24110J - bolt 24136C - bracket, connector 24214B - nut, flange 24217B - bracket, harness clip 24217BB - bracket, harness clip 24217CB - bracket, harness clip 24276M - protector, harness 24276MA - protector, harness 24345 - cover, connector 24360 - cap, terminal 24360+A - cap, terminal 24360+B - cap, terminal 28360U - wire, bonding

---

Applies for models	Manufacture period	Spec
W.M9R	09.2008 - ...	ﾌｨｯﾃｨﾝｸﾞ(body)

Open full screen picture Up to the top

081686161A 085666302A 24010 - harness assembly, main 24012A - screw 24012AA - screw 24016 - harness assembly, console 24028M - harness, sub 24040 - harness assembly, air conditioner 24130Q - diode 24346 - frame, connector 24346N - bracket, connector 24370 - connector assembly, fusible link 25419N - bracket, fuse block 25419NA - bracket, fuse block 25465M - fuse

---

Applies for models	Manufacture period	Spec
W.M9R	09.2008 - ...	body harness RH

Open full screen picture Up to the top

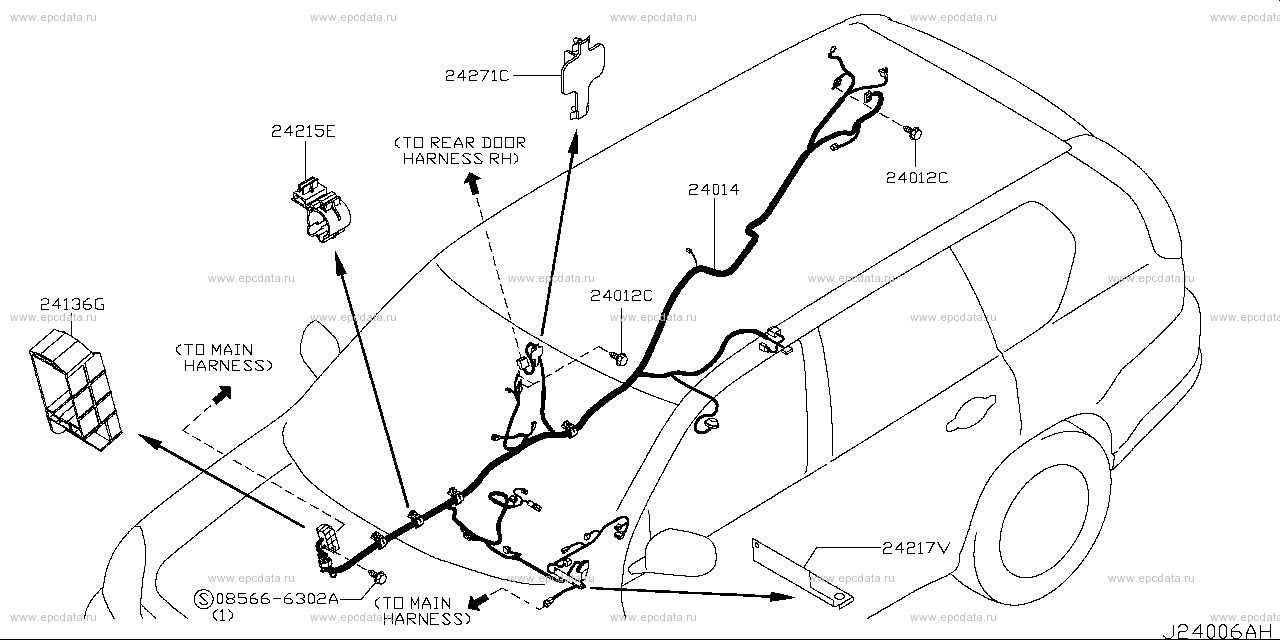

085666302A 24012C - screw 24014 - harness assembly, body 24136G - bracket assembly, connector 24215E - clip, wiring harness 24217V - bracket, harness clip 24271C - protector, harness

---

Applies for models	Manufacture period	Spec
W.M9R	09.2008 - ...	body harness LH

Open full screen picture Up to the top

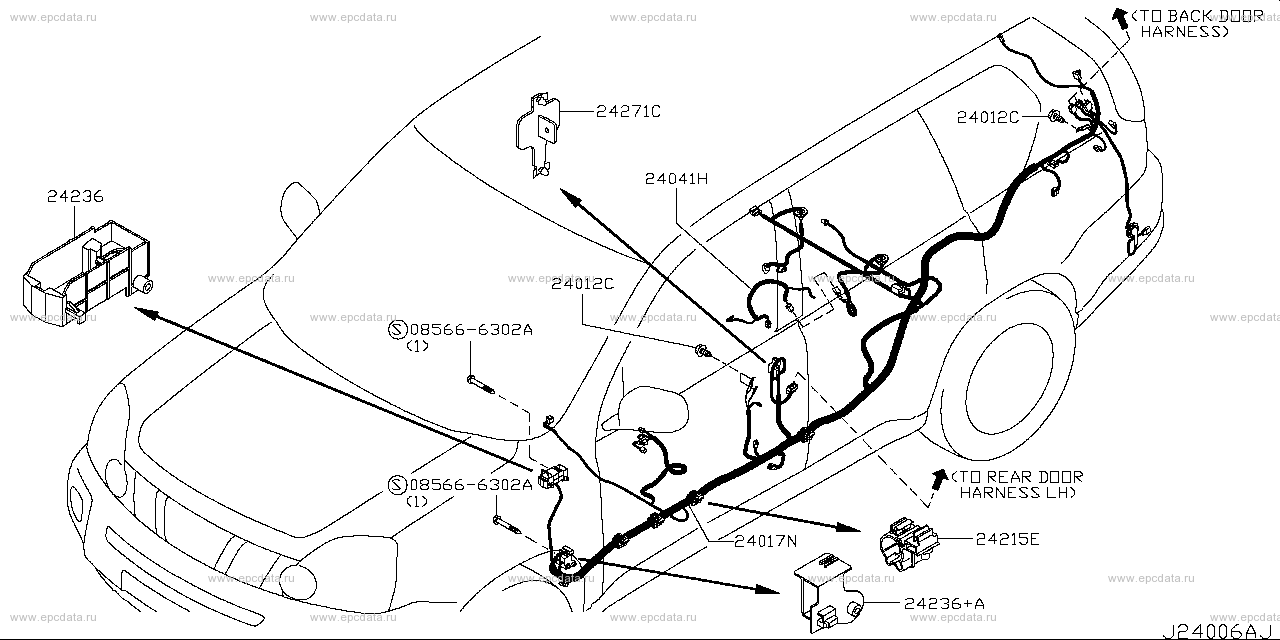

085666302A 24012C - screw 24017N - harness, body LH 24041H - harness, chassis 24215E - clip, wiring harness 24236 - bracket, connector 24236+A - bracket, connector 24271C - protector, harness

---

Applies for models	Manufacture period	Spec
W.M9R	09.2008 - ...	ﾄﾞｱ & ﾊﾞｯｸﾄﾞｱ harness

Open full screen picture Up to the top

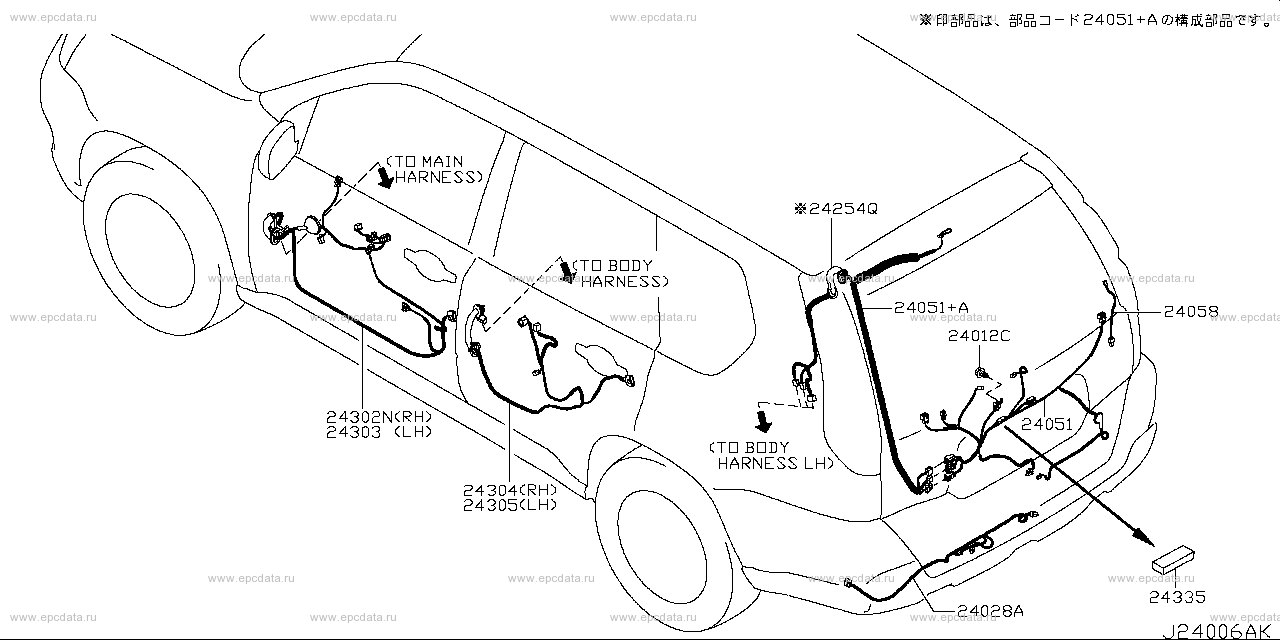

24012C - screw 24028A - harness, sub 24051 - harness, back door 24051+A - harness, back door 24058 - harness, defogger rear 24254Q - grommet 24302N - harness assembly, door front 24303 - harness assembly, door front 24304 - harness assembly, door rear 24305 - harness assembly, door rear LH 24335 - diode

---

Applies for models	Manufacture period	Spec
W.M9R	09.2008 - ...	ﾙｰﾌ　ﾊｰﾈｽ

Open full screen picture Up to the top

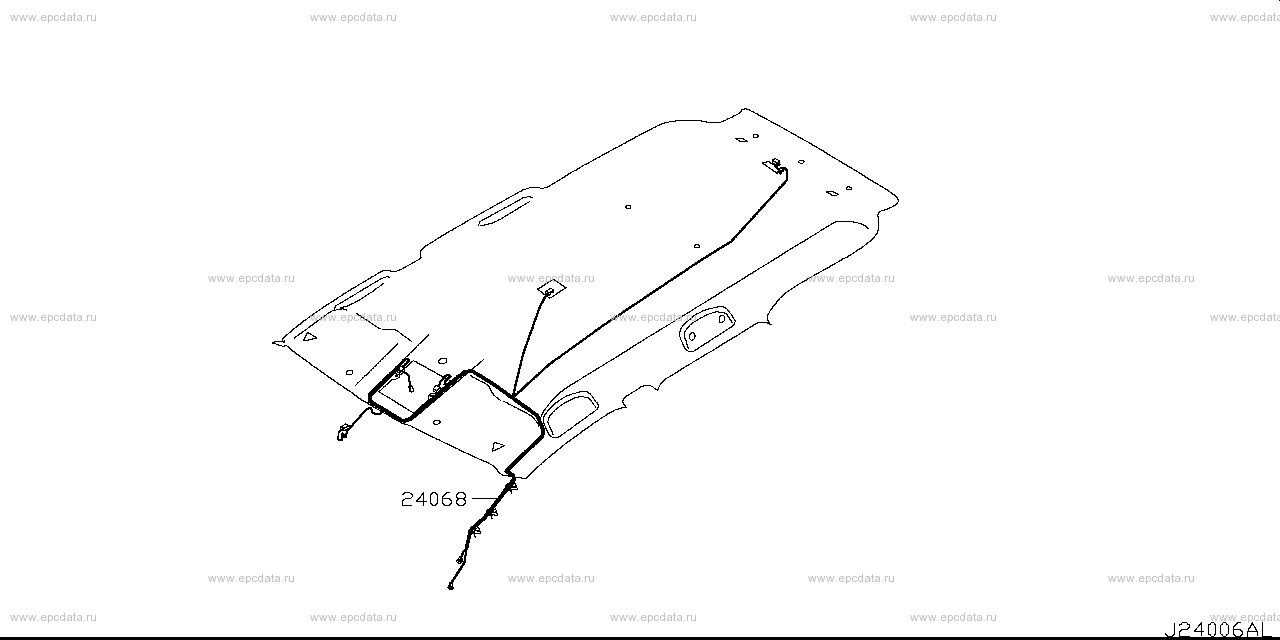

24068 - harness, roof
