870 - front seat (trim) for Nissan X-Trail DNT31

	Frame / Series DNT31 / T31 body W (wagon ) engine M9R (M9R engine ) drive 4WD (4 wheel drive ) Manufacture period 09.2008 - ... grade X/GT (X/GT grade ) transmission 6MT (6-speed manual transmission )

---

Applies for models	Manufacture period	Spec
W	08.2007 - ...	RH seat

Open full screen picture Up to the top

0854351242 86400 - head rest assembly, front seat 87000F - screw 87105 - frame & adjuster assy front seat RH 87311Q - pad, front seat cushion 87318 - lever, lifter 87320N - trim assembly, front seat cushion 87322N - finisher, cushion front seat RH rear 87325M - finisher, cushion front seat RH lower 87330 - finisher assembly, cushion front seat RH 87331N - finisher, cushion front seat inner RH 87348E - cap, lifter knob 87405M - cover, reclining device RH outer 87406M - cover, reclining device inner 87418 - knob, reclining device 87501A - bolt 87505 - cover, seat slide 87505+B - cover, seat slide 87505+D - cover, seat slide 87505+E - cover, seat slide 87602 - holder assembly, head rest lock 87603 - holder assembly, headrest free 87611Q - pad, front seat back 87612 - pad, top front seat back 87620P - trim assembly, front seat back 87643 - supporter, front seat back

---

Applies for models	Manufacture period	Spec
W	08.2007 - ...	LH seat

Open full screen picture Up to the top

0854351242 86400 - head rest assembly, front seat 87311QA - pad, front seat cushion 87320NA - trim assembly, front seat cushion 87351 - frame assembly, front seat cushion LH 87380 - finisher assembly, cushion front seat LH 87381N - finisher, cushion front seat inner LH 87406MA - cover, reclining device inner 87418+A - knob, reclining device 87455M - cover, reclining device LH outer 87501A - bolt 87505+A - cover, seat slide 87505+C - cover, seat slide 87505+F - cover, seat slide 87558R - cover, seat slide rear inner LH 87602+A - holder assembly, head rest lock 87603+A - holder assembly, headrest free 87611QA - pad, front seat back 87612+A - pad, top front seat back 87620PA - trim assembly, front seat back 87643+A - supporter, front seat back

---

Applies for models	Manufacture period	Spec
*W	08.2007 - ...	RH seat (ABAGS)

Open full screen picture Up to the top

0854351242 86400 - head rest assembly, front seat 87000F - screw 87105 - frame & adjuster assy front seat RH 87311Q - pad, front seat cushion 87318 - lever, lifter 87320N - trim assembly, front seat cushion 87322N - finisher, cushion front seat RH rear 87325M - finisher, cushion front seat RH lower 87330 - finisher assembly, cushion front seat RH 87331N - finisher, cushion front seat inner RH 87348E - cap, lifter knob 87405M - cover, reclining device RH outer 87406M - cover, reclining device inner 87418 - knob, reclining device 87501A - bolt 87505 - cover, seat slide 87505+B - cover, seat slide 87505+D - cover, seat slide 87505+E - cover, seat slide 87602 - holder assembly, head rest lock 87603 - holder assembly, headrest free 87610P - lumbar, front seat back RH 87611Q - pad, front seat back 87612 - pad, top front seat back 87620P - trim assembly, front seat back 87643 - supporter, front seat back 985H0 - module assembly, side air back front RH

---

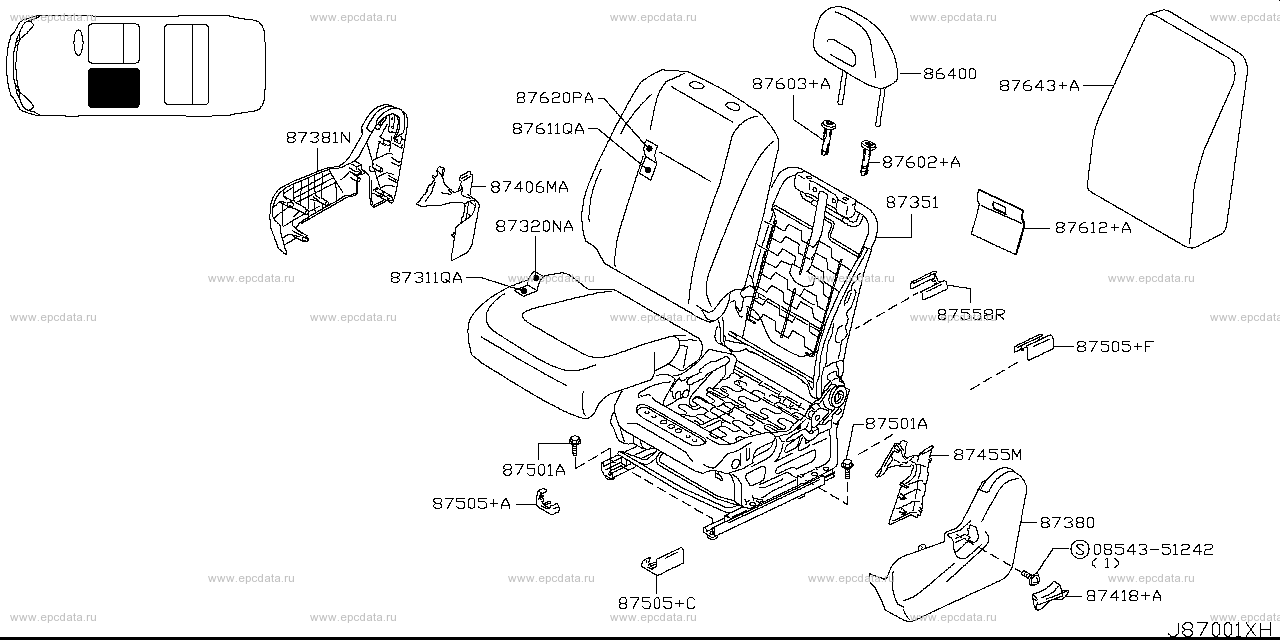

Applies for models	Manufacture period	Spec
*W	08.2007 - ...	LH seat (ABAGS)

Open full screen picture Up to the top

0854351242 86400 - head rest assembly, front seat 87311QA - pad, front seat cushion 87320NA - trim assembly, front seat cushion 87351 - frame assembly, front seat cushion LH 87380 - finisher assembly, cushion front seat LH 87381N - finisher, cushion front seat inner LH 87406MA - cover, reclining device inner 87418+A - knob, reclining device 87455M - cover, reclining device LH outer 87501A - bolt 87505+A - cover, seat slide 87505+C - cover, seat slide 87505+F - cover, seat slide 87558R - cover, seat slide rear inner LH 87602+A - holder assembly, head rest lock 87603+A - holder assembly, headrest free 87611QA - pad, front seat back 87612+A - pad, top front seat back 87620PA - trim assembly, front seat back 87643+A - supporter, front seat back 985H1 - module assembly, side air back front LH
