272 - control unit (heater, air conditioner) (Denso) for Nissan X-Trail DNT31

	Frame / Series DNT31 / T31 body W (wagon ) engine M9R (M9R engine ) drive 4WD (4 wheel drive ) Manufacture period 09.2008 - ... grade X/GT (X/GT grade ) transmission 6MT (6-speed manual transmission )

---

Applies for models	Manufacture period	Spec
W	08.2007 - ...	control ｱｯｾﾝﾌﾞﾘｰ(manual)

Open full screen picture Up to the top

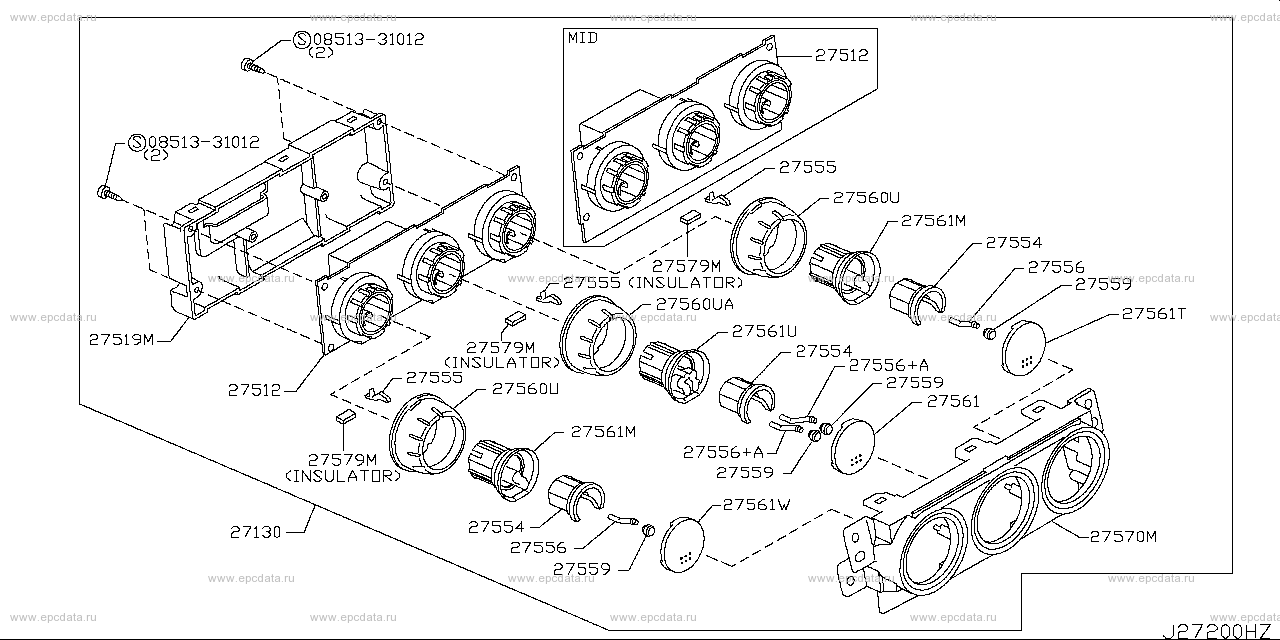

27130 - control assembly 27141M - cable, control mode door 27156X - clip 27542M - cable, temperature control

---

Applies for models	Manufacture period	Spec
W	08.2007 - ...	control ｱｯｾﾝﾌﾞﾘｰ(ｵｰﾄ)

Open full screen picture Up to the top

0851331012 27130 - control assembly 27512 - amplifier, control 27519M - case, control 27554 - stopper, illumination 27555 - lens, heater control 27556 - housing, control 27556+A - housing, control 27559 - knob, dial 27560U - knob, control 27560UA - knob, control 27561 - button, air conditioner 27561M - button, ventilator 27561T - button, fan 27561U - button, recirc 27561W - button, mode 27570M - finisher assembly, control 27579M - pin, switch

---

Applies for models	Manufacture period	Spec
W	08.2007 - ...	ｱｽﾋﾟﾚｰﾀｰ ﾀﾞｸﾄ

Open full screen picture Up to the top

27054M - sensor, in-car 27130C - screw 27621E - duct, aspirator 27705 - sensor assembly, sun

X-Trail DNT31
