488 - steering column (chassis) for Nissan Wingroad / AD Wagon WFY11

	Frame / Series WFY11 / Y11 body W (wagon ) engine QG15DE (QG15DE engine ) drive 2WD Manufacture period 10.2001 - 12.2005 grade S (S grade ) transmission AT.F4 (AT floor 4-speed ) spec AERO (aero spec )

---

Applies for models	Manufacture period	Spec
QG13DE +QG15DE +QG18DE +QG18DEN +QR20DE	10.2003 - 12.2005

Open full screen picture Up to the top

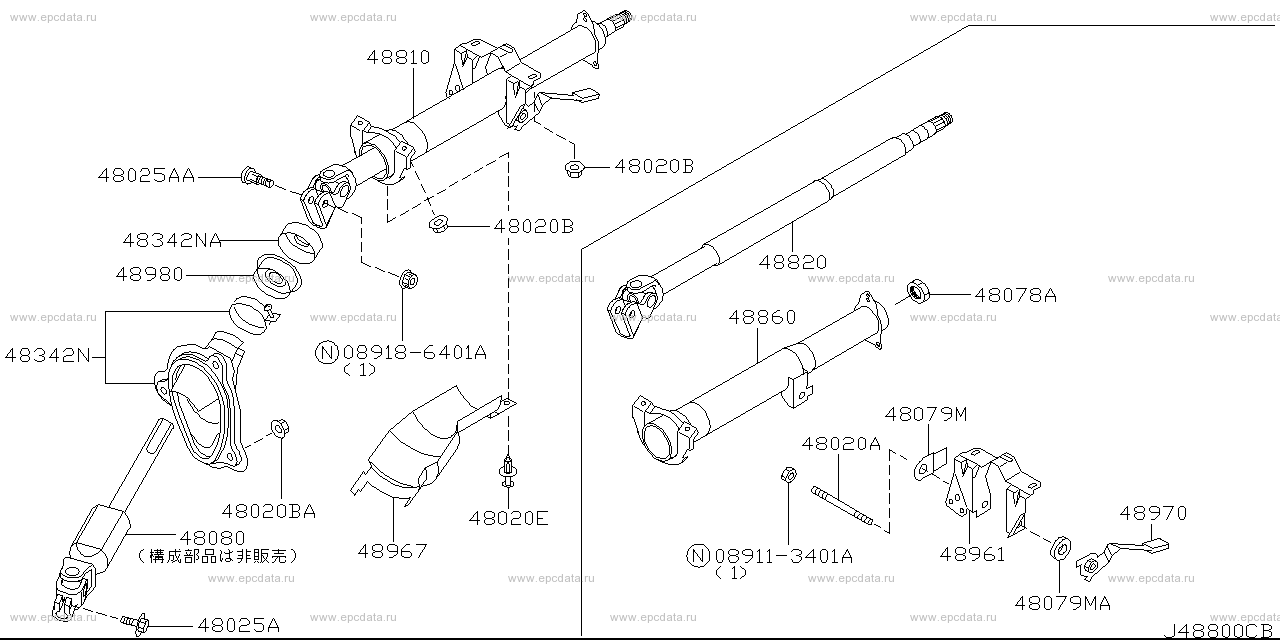

089113401A 089186401A 48020A - bolt 48020B - nut 48020BA - nut 48020E - clip 48025A - bolt 48025AA - bolt 48078A - nut 48079M - stopper, tilt lever 48079MA - stopper, tilt lever 48080 - joint assembly, steering lower 48342N - cover, column hole 48342NA - cover, column hole 48810 - column assembly, steering upper 48820 - shaft assembly, steering column upper 48860 - tube assembly, jacket upper 48961 - clamp, steering column lower 48967 - cover, joint upper 48970 - lever assembly, adjust steering column 48980 - cover assembly, steering column lower

---

Applies for models	Manufacture period	Spec
QG13DE +QG15DE +QG18DE +QG18DEN +QR20DE +YD22DD	11.2002 - 10.2003

Open full screen picture Up to the top

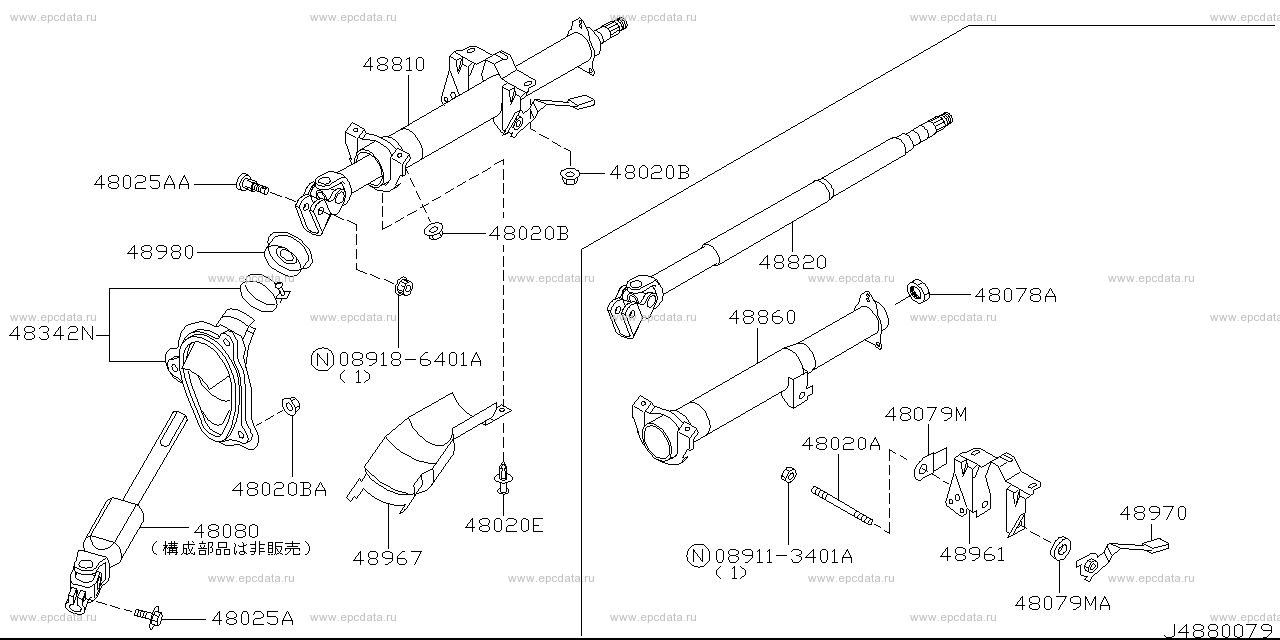

089113401A 089186401A 48020A - bolt 48020B - nut 48020BA - nut 48020E - clip 48025A - bolt 48025AA - bolt 48078A - nut 48079M - stopper, tilt lever 48079MA - stopper, tilt lever 48080 - joint assembly, steering lower 48342N - cover, column hole 48810 - column assembly, steering upper 48820 - shaft assembly, steering column upper 48860 - tube assembly, jacket upper 48961 - clamp, steering column lower 48967 - cover, joint upper 48970 - lever assembly, adjust steering column 48980 - cover assembly, steering column lower

---

Applies for models	Manufacture period	Spec
W.QG15DE +W.QG18DE +QR20DE	10.2001 - 08.2002	ワゴン
W.QG15DE +W.QG18DE +QR20DE	08.2002 - 11.2002

Open full screen picture Up to the top

089113401A 089186401A 48020A - bolt 48020B - nut 48020BA - nut 48020E - clip 48025A - bolt 48025AA - bolt 48078A - nut 48079M - stopper, tilt lever 48079MA - stopper, tilt lever 48080 - joint assembly, steering lower 48342N - cover, column hole 48342NA - cover, column hole 48810 - column assembly, steering upper 48820 - shaft assembly, steering column upper 48860 - tube assembly, jacket upper 48961 - clamp, steering column lower 48967 - cover, joint upper 48970 - lever assembly, adjust steering column 48980 - cover assembly, steering column lower

Wingroad / AD Wagon WFY11
