476 - anti skid control (chassis) for Nissan Wingroad / AD Wagon WFY11

	Frame / Series WFY11 / Y11 body W (wagon ) engine QG15DE (QG15DE engine ) drive 2WD Manufacture period 10.2001 - 12.2005 grade S (S grade ) transmission AT.F4 (AT floor 4-speed ) spec AERO (aero spec )

---

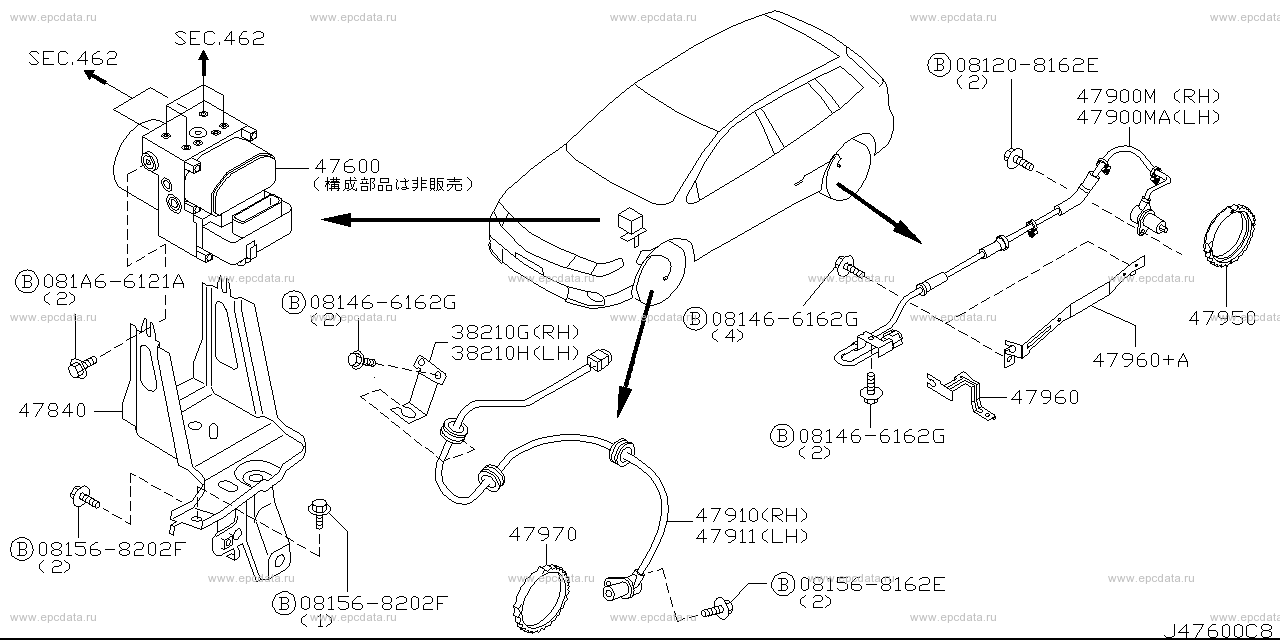

Applies for models	Manufacture period	Spec
W.(QG15DE+QR20DE)	08.2002 - 11.2002	ワゴン

Open full screen picture Up to the top

081208162E 081466162G 081568162E 081568202F 081A66121A 38210G - bracket, sensor 38210H - bracket, sensor 47600 - actuator assembly, anti skid 47840 - bracket, actuator 47900M - sensor assembly, anti skid rear 47900MA - sensor assembly, anti skid rear 47910 - sensor assembly, anti skid front RH 47911 - sensor assembly, anti skid front LH 47950 - sensor rotor, anti skid rear 47960 - bracket, skid control 47960+A - bracket, skid control 47970 - sensor, rotor anti skid front

---

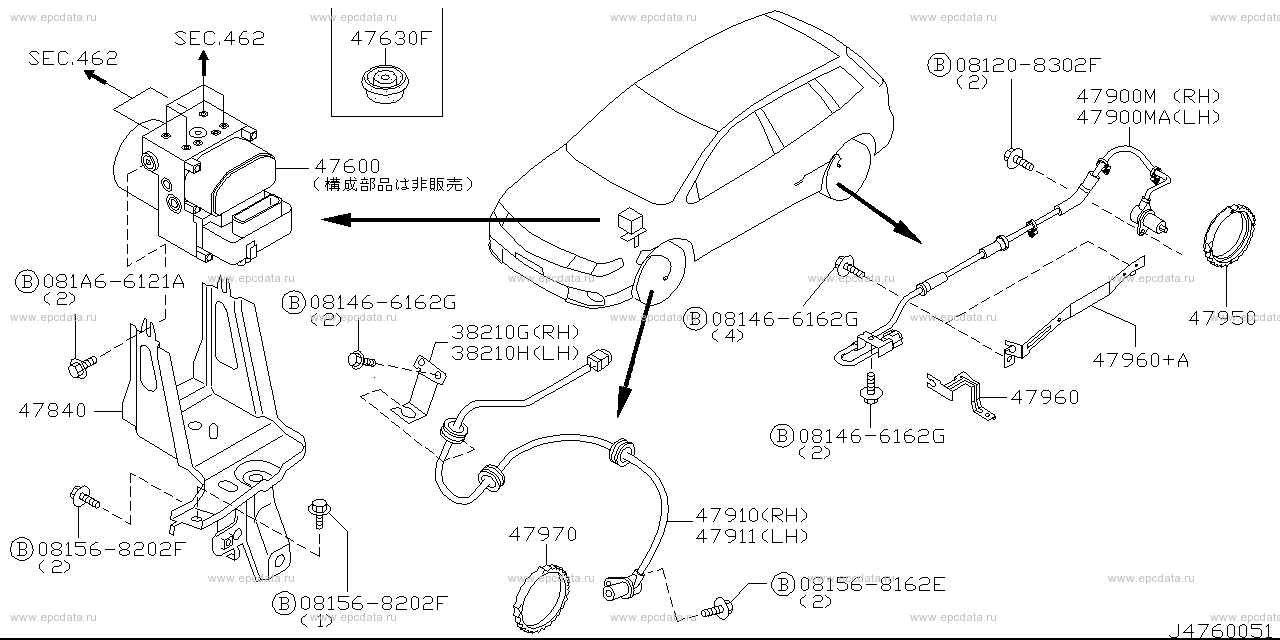

Applies for models	Manufacture period	Spec
W.(QG15DE+QR20DE) +V.2WD.YD22DD +V.(QG13DE+QG15DE+QG18DEN)	11.2002 - 10.2003

Open full screen picture Up to the top

081208162E 081466162G 081568162E 081568202F 081A66121A 38210G - bracket, sensor 38210H - bracket, sensor 47600 - actuator assembly, anti skid 47630F - plug 47840 - bracket, actuator 47900M - sensor assembly, anti skid rear 47910 - sensor assembly, anti skid front RH 47911 - sensor assembly, anti skid front LH 47950 - sensor rotor, anti skid rear 47960 - bracket, skid control 47960+A - bracket, skid control 47970 - sensor, rotor anti skid front

---

Applies for models	Manufacture period	Spec
W.(QG15DE+QR20DE) +V.(QG13DE+QG15DE+QG18DEN)	10.2003 - 05.2004
W.(QG15DE+QR20DE) +V.(QG13DE+QG15DE)	05.2004 - 12.2005

Open full screen picture Up to the top

081208162E 081466162G 081568162E 081568202F 38210G - bracket, sensor 38210H - bracket, sensor 47600 - actuator assembly, anti skid 47608 - rubber, bush 47630F - plug 47840 - bracket, actuator 47900M - sensor assembly, anti skid rear 47910 - sensor assembly, anti skid front RH 47911 - sensor assembly, anti skid front LH 47950 - sensor rotor, anti skid rear 47960 - bracket, skid control 47960+A - bracket, skid control 47970 - sensor, rotor anti skid front

---

Applies for models	Manufacture period	Spec
W.(QG15DE+QR20DE) +V.2WD.YD22DD +V.(QG13DE+QG15DE+QG18DEN)	10.2001 - 08.2002

Open full screen picture Up to the top

081208302F 081466162G 081568162E 081568202F 081A66121A 38210G - bracket, sensor 38210H - bracket, sensor 47600 - actuator assembly, anti skid 47630F - plug 47840 - bracket, actuator 47900M - sensor assembly, anti skid rear 47900MA - sensor assembly, anti skid rear 47910 - sensor assembly, anti skid front RH 47911 - sensor assembly, anti skid front LH 47950 - sensor rotor, anti skid rear 47960 - bracket, skid control 47960+A - bracket, skid control 47970 - sensor, rotor anti skid front

Wingroad / AD Wagon WFY11
