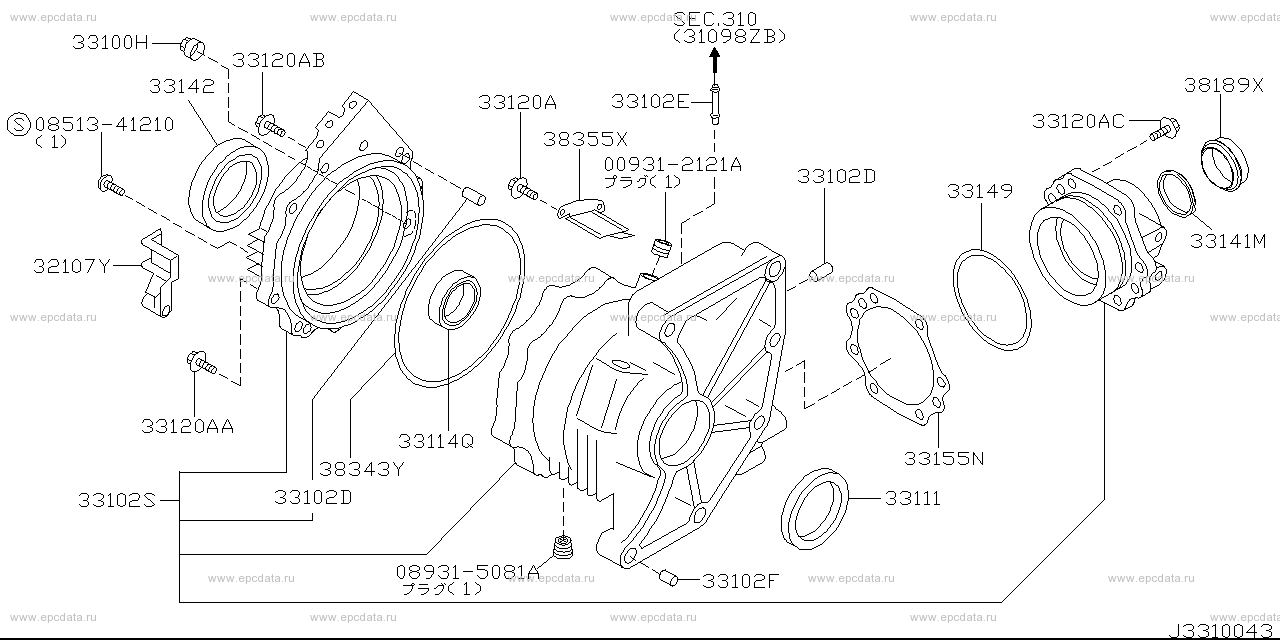

331 - transfer case (unit) for Nissan Wingroad / AD Wagon WFY11

	Frame / Series WFY11 / Y11 body W (wagon ) engine QG15DE (QG15DE engine ) drive 2WD Manufacture period 10.2001 - 12.2005 grade S (S grade ) transmission AT.F4 (AT floor 4-speed ) spec AERO (aero spec )

---

Applies for models	Manufacture period	Spec
QG13DE +QG15DE +QG18DE +QG18DEN +QR20DE +YD22DD	10.2001 - 12.2001	4WD

Open full screen picture Up to the top

009312121A 081208301F 081208402F 081210351F 0851341210 089315081A 32107Y - gutter, oil 33100H - plug, filler 33102D - pin 33102E - breather 33102F - pin 33102S - case set, transfer 33111 - seal, oil ring gear 33114Q - seal, oil drive pinion 33120A - bolt 33141M - cover, rear 33142 - seal, oil 33149 - seal,0 ring pinion shaft sleeve 33155N - shim, adjust pinion shaft sleeve 38189X - seal, oil drive pinion 38343Y - seal,O ring 38355X - defence, gear oil

---

Applies for models	Manufacture period	Spec
QG13DE +QG15DE +QG18DE +QG18DEN +QR20DE +YD22DD	12.2001 - 08.2002	4WD

Open full screen picture Up to the top

009312121A 0851341210 089315081A 32107Y - gutter, oil 33100H - plug, filler 33102D - pin 33102E - breather 33102F - pin 33102S - case set, transfer 33111 - seal, oil ring gear 33114Q - seal, oil drive pinion 33120A - bolt 33120AA - bolt 33120AB - bolt 33120AC - bolt 33141M - cover, rear 33142 - seal, oil 33149 - seal,0 ring pinion shaft sleeve 33155N - shim, adjust pinion shaft sleeve 38189X - seal, oil drive pinion 38343Y - seal,O ring 38355X - defence, gear oil

Wingroad / AD Wagon WFY11
