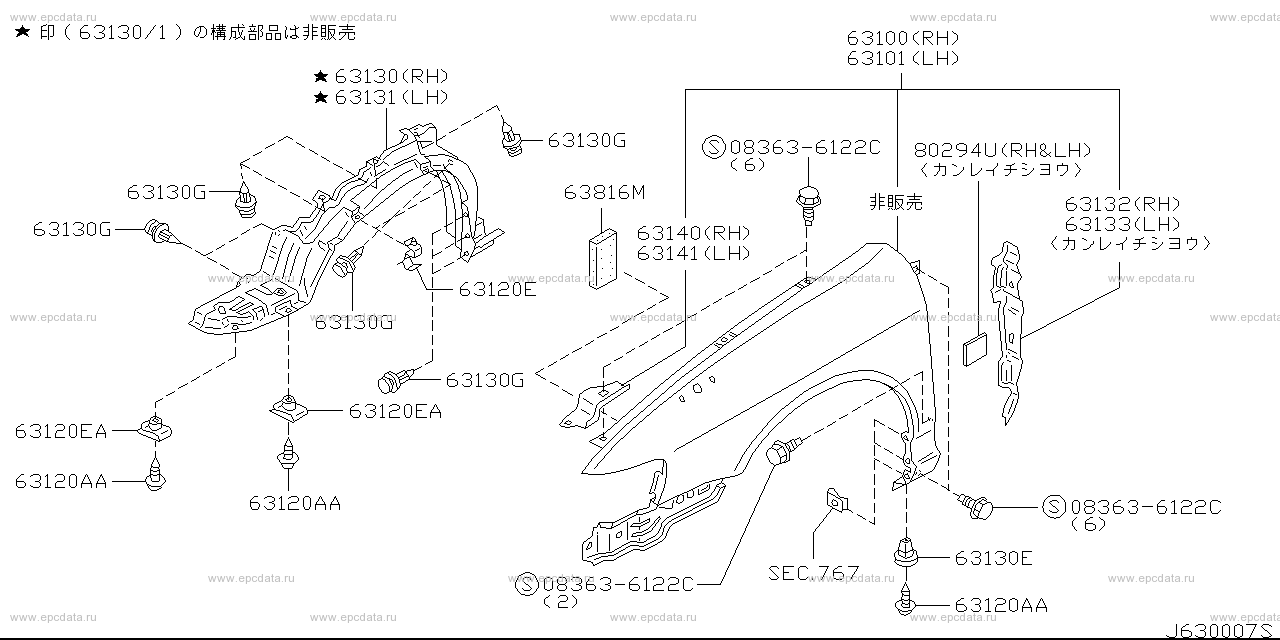

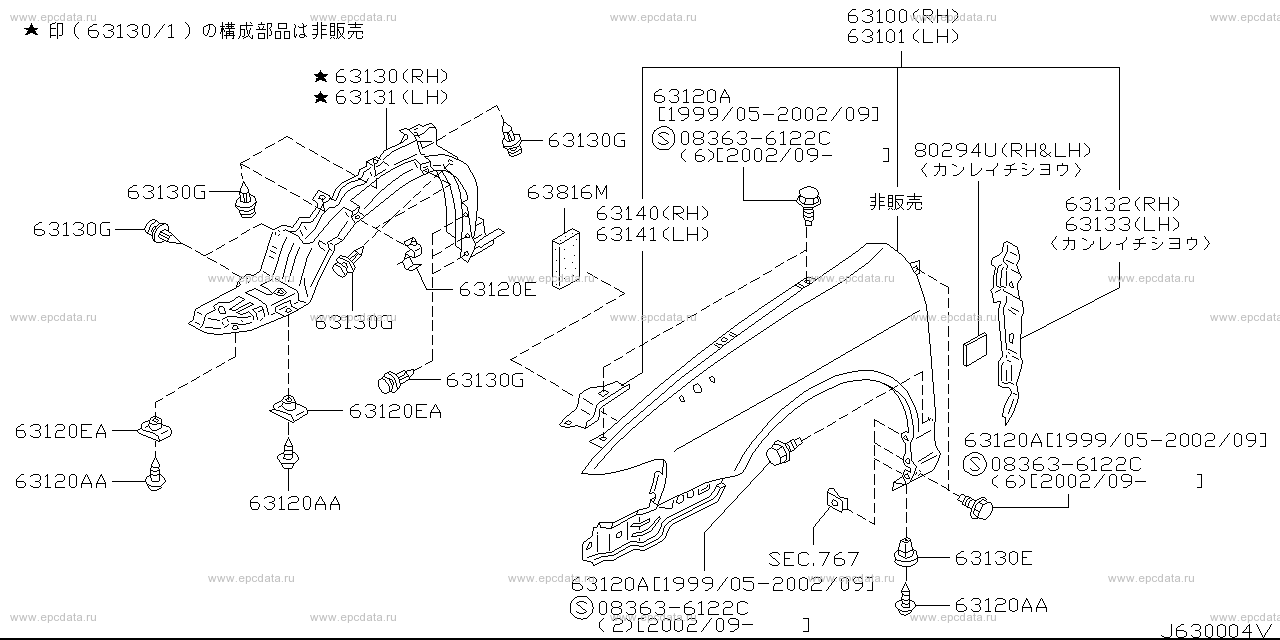

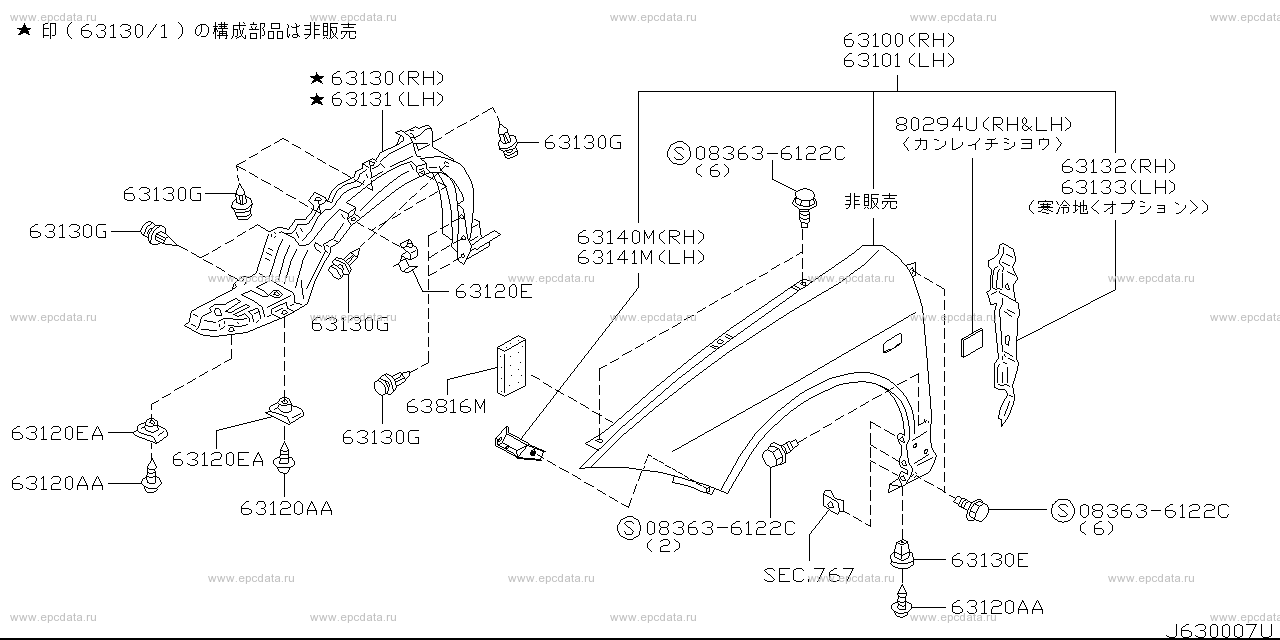

630 - front fender & fitting (body) for Nissan Wingroad / AD Wagon WFY11

	Frame / Series WFY11 / Y11 body W (wagon ) engine QG15DE (QG15DE engine ) drive 2WD Manufacture period 10.2001 - 12.2005 grade S (S grade ) transmission AT.F4 (AT floor 4-speed ) spec AERO (aero spec )

---

Applies for models	Manufacture period	Spec
W +V	10.2001 - 08.2002	WAG

Open full screen picture Up to the top

63100 - fender, front RH 63101 - fender, front LH 63120A - screw 63120AA - screw 63120E - clip 63120EA - clip 63130 - protector, front fender RH 63130E - grommet, screw 63130G - clip 63131 - protector, front fender LH 63132 - baffle, front fender RH 63133 - baffle, front fender LH 63140M - stay, front fender RH 63141M - stay, front fender LH 63816M - spacer, front fender LH 80294U - insulator, baffle front fender

---

Applies for models	Manufacture period	Spec
W +V	10.2001 - 11.2002	VAN

Open full screen picture Up to the top

083636122C 63100 - fender, front RH 63101 - fender, front LH 63120A - screw 63120AA - screw 63120E - clip 63120EA - clip 63130 - protector, front fender RH 63130E - grommet, screw 63130G - clip 63131 - protector, front fender LH 63132 - baffle, front fender RH 63133 - baffle, front fender LH 63140 - bracket, front fender RH 63141 - bracket, front fender LH 63816M - spacer, front fender LH 80294U - insulator, baffle front fender

---

Applies for models	Manufacture period	Spec
W +V	08.2002 - 11.2002	WAG

Open full screen picture Up to the top

083636122C 63100 - fender, front RH 63101 - fender, front LH 63120A - screw 63120AA - screw 63120E - clip 63120EA - clip 63130 - protector, front fender RH 63130E - grommet, screw 63130G - clip 63131 - protector, front fender LH 63132 - baffle, front fender RH 63133 - baffle, front fender LH 63140M - stay, front fender RH 63141M - stay, front fender LH 63816M - spacer, front fender LH 80294U - insulator, baffle front fender

---

Applies for models	Manufacture period	Spec
W +V	11.2002 - 10.2003	VAN
W +V	10.2003 - 05.2004	VAN

Open full screen picture Up to the top

083636122C 63100 - fender, front RH 63101 - fender, front LH 63120AA - screw 63120E - clip 63120EA - clip 63130 - protector, front fender RH 63130E - grommet, screw 63130G - clip 63131 - protector, front fender LH 63132 - baffle, front fender RH 63133 - baffle, front fender LH 63140 - bracket, front fender RH 63141 - bracket, front fender LH 63816M - spacer, front fender LH 80294U - insulator, baffle front fender

---

Applies for models	Manufacture period	Spec
W +V	11.2002 - 10.2003	WAG
W +V	10.2003 - 05.2004	WAG
W	05.2004 - 12.2005	WAG

Open full screen picture Up to the top

083636122C 63100 - fender, front RH 63101 - fender, front LH 63120AA - screw 63120E - clip 63120EA - clip 63130 - protector, front fender RH 63130E - grommet, screw 63130G - clip 63131 - protector, front fender LH 63132 - baffle, front fender RH 63133 - baffle, front fender LH 63140M - stay, front fender RH 63141M - stay, front fender LH 63816M - spacer, front fender LH 80294U - insulator, baffle front fender

Wingroad / AD Wagon WFY11
