625 - front apron & radiator core support (body) for Nissan Wingroad / AD Wagon WFY11

	Frame / Series WFY11 / Y11 body W (wagon ) engine QG15DE (QG15DE engine ) drive 2WD Manufacture period 10.2001 - 12.2005 grade S (S grade ) transmission AT.F4 (AT floor 4-speed ) spec AERO (aero spec )

---

Applies for models	Manufacture period	Spec
W +V	10.2001 - 11.2002	QG13DE+QG15DE+QG18DE+QG18DEN+YD22D
W +V	11.2002 - 10.2003	QG13DE+QG15DE+QG18DE+QG18DEN+YD22D
W +V	10.2003 - 05.2004	QG13DE+QG15DE+QG18DE+QG18DEN
W.(QG15DE+QG18DE) +V	05.2004 - 12.2005	QG13DE+QG15DE+QG18DE+QG18DEN

Open full screen picture Up to the top

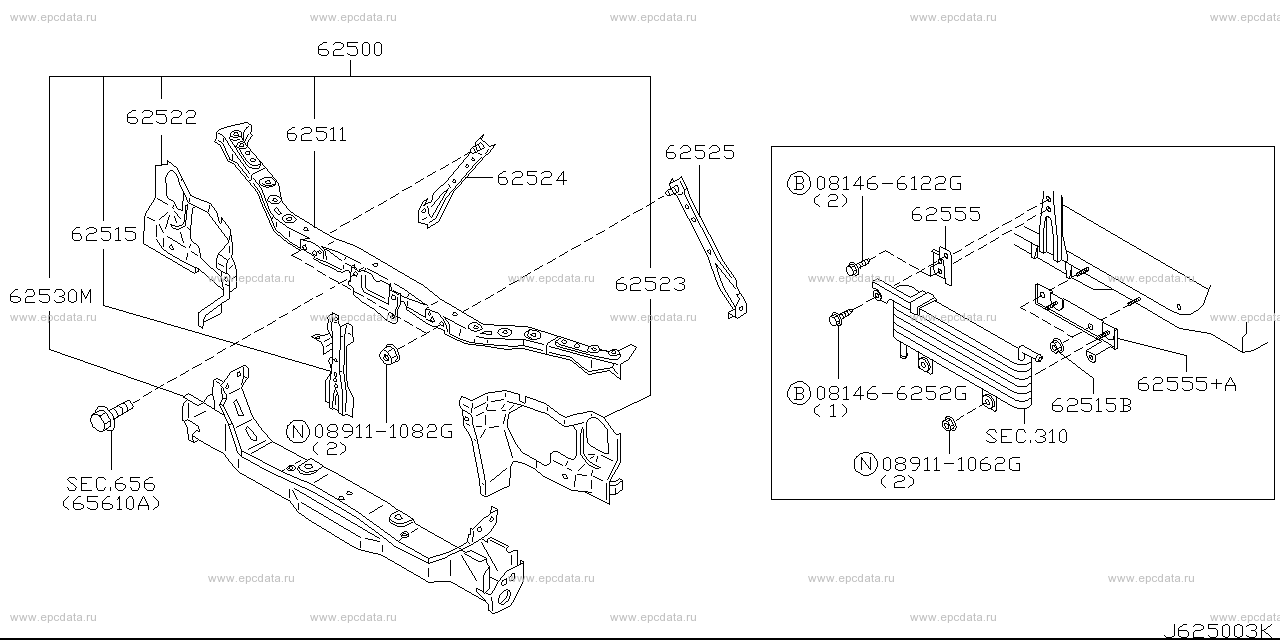

089111082G 62500 - support assembly, radiator core 62511 - support, radiator core upper 62515 - stay, hood lock 62522 - support, radiator core side RH 62523 - support, radiator core side LH 62524 - reinforcement, radiator core side RH 62525 - reinforcement, radiator core side LH 62530M - support, radiator core lower

---

Applies for models	Manufacture period	Spec
W +V	10.2001 - 11.2002	QR20DE+SR20VE
W +V	11.2002 - 10.2003	QR20DE
W +V	10.2003 - 05.2004	QR20DE

Open full screen picture Up to the top

081466122G 081466252G 089111062G 089111082G 62500 - support assembly, radiator core 62511 - support, radiator core upper 62515 - stay, hood lock 62515B - nut 62522 - support, radiator core side RH 62523 - support, radiator core side LH 62524 - reinforcement, radiator core side RH 62525 - reinforcement, radiator core side LH 62530M - support, radiator core lower 62555 - bracket assembly oil cooler mounting lower 62555+A - bracket assembly oil cooler mounting lower
