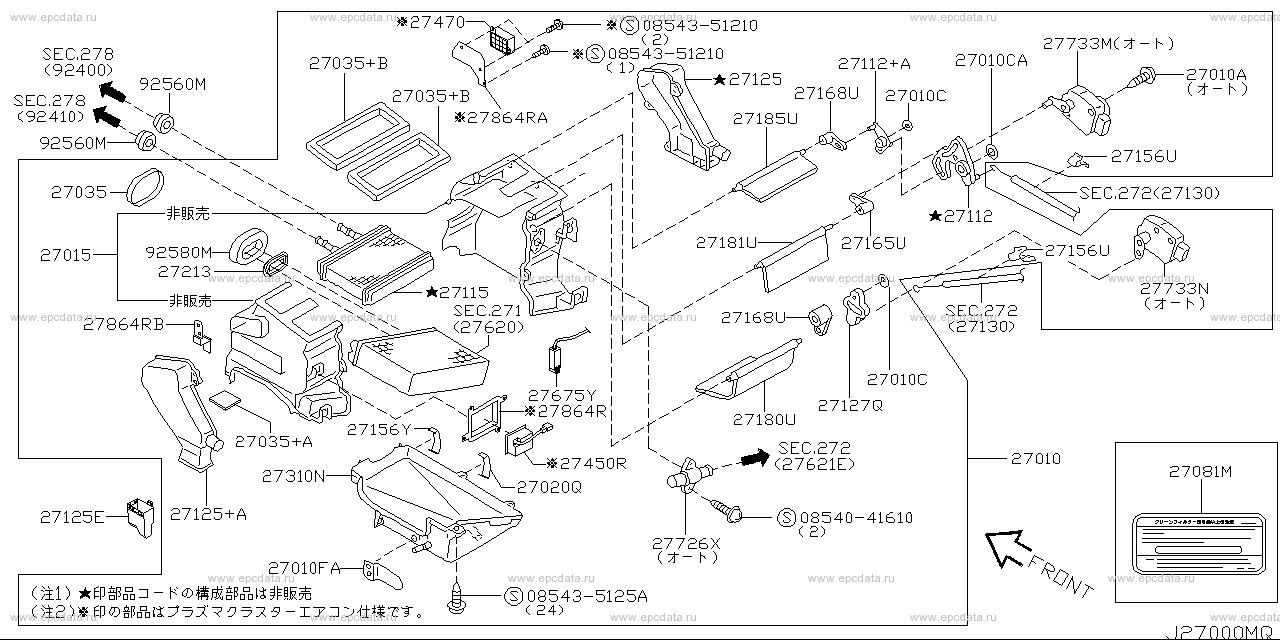

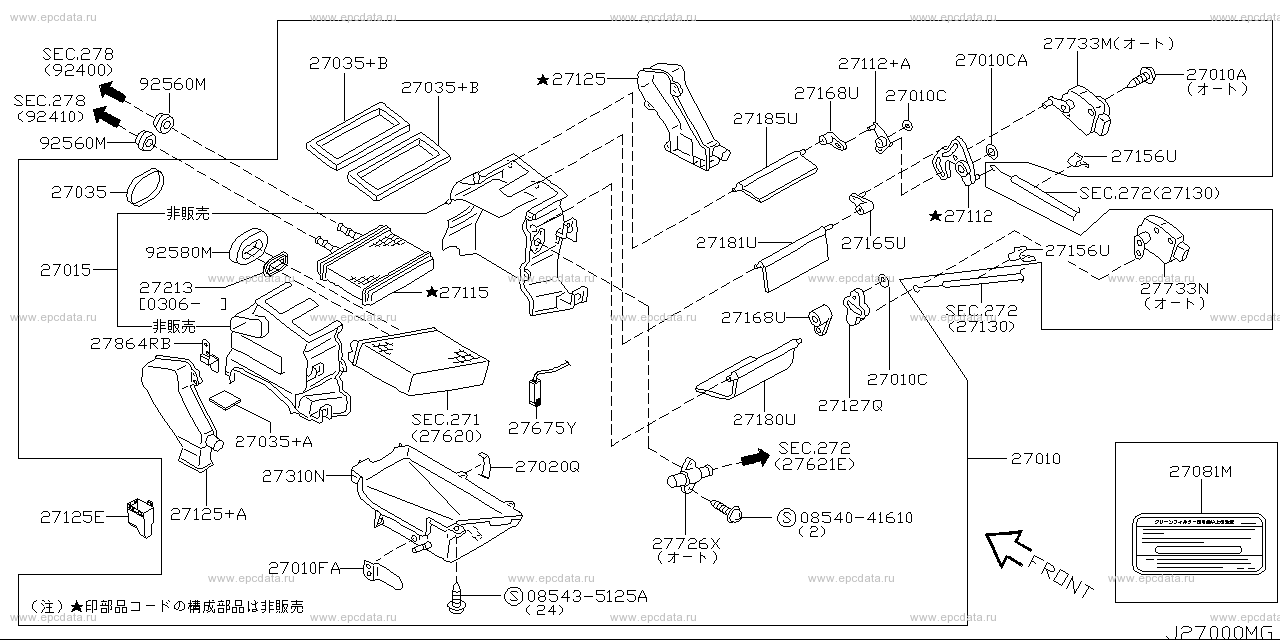

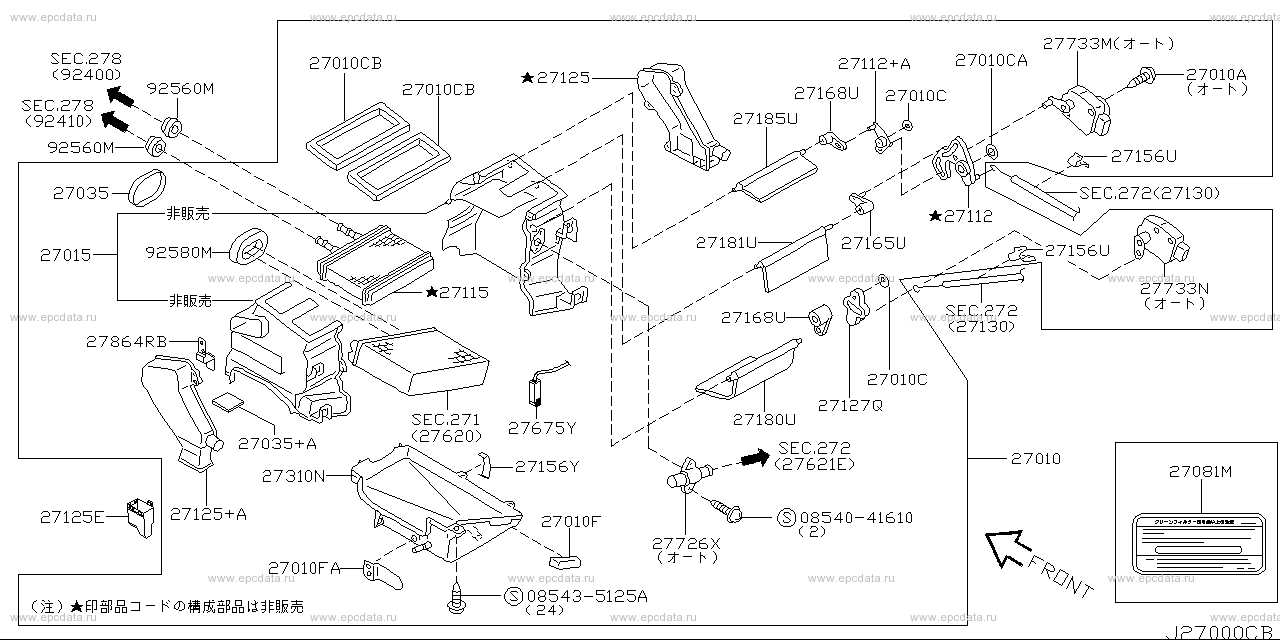

270 - heater & blower unit (Denso) for Nissan Wingroad / AD Wagon WFY11
| |||||||||||||||||||
| Applies for models | Manufacture period | Spec |
|---|---|---|
| W +V | 10.2001 - 08.2002 | front ﾋｰﾀｰ |
| 0854041610 085435125A 27010 - heating unit assembly, front 27010A - screw 27010C - washer 27010CA - washer 27010CB - washer 27010F - bracket, front heater unit 27010FA - bracket, front heater unit 27015 - case assembly, front heater 27035 - seal 27035+A - seal 27081M - label, clean filter 27112 - link assembly, side 27112+A - link assembly, side 27115 - core assembly, front heater 27125 - duct assembly, foot 27125+A - duct assembly, foot 27125E - duct, foot 27127Q - link, air door NO 4 27156U - lever, air mix door 27156Y - clip 27165U - lever, vent 27168U - lever, foot 27180U - door, front heater 27181U - door assembly, vent NO.1 27185U - door assembly, foot 27310N - case, heater 27675Y - amplifier assembly, thermo 27726X - aspirator 27733M - actuator assembly, mode 27733N - actuator assembly, air mix 27864RB - bracket 92560M - grommet rubber 92580M - grommet, heater |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| W +V | 10.2001 - 11.2002 | ﾌﾞﾛｱｰ ﾕﾆｯﾄ |
| W +V | 11.2002 - 10.2003 | ﾌﾞﾛｱｰ ﾕﾆｯﾄ |

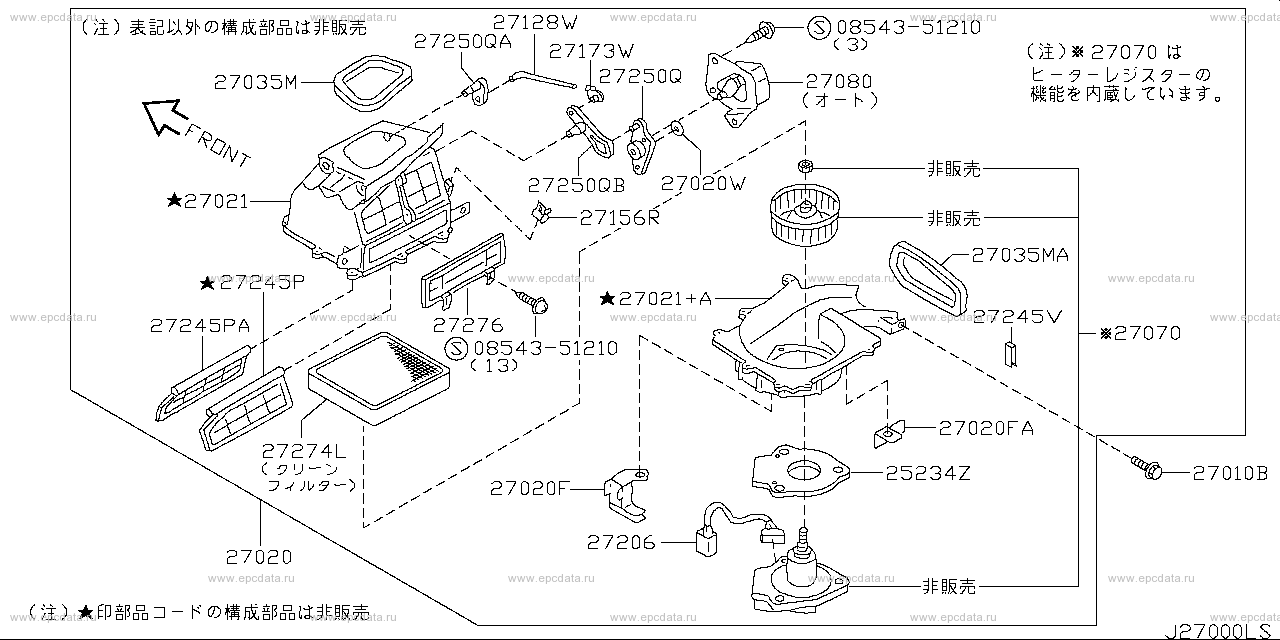

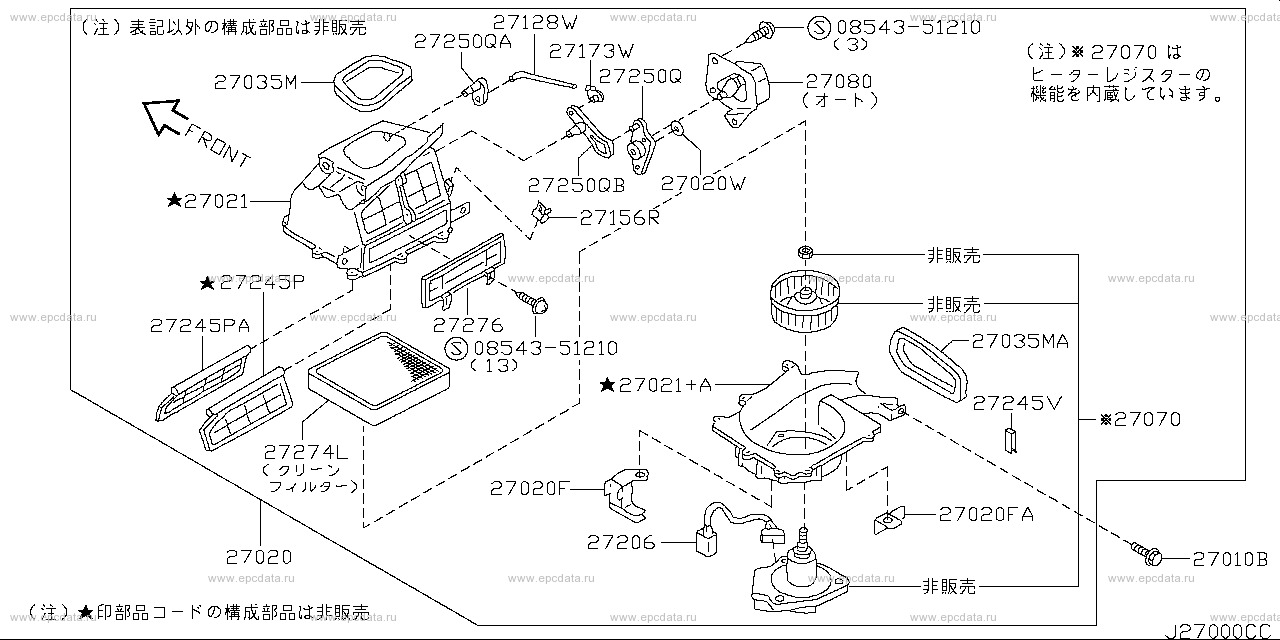

| 0854351210 27010B - screw 27020 - blower assembly, front 27020F - bracket, blower 27020FA - bracket, blower 27020W - washer, plain 27021 - case, blower 27021+A - case, blower 27035M - seal 27035MA - seal 27070 - motor & fan assembly, blower 27080 - actuator, air intake 27128W - rod, air door NO 6 27156R - lever, air mix door 27173W - holder, rod 27206 - harness assembly, sub 27245P - door, intake blower front 27245PA - door, intake blower front 27245V - clip 27250Q - lever 27250QA - lever 27250QB - lever 27274L - filter kit, air air conditioner 27276 - cover, filter |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| W +V | 08.2002 - 11.2002 | front ﾋｰﾀｰ |
| 0854041610 085435125A 27010 - heating unit assembly, front 27010A - screw 27010C - washer 27010CA - washer 27010FA - bracket, front heater unit 27015 - case assembly, front heater 27020Q - clip 27035 - seal 27035+A - seal 27035+B - seal 27081M - label, clean filter 27112 - link assembly, side 27112+A - link assembly, side 27115 - core assembly, front heater 27125 - duct assembly, foot 27125+A - duct assembly, foot 27125E - duct, foot 27127Q - link, air door NO 4 27156U - lever, air mix door 27165U - lever, vent 27168U - lever, foot 27180U - door, front heater 27181U - door assembly, vent NO.1 27185U - door assembly, foot 27310N - case, heater 27675Y - amplifier assembly, thermo 27726X - aspirator 27733M - actuator assembly, mode 27733N - actuator assembly, air mix 27864RB - bracket 92560M - grommet rubber 92580M - grommet, heater |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| W +V | 10.2003 - 05.2004 | front ﾋｰﾀｰ |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| W +V | 10.2003 - 12.2005 | ﾌﾞﾛｱｰ ﾕﾆｯﾄ |
| 0854351210 25234Z - bracket, electric unit 27010B - screw 27020 - blower assembly, front 27020F - bracket, blower 27020FA - bracket, blower 27020W - washer, plain 27021 - case, blower 27021+A - case, blower 27035M - seal 27035MA - seal 27070 - motor & fan assembly, blower 27080 - actuator, air intake 27128W - rod, air door NO 6 27156R - lever, air mix door 27173W - holder, rod 27206 - harness assembly, sub 27245P - door, intake blower front 27245PA - door, intake blower front 27245V - clip 27250Q - lever 27250QA - lever 27250QB - lever 27274L - filter kit, air air conditioner 27276 - cover, filter |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| W +V | 11.2002 - 10.2003 | front ﾋｰﾀｰ |
| 0854041610 085435125A 27010 - heating unit assembly, front 27010A - screw 27010C - washer 27010CA - washer 27010FA - bracket, front heater unit 27015 - case assembly, front heater 27020Q - clip 27035 - seal 27035+A - seal 27035+B - seal 27081M - label, clean filter 27112 - link assembly, side 27112+A - link assembly, side 27115 - core assembly, front heater 27125 - duct assembly, foot 27125+A - duct assembly, foot 27125E - duct, foot 27127Q - link, air door NO 4 27156U - lever, air mix door 27165U - lever, vent 27168U - lever, foot 27180U - door, front heater 27181U - door assembly, vent NO.1 27185U - door assembly, foot 27213 - cover, heater 27310N - case, heater 27675Y - amplifier assembly, thermo 27726X - aspirator 27733M - actuator assembly, mode 27733N - actuator assembly, air mix 27864RB - bracket 92560M - grommet rubber 92580M - grommet, heater |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| W +V | 05.2004 - 12.2005 | front ﾋｰﾀｰ |
| 0854041610 0854351210 085435125A 27010 - heating unit assembly, front 27010A - screw 27010C - washer 27010CA - washer 27010FA - bracket, front heater unit 27015 - case assembly, front heater 27020Q - clip 27035 - seal 27035+A - seal 27035+B - seal 27081M - label, clean filter 27112 - link assembly, side 27112+A - link assembly, side 27115 - core assembly, front heater 27125 - duct assembly, foot 27125+A - duct assembly, foot 27125E - duct, foot 27127Q - link, air door NO 4 27156U - lever, air mix door 27156Y - clip 27165U - lever, vent 27168U - lever, foot 27180U - door, front heater 27181U - door assembly, vent NO.1 27185U - door assembly, foot 27213 - cover, heater 27310N - case, heater 27450R - purifier complete, air 27470 - control assembly, air purifier 27675Y - amplifier assembly, thermo 27726X - aspirator 27733M - actuator assembly, mode 27733N - actuator assembly, air mix 27864R - bracket 27864RA - bracket 27864RB - bracket 92560M - grommet rubber 92580M - grommet, heater |
