G35 - rack, carrier for Nissan Wingroad / AD Wagon WFY11

	Frame / Series WFY11 / Y11 body W (wagon ) engine QG15DE (QG15DE engine ) drive 2WD Manufacture period 10.2001 - 12.2005 grade S (S grade ) transmission AT.F4 (AT floor 4-speed ) spec BASIC (standard spec )

---

Applies for models	Manufacture period	Spec
W +V	05.1999 - ...	ビジネスラック

Open full screen picture Up to the top

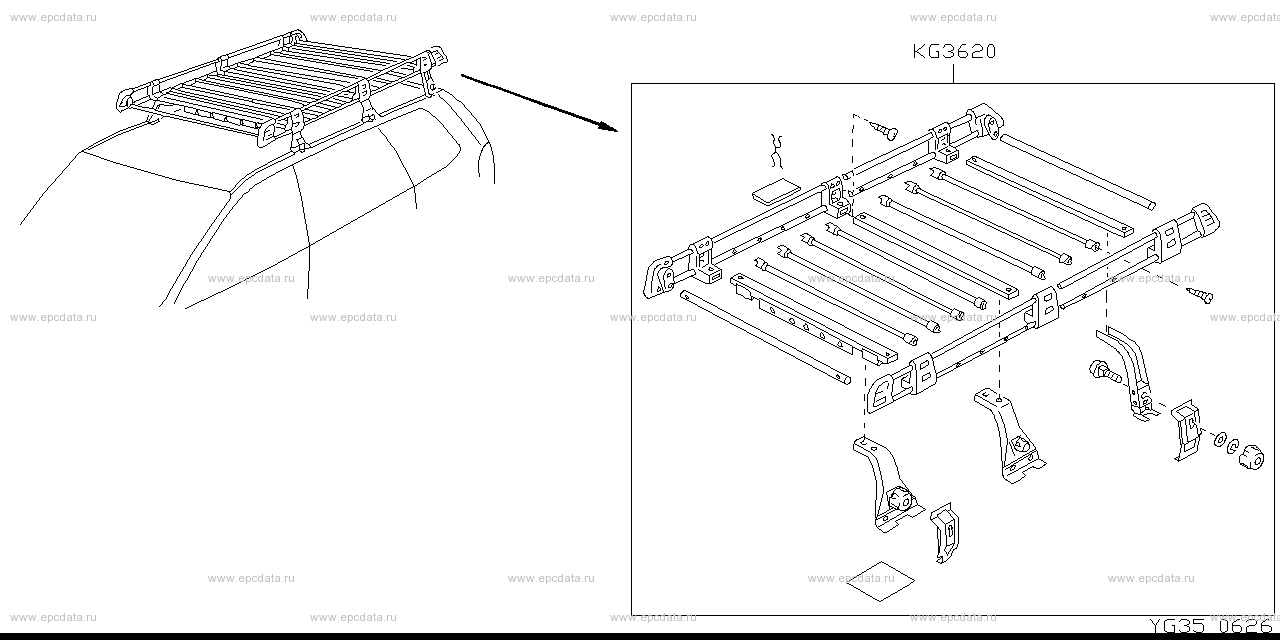

KG3620 - roof rack kit

---

Applies for models	Manufacture period	Spec
W +V	05.1999 - ...	NAVANｼｽﾃﾑｷｬﾘｱ ﾙｰﾌｵﾝﾀｲﾌﾟ

Open full screen picture Up to the top

KG3500 - base rack kit KG3505 - base guard film, rack KG3515 - hook base, rack KG3529 - slider base, rack KG3601N - cross bar KG3603N - end cap bar rack KG3606N - marking seal, rack NAVAN

---

Applies for models	Manufacture period	Spec
W +V	05.1999 - ...	ｎａｖａｎスキーアタッチメント

Open full screen picture Up to the top

KG3531N - holder ski carrier 4 NAVAN KG3532N - holder ski carrier 2 NAVAN KG3534N - band, ski carrier NAVAN KG3603N - end cap bar rack

---

Applies for models	Manufacture period	Spec
W +V	05.1999 - ...	NAVANｸｯｼｮﾝﾊﾟｯﾄﾞｾｯﾄ､ﾏﾙﾁﾎﾙﾀﾞｰ

Open full screen picture Up to the top

KG3533N - holder multi, carrier NAVAN KG3534N - band, ski carrier NAVAN KG3660N - surf board carrier kit NAVAN KG3821A - pad, cushion

---

Applies for models	Manufacture period	Spec
W +V	05.1999 - ...	NAVANｻｲｸﾙｱﾀｯﾁﾒﾝﾄ ｾｲﾘﾂﾀｲﾌﾟ

Open full screen picture Up to the top

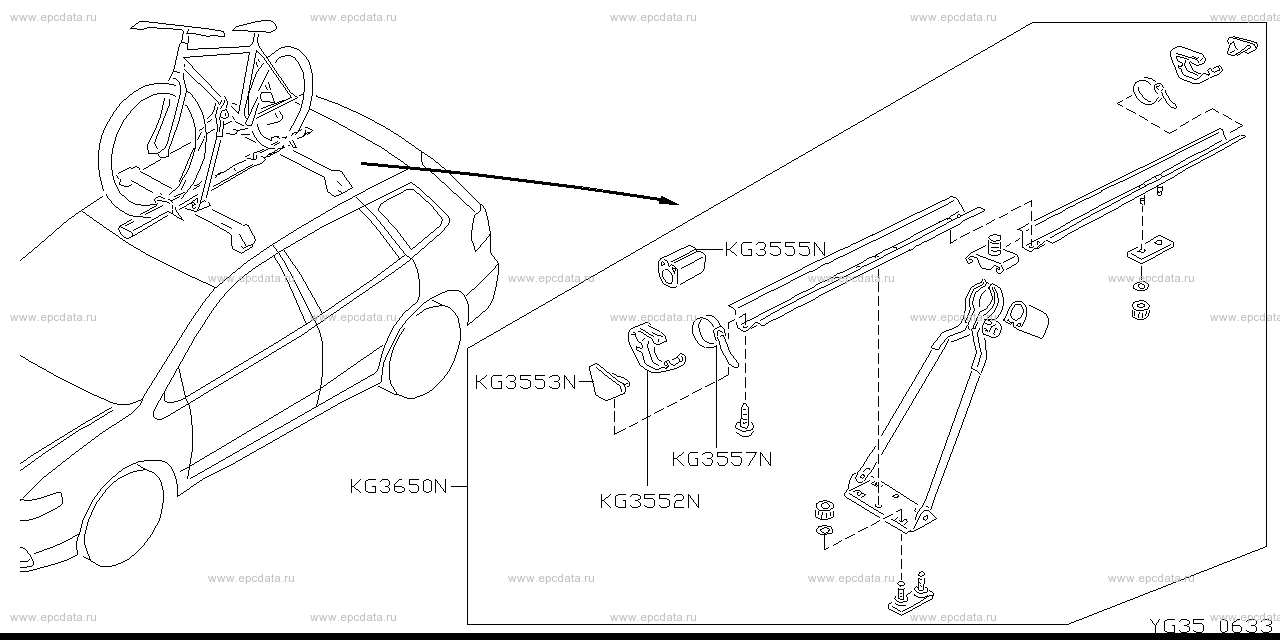

KG3552N - holder wheel NAVAN KG3553N - end cap, cycle NAVAN KG3555N - pad wheel NAVAN KG3557N - holder belt wheel NAVAN KG3650N - cycle carrier kit NAVAN

---

Applies for models	Manufacture period	Spec
W +V	05.1999 - ...	NAVANｻｲｸﾙｱﾀｯﾁﾒﾝﾄ ﾌｫｰｸﾏｳﾝﾄﾀｲﾌﾟ

Open full screen picture Up to the top

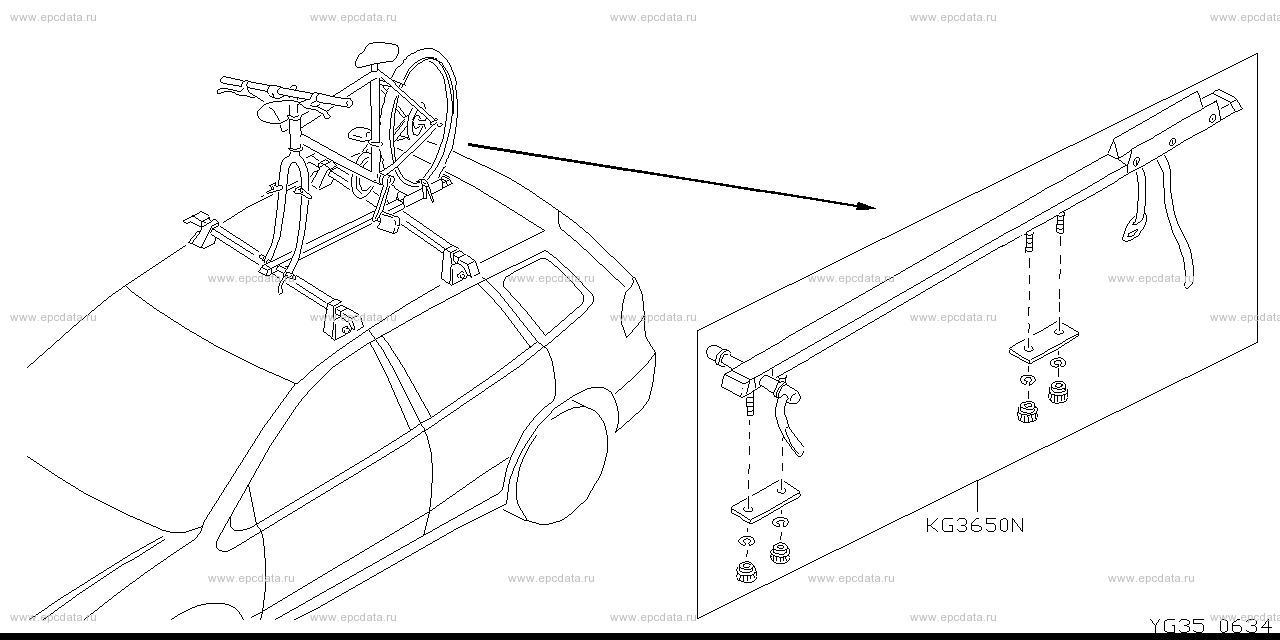

KG3650N - cycle carrier kit NAVAN

---

Applies for models	Manufacture period	Spec
W +V	05.1999 - ...	NAVANｻｲｸﾙｱﾀｯﾁﾒﾝﾄ ﾄｳﾘﾂﾀｲﾌﾟ

Open full screen picture Up to the top

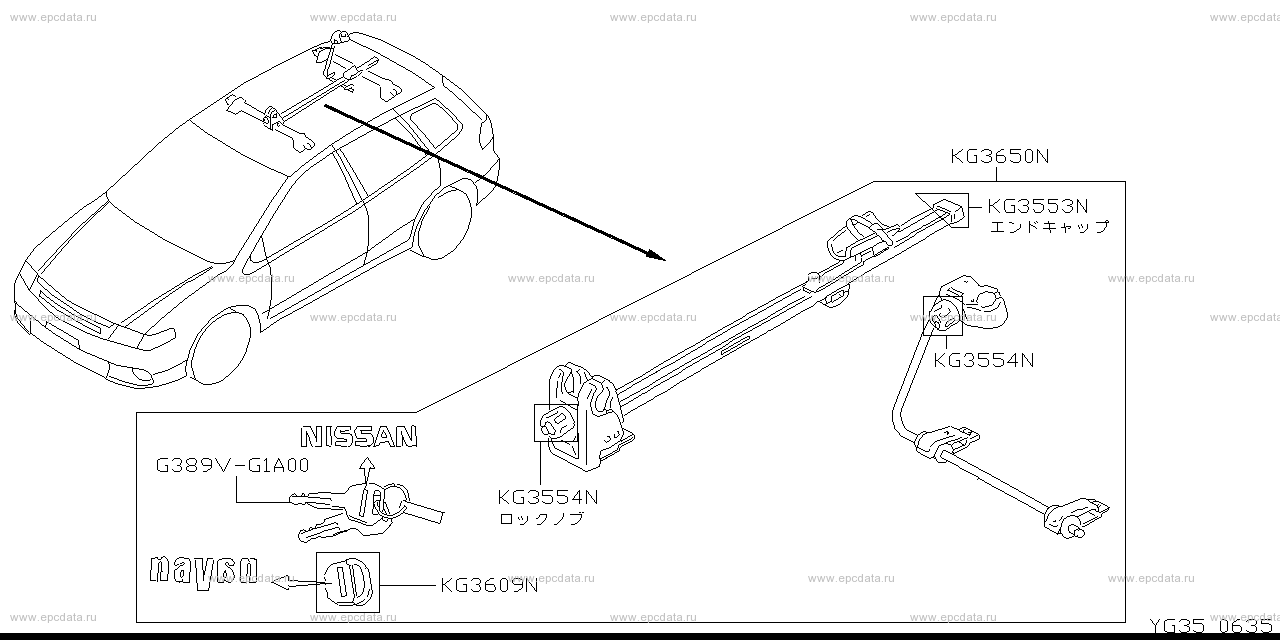

KG3553N - end cap, cycle NAVAN KG3554N - lock bolt, cycle NAVAN KG3609N - key cover NAVAN KG3650N - cycle carrier kit NAVAN

---

Applies for models	Manufacture period	Spec
W +V	05.1999 - ...	NAVANﾙｰﾌﾗｯｸｱﾀｯﾁﾒﾝﾄ ｴｱﾛﾀｲﾌﾟ

Open full screen picture Up to the top

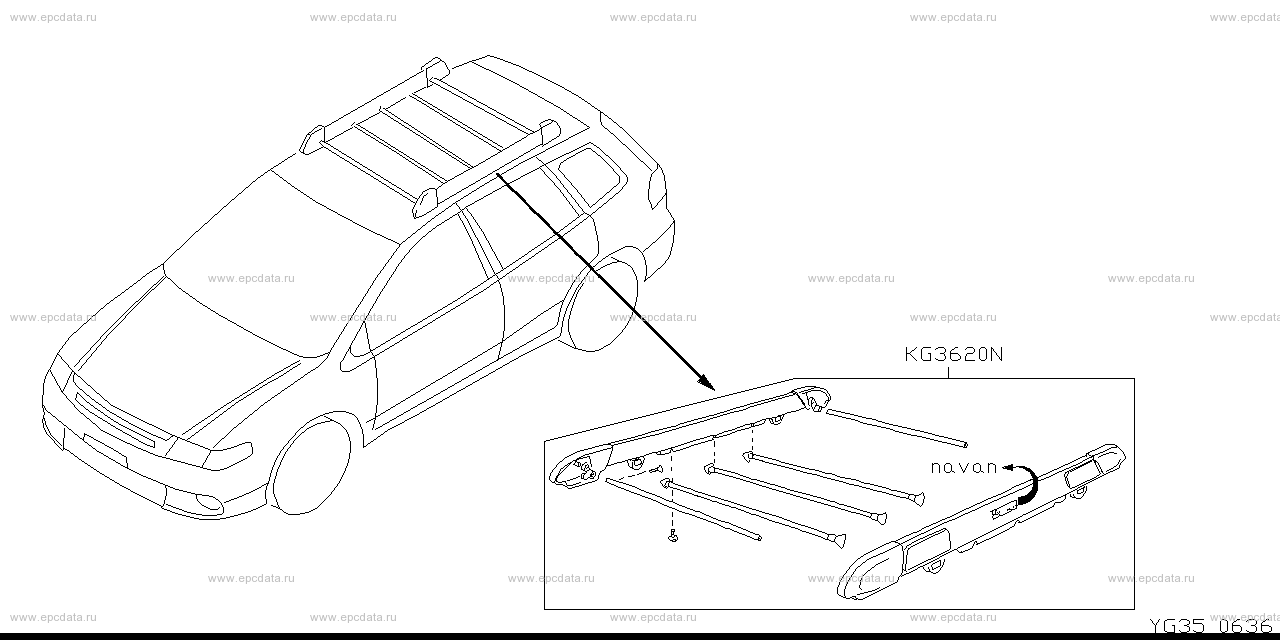

KG3620N - roof carrier kit NAVAN

---

Applies for models	Manufacture period	Spec
W +V	05.1999 - ...	NAVANﾙｰﾌﾗｯｸｱﾀｯﾁﾒﾝﾄ ｽﾁｰﾙﾊﾟｲﾌﾟﾀｲﾌﾟ､ｱﾙﾐﾀｲﾌﾟ

Open full screen picture Up to the top

KG3620N - roof carrier kit NAVAN

---

Applies for models	Manufacture period	Spec
W +V	05.1999 - ...	NAVANｽｷｰ･ｽﾉｰﾎﾞｰﾄﾞｱﾀｯﾁﾒﾝﾄ

Open full screen picture Up to the top

KG3532N - holder ski carrier 2 NAVAN KG3534N - band, ski carrier NAVAN

---

Applies for models	Manufacture period	Spec
W +V	05.1999 - ...	NAVANﾈｯﾄ､ｺﾃｲﾍﾞﾙﾄ､ﾛｯｸﾎﾞﾙﾄ､ﾛｯｸﾅｯﾄ

Open full screen picture Up to the top

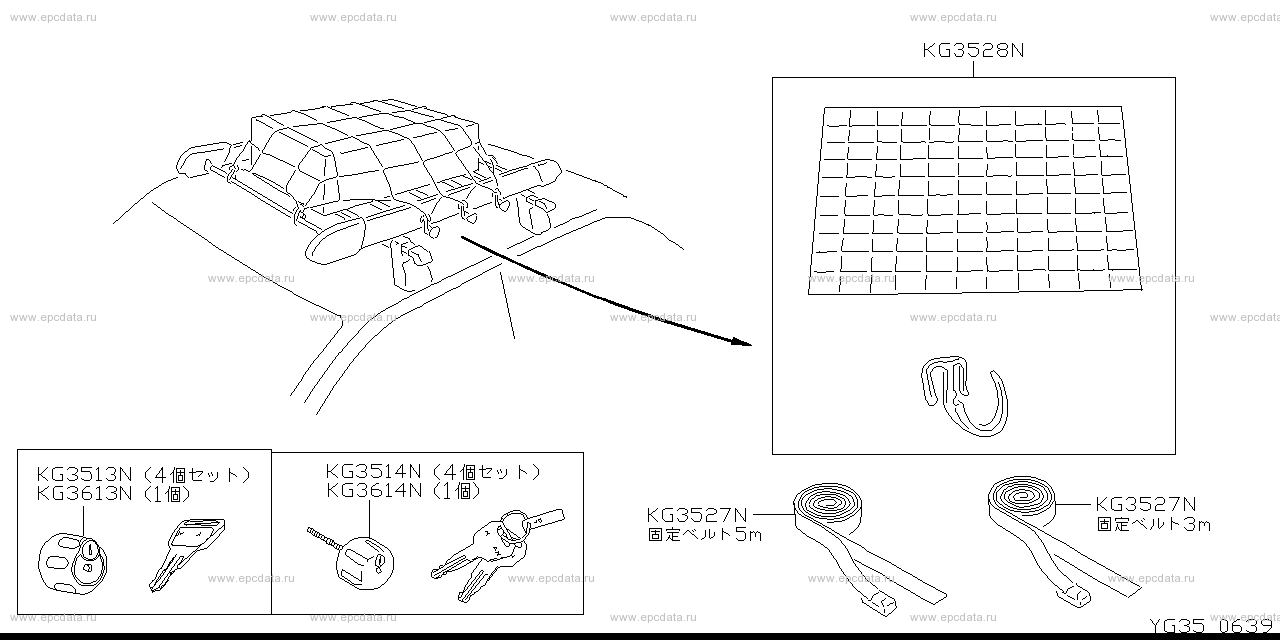

KG3513N - lock nut set NAVAN KG3514N - lock bolt set NAVAN KG3527N - belt holder NAVAN KG3528N - roof rack net NAVAN KG3613N - lock nut NAVAN KG3614N - lock bolt NAVAN

---

Applies for models	Manufacture period	Spec
W +V	11.2000 - ...	ｽｷｰ･ｽﾉｰﾎﾞｰﾄﾞｱﾀｯﾁﾒﾝﾄ ｱﾙﾐﾌﾗｯﾄﾀｲﾌﾟ

Open full screen picture Up to the top

KG3532N - holder ski carrier 2 NAVAN KG3538 - rubber pad KG3608N - key plate NAVAN

---

Applies for models	Manufacture period	Spec
W +V	11.2000 - ...	ｽｷｰ･ｽﾉｰﾎﾞｰﾄﾞｱﾀｯﾁﾒﾝﾄ ｱﾙﾐｻｲﾄﾞﾏｳﾝﾄﾀｲﾌﾟ

Open full screen picture Up to the top

KG3532N - holder ski carrier 2 NAVAN KG3538 - rubber pad KG3608N - key plate NAVAN

Wingroad / AD Wagon WFY11
