B64 - other lamps for Nissan Wingroad / AD Wagon WFY11

	Frame / Series WFY11 / Y11 body W (wagon ) engine QG15DE (QG15DE engine ) drive 2WD Manufacture period 10.2001 - 12.2005 grade S (S grade ) transmission AT.F4 (AT floor 4-speed ) spec BASIC (standard spec )

---

Applies for models	Manufacture period	Spec
W +V	05.1999 - ...	マルチランプ

Open full screen picture Up to the top

KB6410 - room lamp,FR KB6460 - personal rear lamp KB6716 - ﾊﾞﾙﾌﾞ

---

Applies for models	Manufacture period	Spec
W +V	05.1999 - ...	マップランプ

Open full screen picture Up to the top

K26267 - ﾊﾞﾙﾌﾞ KB6430 - map lamp

---

Applies for models	Manufacture period	Spec
W +V	05.1999 - ...	グローブボックス照明

Open full screen picture Up to the top

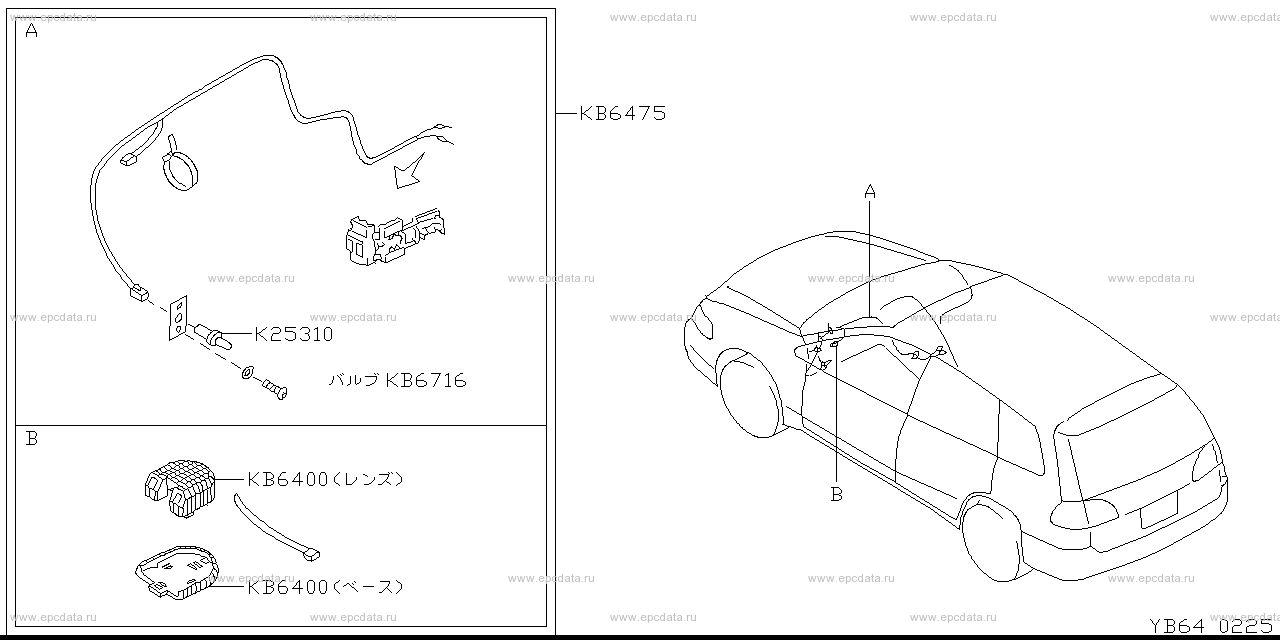

K25310 - switch assembly, glove box lamp KB6400 - footwell lamp KB6475 - glove box lamp KB6716 - ﾊﾞﾙﾌﾞ

---

Applies for models	Manufacture period	Spec
W +V	05.1999 - ...	イグニッションキー 照明

Open full screen picture Up to the top

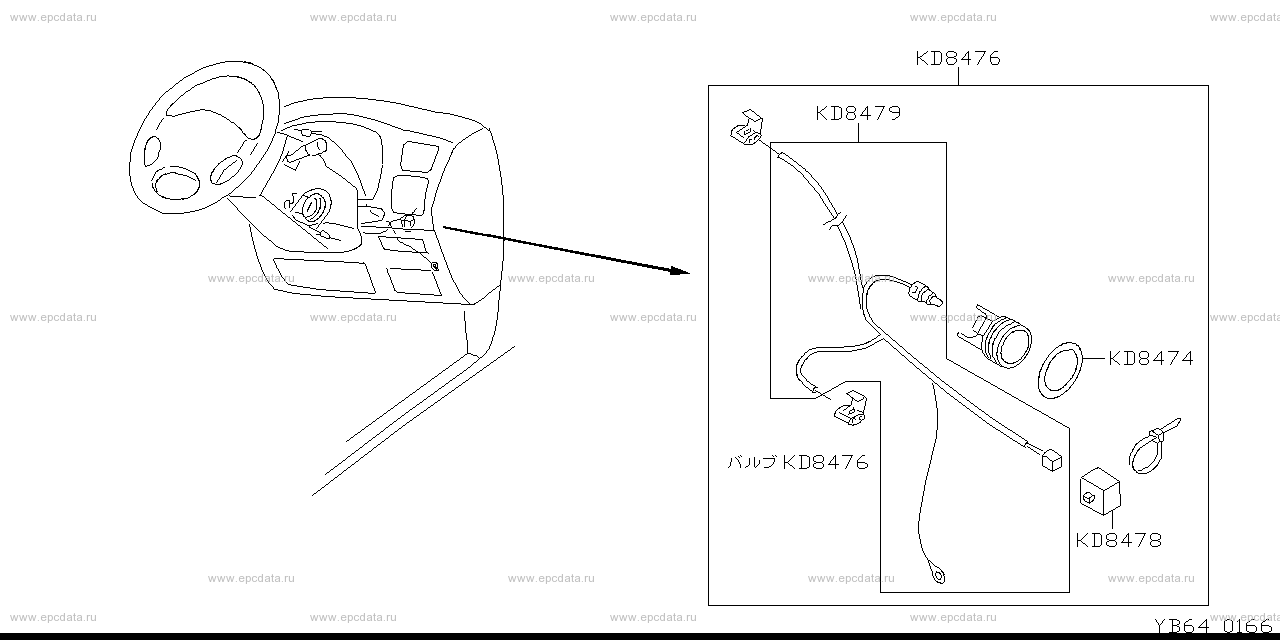

KD8474 - ring light key hole KD8476 - lamp ignition key KD8478 - timer, ignition key KD8479 - harness ignition key

---

Applies for models	Manufacture period	Spec
W	10.2001 - ...	エントリーイルミネーション２

Open full screen picture Up to the top

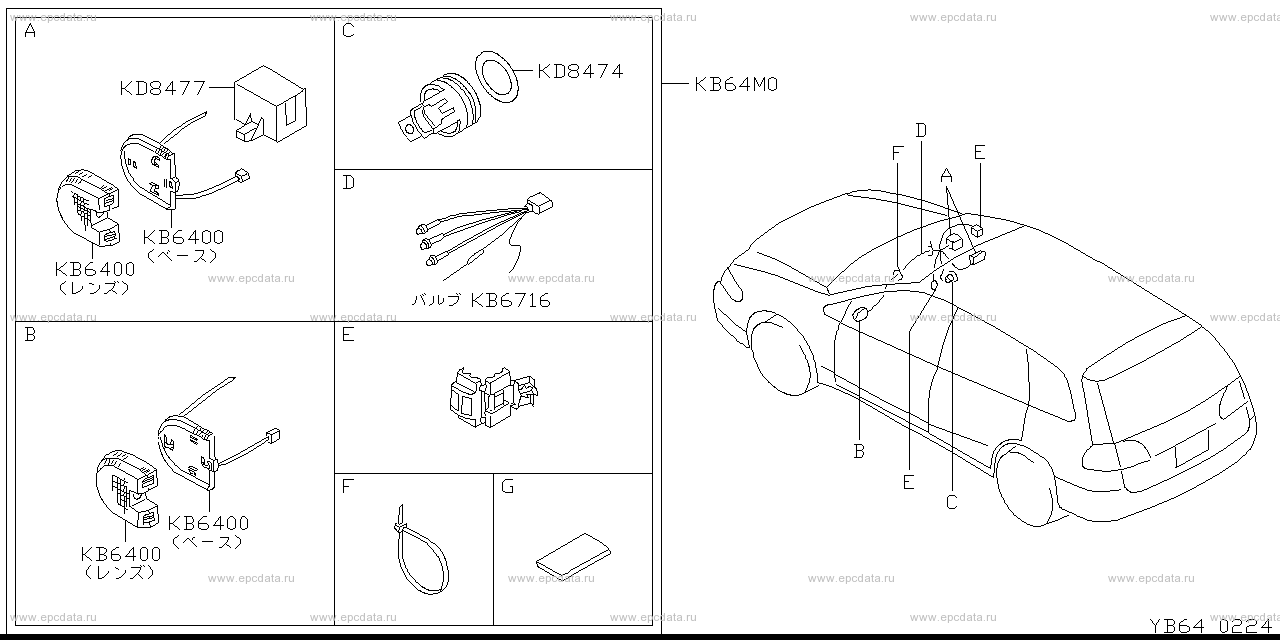

KB6400 - footwell lamp KB64M0 - entry illumination KB6716 - ﾊﾞﾙﾌﾞ KD8474 - ring light key hole KD8477 - timer ignition key

---

Applies for models	Manufacture period	Spec
W	10.2001 - ...	グローブボックス照明２

Open full screen picture Up to the top

K25310 - switch assembly, glove box lamp KB6400 - footwell lamp KB6475 - glove box lamp KB6716 - ﾊﾞﾙﾌﾞ

---

Applies for models	Manufacture period	Spec
W	10.2001 - ...	ムーディーイルミネーション

Open full screen picture Up to the top

KB6450 - room lamp,RR KB6455 - harness, room lamp RR KB6461 - bulb, personal lamp

---

Applies for models	Manufacture period	Spec
W	10.2003 - ...	フットウェルランプ

Open full screen picture Up to the top

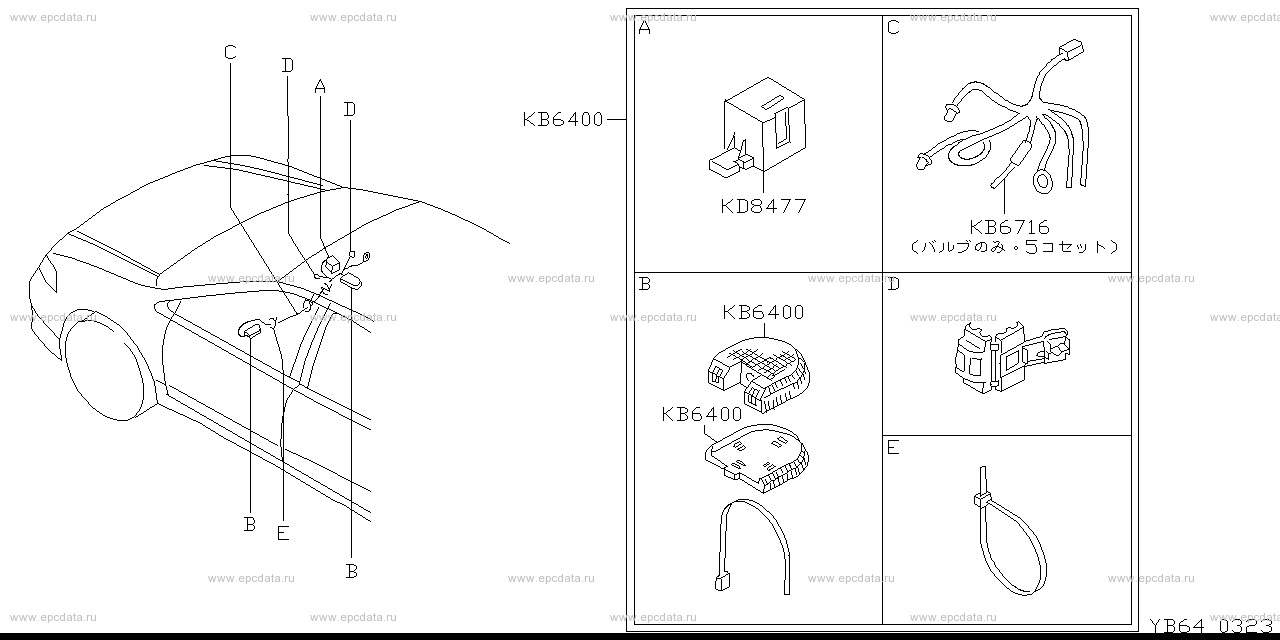

KB6400 - footwell lamp KB6716 - ﾊﾞﾙﾌﾞ KD8477 - timer ignition key

---

Applies for models	Manufacture period	Spec
ALL	05.1999 - ...

Open full screen picture Up to the top

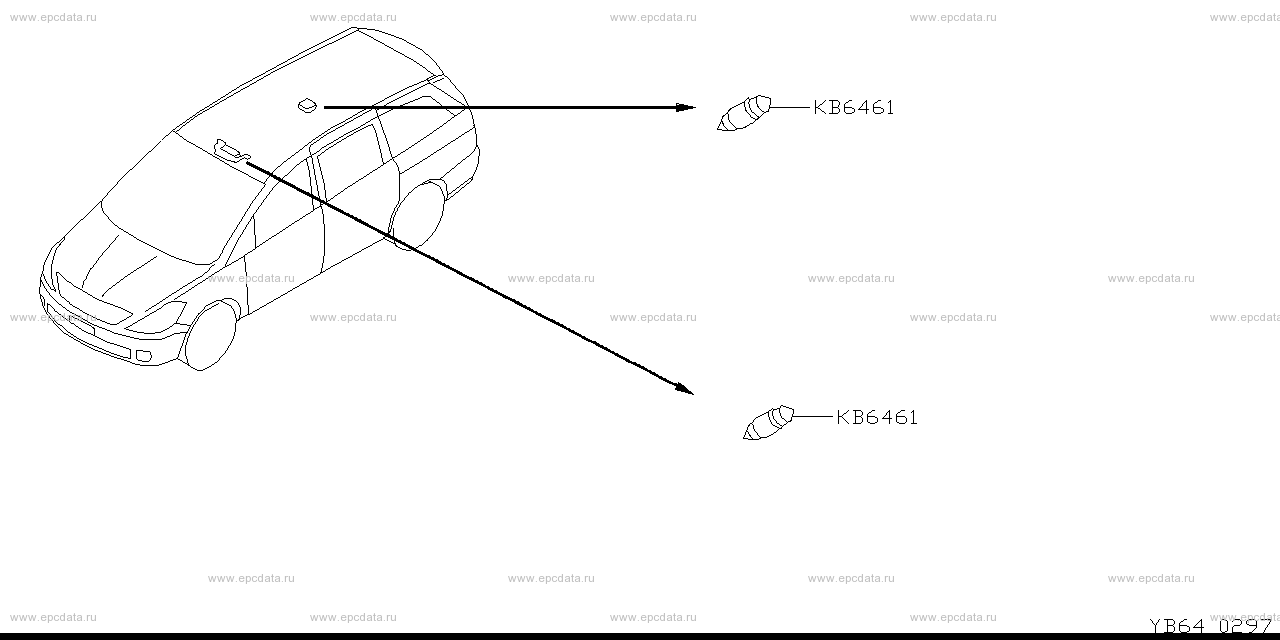

KB6461 - bulb, personal lamp

---

Applies for models	Manufacture period	Spec
ALL	05.1999 - ...

Open full screen picture Up to the top

KB6461 - bulb, personal lamp
