381 - front final drive (unit) for Nissan Wingroad / AD Wagon WFY11

	Frame / Series WFY11 / Y11 body W (wagon ) engine QG15DE (QG15DE engine ) drive 2WD Manufacture period 05.1999 - 10.2001 grade X (X grade ) transmission MT (manual transmission ) spec BASIC (standard spec )

---

Applies for models	Manufacture period	Spec
W.QG15DE.MT +QG13DE.MT	10.2000 - 10.2001

Open full screen picture Up to the top

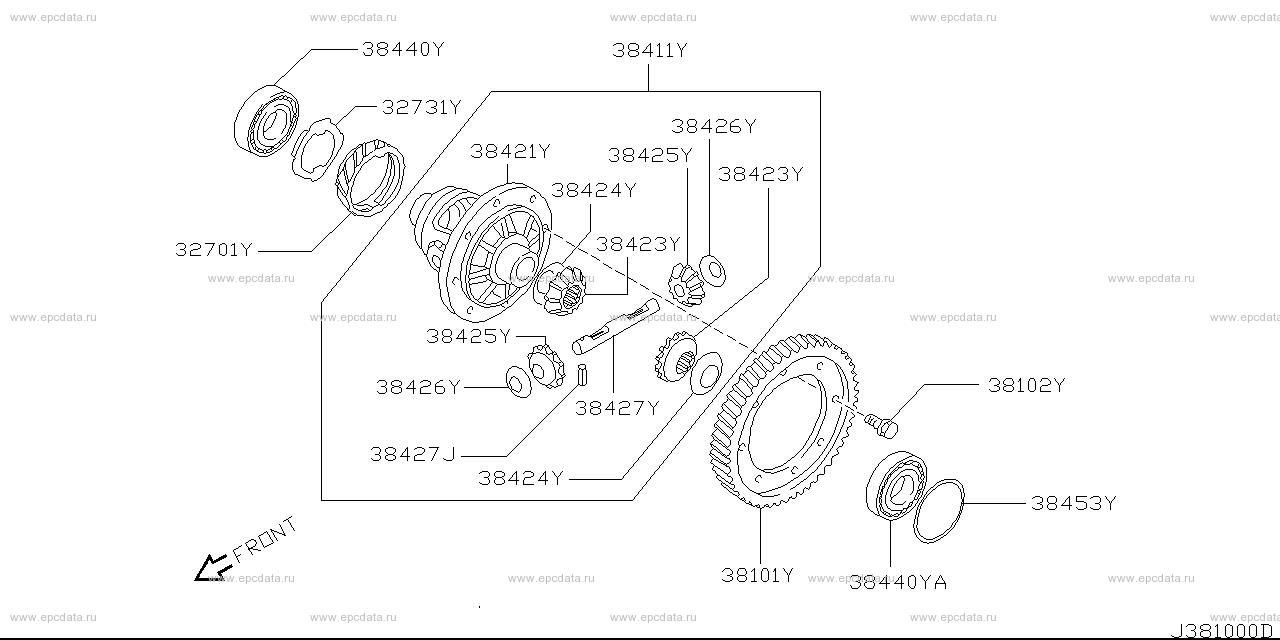

32701Y - gear, drive speedometer 32731Y - stopper, speedometer drive gear 38101Y - gear, final drive 38102Y - bolt, drive gear 38411Y - case complete, differential 38421Y - case, differential 38423Y - gear, side 38424Y - washer, thrust side gear 38425Y - pinion, mate 38426Y - washer, thrust pinion mate 38427J - pin, lock pinion shaft 38427Y - shaft, pinion mate 38440Y - bearing, differential side 38453Y - shim, adjust side bearing

---

Applies for models	Manufacture period	Spec
QG15DE.MT +QG18DE.MT	05.1999 - 10.2000	ビスカス　ＬＳＤ　ナシ　タイプ

Open full screen picture Up to the top

32701Y - gear, drive speedometer 32731Y - stopper, speedometer drive gear 38101Y - gear, final drive 38102Y - bolt, drive gear 38411Y - case complete, differential 38421Y - case, differential 38423Y - gear, side 38424Y - washer, thrust side gear 38425Y - pinion, mate 38426Y - washer, thrust pinion mate 38427J - pin, lock pinion shaft 38427Y - shaft, pinion mate 38440Y - bearing, differential side 38440YA - bearing, differential side 38453Y - shim, adjust side bearing

---

Applies for models	Manufacture period	Spec
*QG15DE.MT	05.1999 - 01.2000	ビスカス　ＬＳＤ　ツキ　タイプ
*QG15DE.MT	01.2000 - 10.2000	ビスカス　ＬＳＤ　ツキ　タイプ

Open full screen picture Up to the top

32701Y - gear, drive speedometer 32731Y - stopper, speedometer drive gear 38101Y - gear, final drive 38102Y - bolt, drive gear 38411Z - case complete, differential viscous 38440Y - bearing, differential side 38440YA - bearing, differential side 38453Y - shim, adjust side bearing

Wingroad / AD Wagon WFY11
