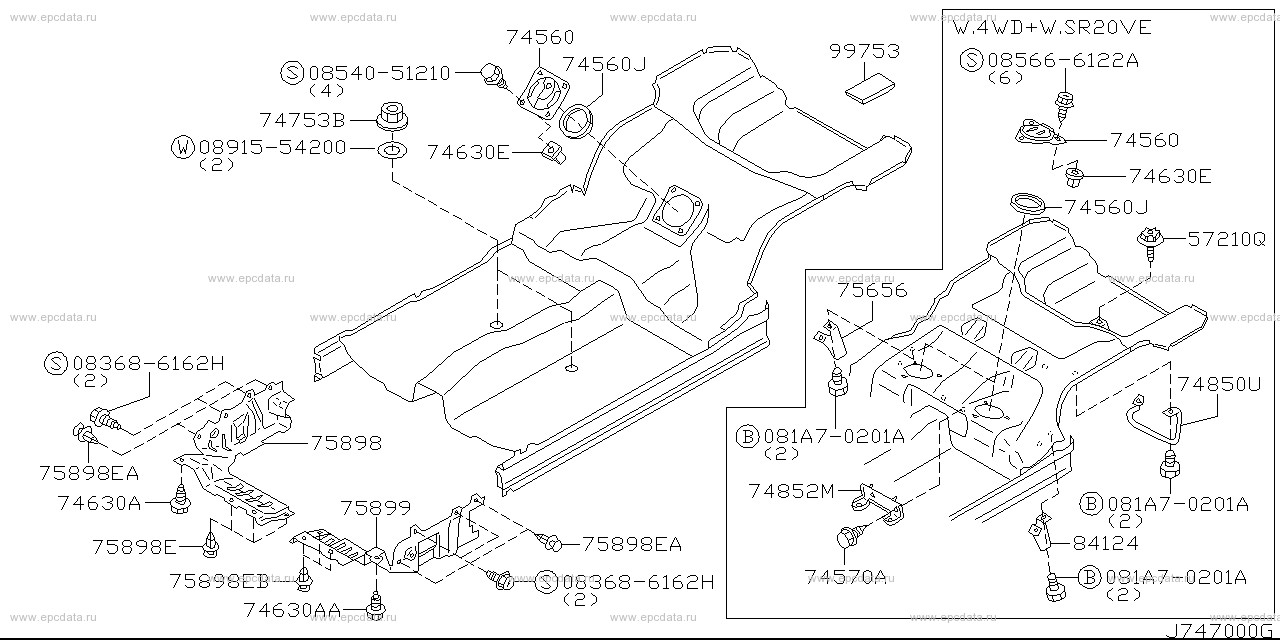

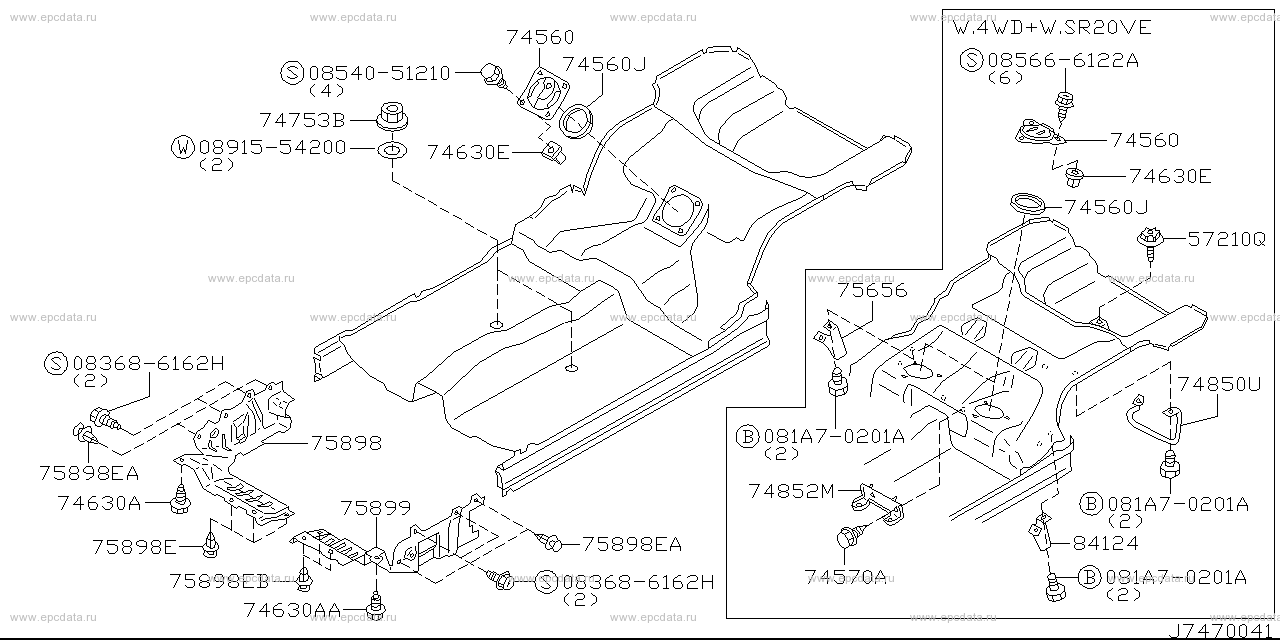

747 - floor fitting (body) for Nissan Wingroad / AD Wagon WFY11

	Frame / Series WFY11 / Y11 body W (wagon ) engine QG15DE (QG15DE engine ) drive 2WD Manufacture period 05.1999 - 10.2001 grade X (X grade ) transmission MT (manual transmission ) spec BASIC (standard spec )

---

Applies for models	Manufacture period	Spec
W	05.1999 - 01.2000	W

Open full screen picture Up to the top

081A70201A 083686162H 0854051210 085666122A 0891554200 57210Q - clamp, spare tire 74560 - cover, inspection hole 74560J - seal, inspection hole cover 74570A - bolt 74630A - screw 74630AA - screw 74630E - grommet, screw 74753B - nut 74850U - protector, rear axle 74852M - bracket, differential mounting front 75656 - bracket fuel tank mounting,RH 75898 - cover, front under RH 75898E - clip 75898EA - clip 75898EB - clip 75899 - cover, front under LH 84124 - bracket, fuel tank mounting 99753 - rubber, clamp jack

---

Applies for models	Manufacture period	Spec
W	01.2000 - 10.2000	W
W	10.2000 - 10.2001	W

Open full screen picture Up to the top

081A70201A 083686162H 0854051210 085666122A 0891554200 57210Q - clamp, spare tire 74560 - cover, inspection hole 74560J - seal, inspection hole cover 74570A - bolt 74630A - screw 74630AA - screw 74630E - grommet, screw 74753B - nut 74850U - protector, rear axle 74852M - bracket, differential mounting front 75656 - bracket fuel tank mounting,RH 75898 - cover, front under RH 75898E - clip 75898EA - clip 75898EB - clip 75899 - cover, front under LH 84124 - bracket, fuel tank mounting

Wingroad / AD Wagon WFY11
