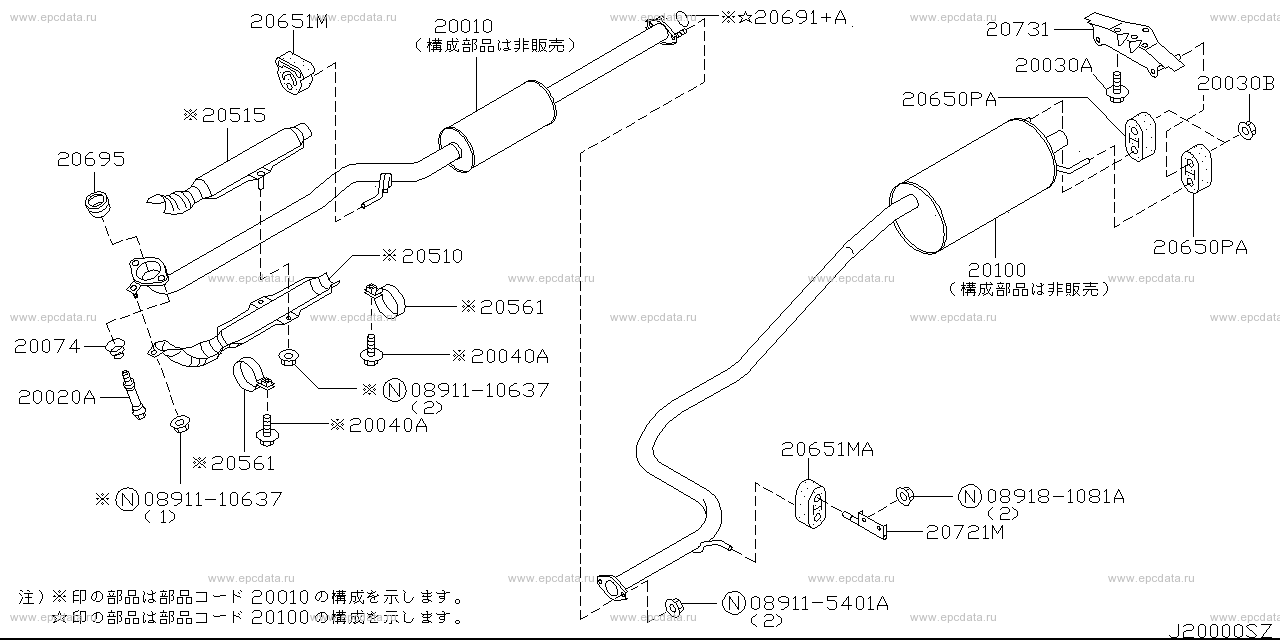

NissanWingroad / AD WagonWFY1105.1999 - 12.2005Engine and fuel system200 - exhaust tube & muffler (chassis)200 - exhaust tube & muffler (chassis) for Nissan Wingroad / AD Wagon WFY11
| |||||||||||||||||||
| Applies for models | Manufacture period | Spec |
|---|---|---|
| *W.QG15DE | 10.2000 - 10.2001 | *W(排気対策仕様） |
| 081108451D 0891110637 089115401A 089181081A 20010 - tube assembly, exhaust front 20020A - bolt 20020AA - bolt 20020AB - bolt 20030 - tube assembly, exhaust center 20030A - bolt 20030B - nut 20040A - bolt 20074 - spring, special 20100 - muffler assembly, exhaust main 20510 - insulator, heat exhaust tube front lower 20515 - insulator, heat exhaust tube front upper 20561 - clamp, insulator 20650P - mounting assembly, exhaust rubber 20650PA - mounting assembly, exhaust rubber 20651M - mounting, exhaust rubber 20651MA - mounting, exhaust rubber 20691+A - gasket, exhaust 20692M - gasket, exhaust 20692MA - gasket, exhaust 20695 - bearing, seal exhaust joint 20721M - bracket, exhaust mounting 20731 - bracket, exhaust mounting |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| QG13DE +QG15DE | 10.2000 - 10.2001 | W |
| QG13DE +QG15DE | 10.2001 - 08.2003 |
| 081108451D 0891110637 089115401A 089181081A 20010 - tube assembly, exhaust front 20020A - bolt 20030A - bolt 20030B - nut 20040A - bolt 20074 - spring, special 20100 - muffler assembly, exhaust main 20510 - insulator, heat exhaust tube front lower 20515 - insulator, heat exhaust tube front upper 20561 - clamp, insulator 20650P - mounting assembly, exhaust rubber 20650PA - mounting assembly, exhaust rubber 20651M - mounting, exhaust rubber 20651MA - mounting, exhaust rubber 20691+A - gasket, exhaust 20695 - bearing, seal exhaust joint 20721M - bracket, exhaust mounting 20731 - bracket, exhaust mounting |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| QG13DE +QG15DE | 08.2003 - 10.2003 |
| 0891110637 089115401A 089181081A 20010 - tube assembly, exhaust front 20020A - bolt 20030A - bolt 20030B - nut 20040A - bolt 20074 - spring, special 20100 - muffler assembly, exhaust main 20510 - insulator, heat exhaust tube front lower 20515 - insulator, heat exhaust tube front upper 20561 - clamp, insulator 20650PA - mounting assembly, exhaust rubber 20651M - mounting, exhaust rubber 20651MA - mounting, exhaust rubber 20691+A - gasket, exhaust 20695 - bearing, seal exhaust joint 20721M - bracket, exhaust mounting 20731 - bracket, exhaust mounting |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| QG13DE +QG15DE | 10.2003 - 12.2005 |
| 0891110637 089115401A 089181081A 20010 - tube assembly, exhaust front 20020A - bolt 20030A - bolt 20030B - nut 20040A - bolt 20074 - spring, special 20100 - muffler assembly, exhaust main 20510 - insulator, heat exhaust tube front lower 20515 - insulator, heat exhaust tube front upper 20561 - clamp, insulator 20650PA - mounting assembly, exhaust rubber 20651M - mounting, exhaust rubber 20651MA - mounting, exhaust rubber 20691+A - gasket, exhaust 20695 - bearing, seal exhaust joint 20721M - bracket, exhaust mounting 20731 - bracket, exhaust mounting |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| W.QG15DE | 05.1999 - 10.2000 | W |
| 081108451D 083638201D 0891110637 089115401A 089181081A 20010 - tube assembly, exhaust front 20020A - bolt 20030B - nut 20040A - bolt 20074 - spring, special 20100 - muffler assembly, exhaust main 20510 - insulator, heat exhaust tube front lower 20515 - insulator, heat exhaust tube front upper 20561 - clamp, insulator 20650P - mounting assembly, exhaust rubber 20650PA - mounting assembly, exhaust rubber 20651M - mounting, exhaust rubber 20651MA - mounting, exhaust rubber 20691+A - gasket, exhaust 20695 - bearing, seal exhaust joint 20721M - bracket, exhaust mounting 20731 - bracket, exhaust mounting |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| *W.QG15DE | 05.1999 - 10.2000 | *W(排気対策仕様） |
| 081108451D 083638201D 0891110637 089115401A 089181081A 20010 - tube assembly, exhaust front 20020A - bolt 20020AA - bolt 20020AB - bolt 20030 - tube assembly, exhaust center 20030B - nut 20040A - bolt 20074 - spring, special 20100 - muffler assembly, exhaust main 20510 - insulator, heat exhaust tube front lower 20515 - insulator, heat exhaust tube front upper 20561 - clamp, insulator 20650P - mounting assembly, exhaust rubber 20650PA - mounting assembly, exhaust rubber 20651M - mounting, exhaust rubber 20651MA - mounting, exhaust rubber 20691+A - gasket, exhaust 20692M - gasket, exhaust 20692MA - gasket, exhaust 20695 - bearing, seal exhaust joint 20721M - bracket, exhaust mounting 20731 - bracket, exhaust mounting |
