271 - Cooling unit (Denso) for Nissan Wingroad / AD Wagon WFY11

	Frame / Series WFY11 / Y11 body W (wagon ) engine QG15DE (QG15DE engine ) drive 2WD Manufacture period 05.1999 - 12.2005 grade G (G grade ) transmission AT.F4 (AT floor 4-speed ) spec BASIC (standard spec )

---

Applies for models	Manufacture period	Spec
W +V	05.2004 - 12.2005

Open full screen picture Up to the top

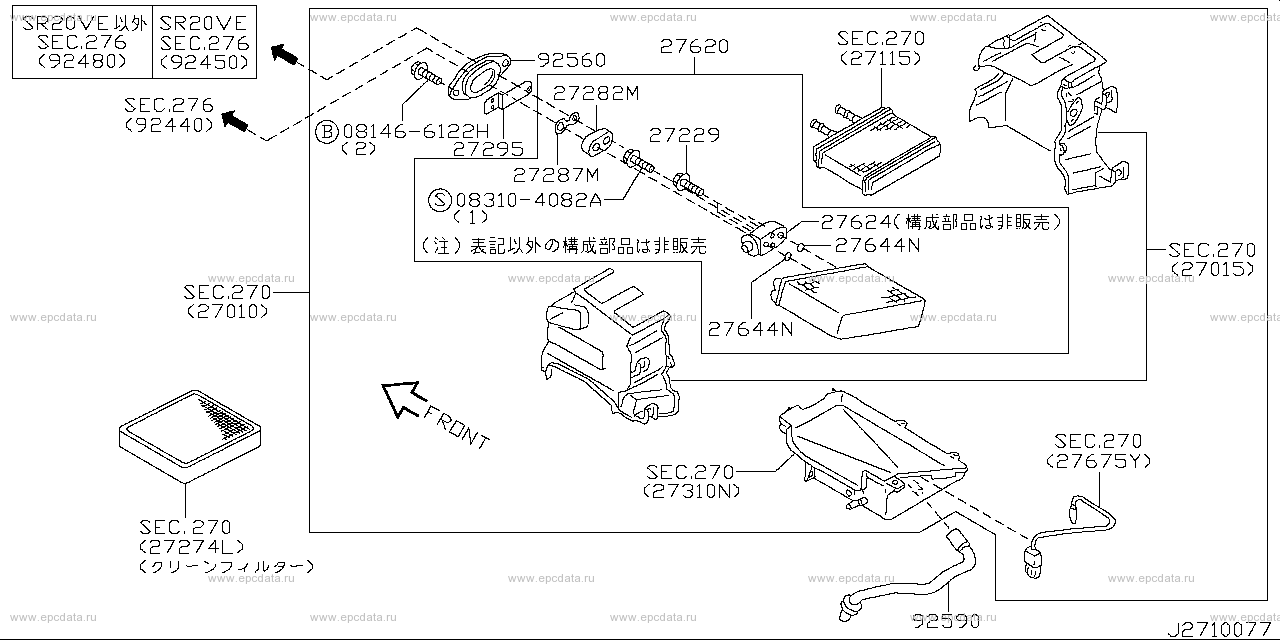

081466122H 083104082A 27229 - bolt, kit 27282M - block, evaporator valve 27287M - seal, cooling unit 27295 - bracket, cooling unit 27620 - evaporator assembly, cooler 27624 - valve assembly, expansion 27644N - seal,O ring 92590 - hose, drain

---

Applies for models	Manufacture period	Spec
W +V	05.1999 - 01.2000
W +V	01.2000 - 10.2000
W +V	10.2000 - 10.2001

Open full screen picture Up to the top

081466122H 083104082A 27229 - bolt, kit 27282M - block, evaporator valve 27287M - seal, cooling unit 27620 - evaporator assembly, cooler 27624 - valve assembly, expansion 27644N - seal,O ring 27644NA - seal,O ring 27723N - sensor assembly, thermistor 92560 - grommet 92590 - hose, drain

---

Applies for models	Manufacture period	Spec
W +V	10.2001 - 11.2002
W +V	11.2002 - 10.2003
W +V	10.2003 - 05.2004

Open full screen picture Up to the top

081466122H 083104082A 27229 - bolt, kit 27282M - block, evaporator valve 27287M - seal, cooling unit 27295 - bracket, cooling unit 27620 - evaporator assembly, cooler 27624 - valve assembly, expansion 27644N - seal,O ring 92560 - grommet 92590 - hose, drain

Wingroad / AD Wagon WFY11
