260 - head lamp (Denso) for Nissan Wingroad / AD Wagon WFY11

	Frame / Series WFY11 / Y11 body W (wagon ) engine QG15DE (QG15DE engine ) drive 2WD Manufacture period 05.1999 - 12.2005 grade G (G grade ) transmission AT.F4 (AT floor 4-speed ) spec BASIC (standard spec )

---

Applies for models	Manufacture period	Spec
W +V	10.2003 - 12.2005	ワゴン（キセノン）

Open full screen picture Up to the top

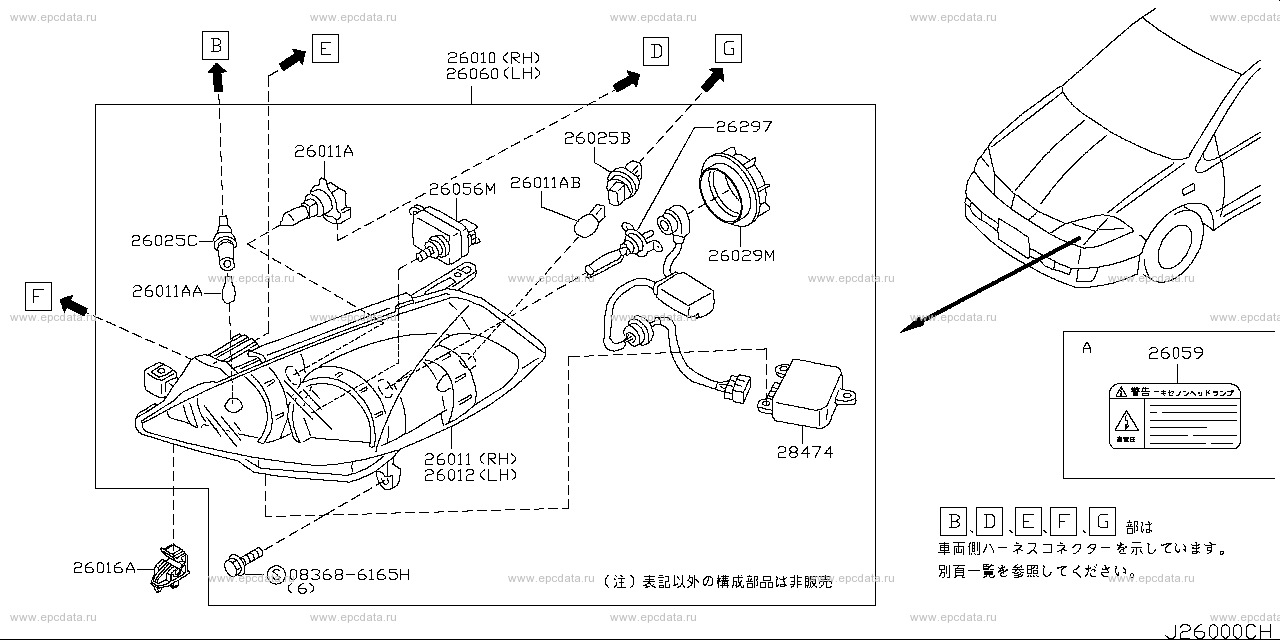

083686165H 26010 - head lamp assembly,RH 26011 - head lamp unit 26011A - ﾊﾞﾙﾌﾞ 26011AA - ﾊﾞﾙﾌﾞ 26011AB - ﾊﾞﾙﾌﾞ 26012 - head lamp unit 26016A - clip 26025B - socket assembly, head lamp 26025C - socket assembly, clearance lamp 26029M - cover, socket 26056M - actuator assembly, head lamp 26059 - label, head lamp 26060 - head lamp assembly,LH 26297 - bulb, xenon 28474 - control unit, xenon head lamp

---

Applies for models	Manufacture period	Spec
W +V	05.1999 - 01.2000	ヘッドランプ
W +V	01.2000 - 10.2000	ヘッドランプ
W +V	10.2000 - 10.2001	ヘッドランプ
W +V	10.2003 - 12.2005	バン

Open full screen picture Up to the top

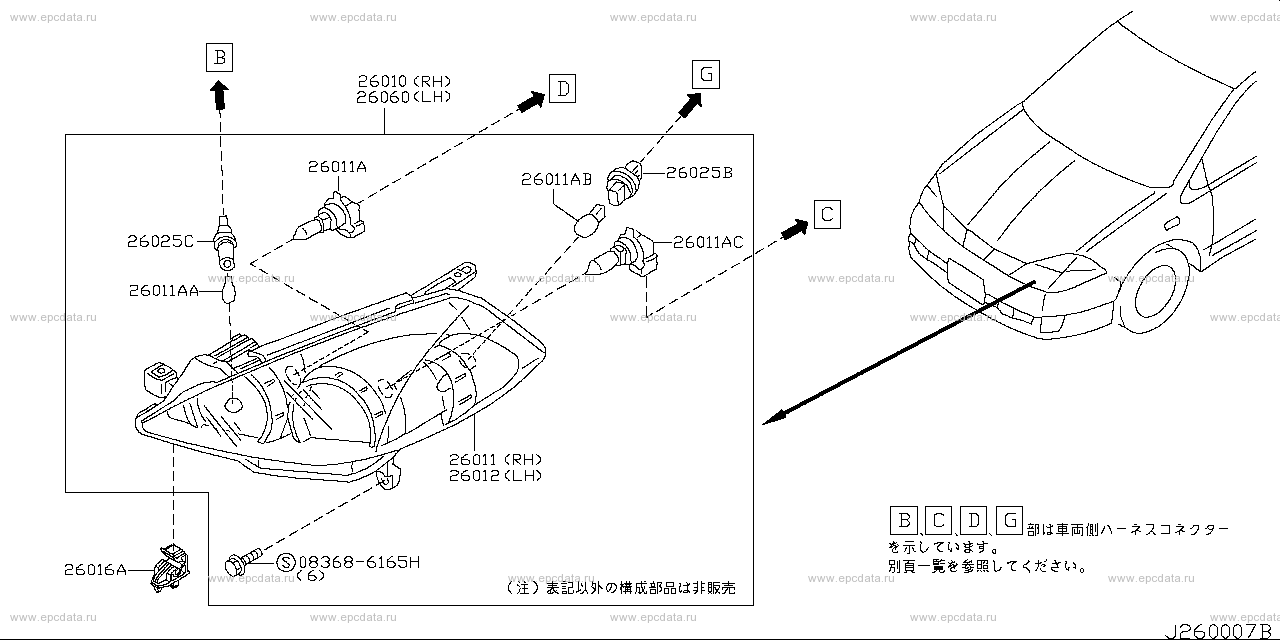

081466122G 085404122A 26010 - head lamp assembly,RH 26011A - ﾊﾞﾙﾌﾞ 26011AA - ﾊﾞﾙﾌﾞ 26016A - clip 26025 - housing assembly, head lamp RH 26025C - socket assembly, clearance lamp 26029M - cover, socket 26060 - head lamp assembly,LH 26075 - housing assembly, head lamp LH

---

Applies for models	Manufacture period	Spec

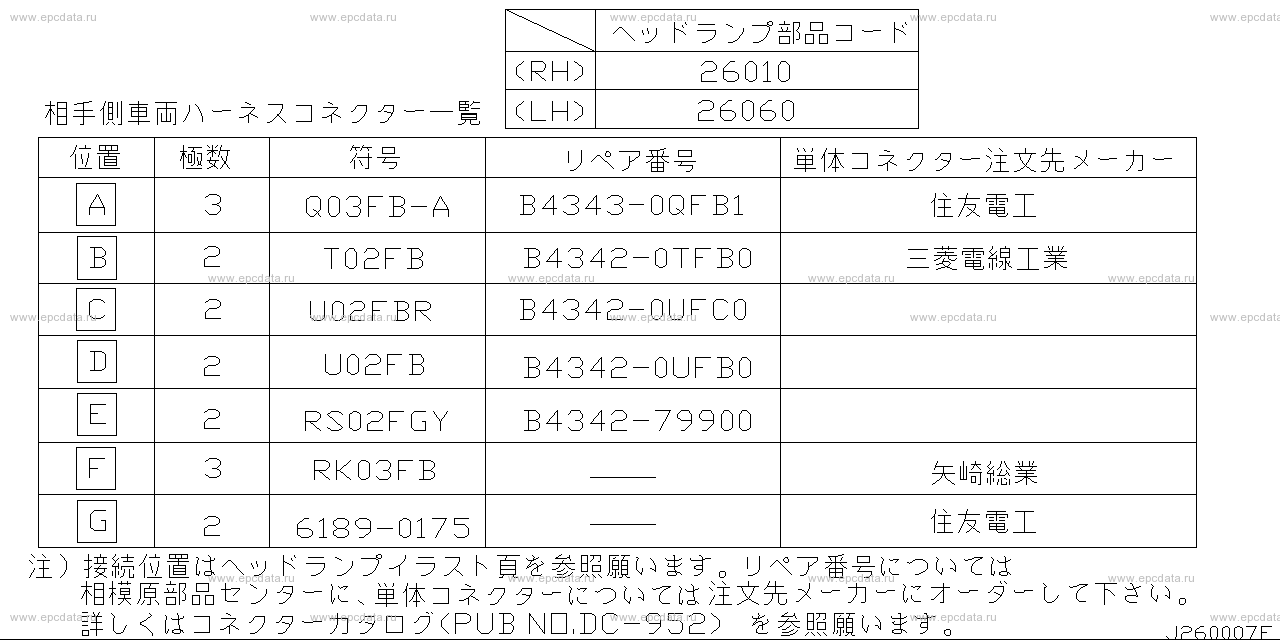

W +V	05.1999 - 01.2000	ハ−ネスコネクタ−一覧
W +V	01.2000 - 10.2000	ハ−ネスコネクタ−一覧
W +V	10.2000 - 10.2001	ハ−ネスコネクタ−一覧

Open full screen picture Up to the top

26010 - head lamp assembly,RH 26060 - head lamp assembly,LH

---

Applies for models	Manufacture period	Spec
W	10.2001 - 11.2002	ワゴン（ハロゲン）
W	11.2002 - 10.2003	ワゴン（ハロゲン）
W +V	10.2003 - 12.2005	ワゴン（ハロゲン）

Open full screen picture Up to the top

083686165H 26010 - head lamp assembly,RH 26011 - head lamp unit 26011A - ﾊﾞﾙﾌﾞ 26011AA - ﾊﾞﾙﾌﾞ 26011AB - ﾊﾞﾙﾌﾞ 26011AC - ﾊﾞﾙﾌﾞ 26012 - head lamp unit 26016A - clip 26025B - socket assembly, head lamp 26025C - socket assembly, clearance lamp 26060 - head lamp assembly,LH

---

Applies for models	Manufacture period	Spec
W	10.2001 - 11.2002	ワゴン（キセノン）
W	11.2002 - 10.2003	ワゴン（キセノン）

Open full screen picture Up to the top

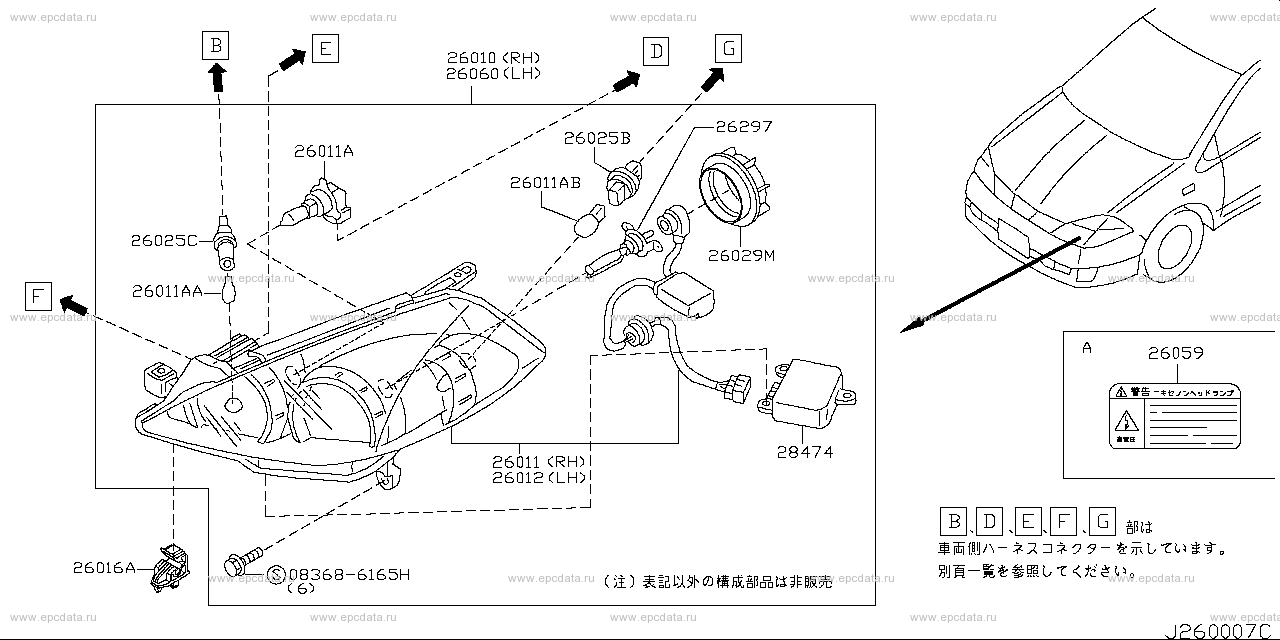

083686165H 26010 - head lamp assembly,RH 26011 - head lamp unit 26011A - ﾊﾞﾙﾌﾞ 26011AA - ﾊﾞﾙﾌﾞ 26011AB - ﾊﾞﾙﾌﾞ 26012 - head lamp unit 26016A - clip 26025B - socket assembly, head lamp 26025C - socket assembly, clearance lamp 26029M - cover, socket 26059 - label, head lamp 26060 - head lamp assembly,LH 26297 - bulb, xenon 28474 - control unit, xenon head lamp

---

Applies for models	Manufacture period	Spec
W +V	10.2001 - 11.2002	ハ−ネスコネクタ−一覧
W +V	11.2002 - 10.2003	ハ−ネスコネクタ−一覧
W +V	10.2003 - 12.2005	ハ−ネスコネクタ−一覧

Open full screen picture Up to the top

26010 - head lamp assembly,RH 26060 - head lamp assembly,LH

Wingroad / AD Wagon WFY11
