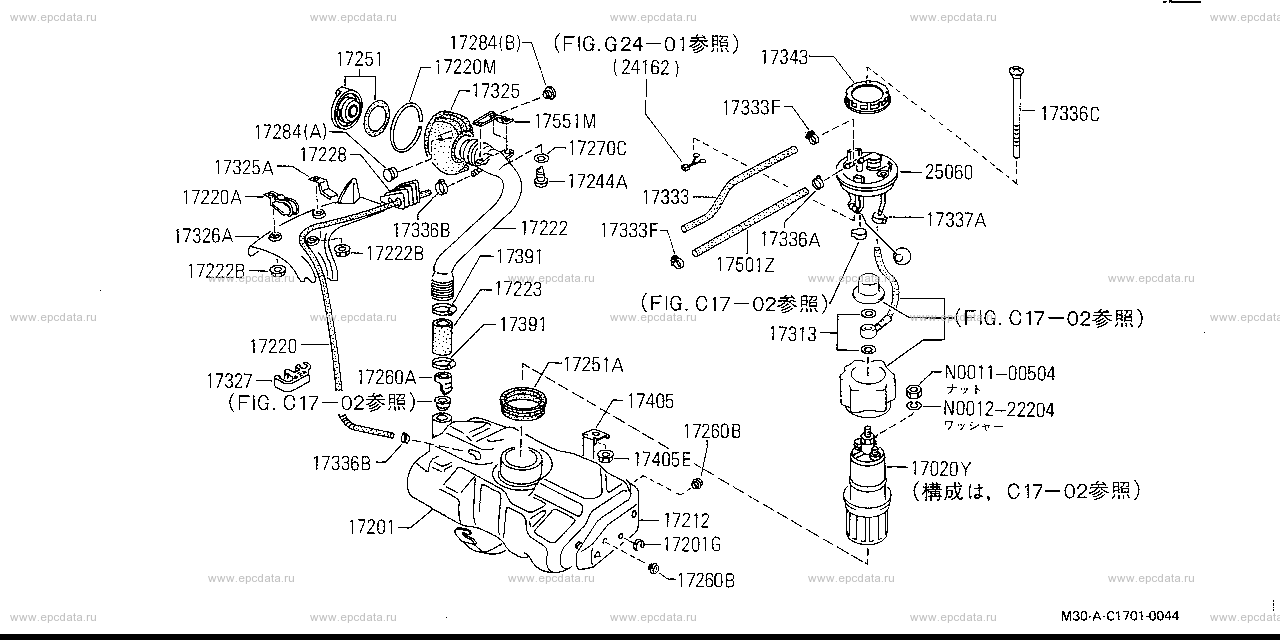

C1701 - fuel tank (chassis) for Nissan Volkswagen Santana M30

	Frame / Series M30 / M30 engine JN (1800 gasoline ) grade GI transmission AT (floor automatic ) Manufacture period 02.1984 - ...

Applies for models	Manufacture period	Spec
JN+J	02.1984 - ...

Open full screen picture

17020Y - pump, fuel 17201 - tank assembly, fuel 17201G - washer 17212 - insulator assembly, heat fuel tank 17220 - hose, filler 17220A - clamp 17220M - packing, hose filler 17222 - neck assembly, filler 17222B - nut 17223 - hose, filler 17228 - grommet 17244A - screw 17251 - cap assembly, filler 17251A - packing, filler cap 17260A - ring, set 17260B - cushion, rubber 17270C - washer 17284 - plug 17313 - washer, sealing 17325 - hose, ventilation 17325A - clamp 17326A - protector 17327 - clamp 17333 - hose, emission control 17333F - clip 17336A - clamp 17336B - clip, breather hose 17336C - screw 17337A - clamp 17343 - plate, lock fuel gauge 17391 - clip 17405 - band assembly, fuel tank mounting 17405E - nut 17501Z - hose, fuel 17551M - bracket, fuel 25060 - gauge assembly, unit fuel tank N001100504 N001222204

Volkswagen Santana M30
