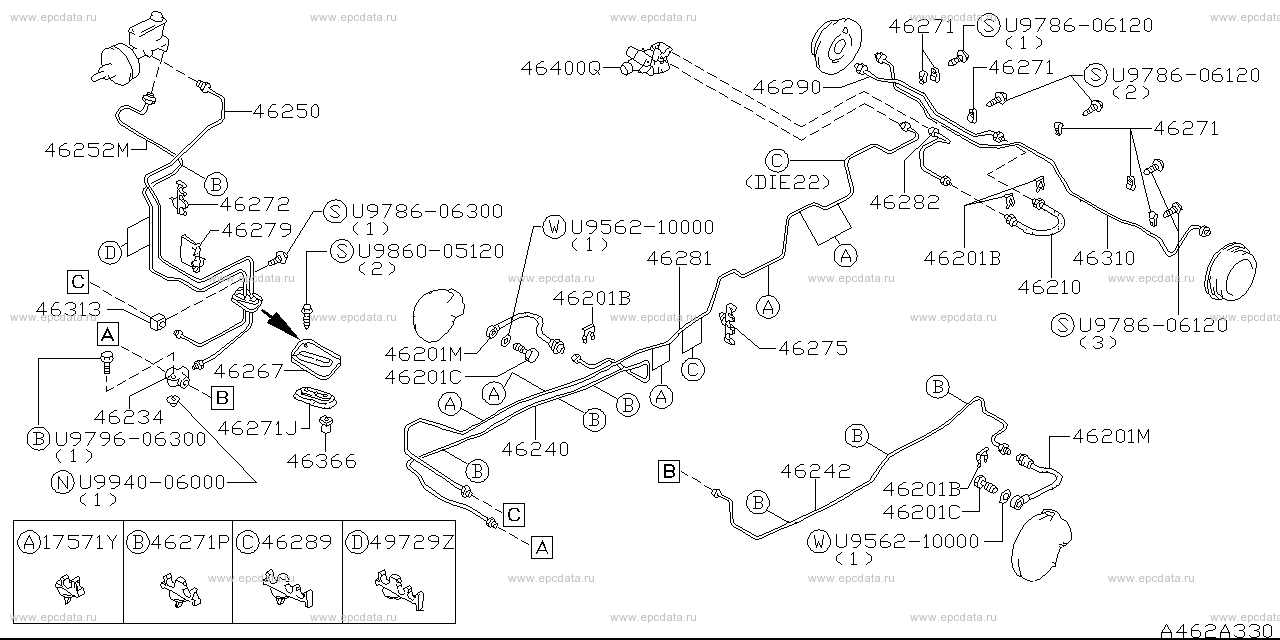

462 - brake piping (chassis) for Nissan Vanette Van Truck SS88VN

	Frame / Series SS88VN / S20 body V (van ) engine GAS18 (1800 gasoline ) drive 2WD (two-wheel drive ) Manufacture period 08.1995 - 10.1996 roof floor HR.L (high roof low floor single tire ) number of doors 4D (4-door ) seating capacity 3/6P (3/6-seater )     grade DX (deluxe ) transmission MT (manual transmission )

---

Applies for models	Manufacture period	Spec
V.2WD.SR.L +V.(SR.FWL+SR.LR+HR.L+HR.FWL)	08.1995 - 10.1996

Open full screen picture Up to the top

17571Y - clip 46201B - spring, lock brake hose 46201C - bolt, union front brake hose 46201M - hose assembly, brake front 46210 - hose assembly, brake rear 46234 - connector 46240 - tube assembly, brake front RH 46242 - tube assembly, brake front LH 46250 - tube assembly, brake front master cylinder 46252M - tube assembly, brake rear master cylinder 46267 - protector, brake tube 46271 - clip, tube brake 46271J - insulator 46271P - clamp, tube 46272 - clip, tube brake 46275 - clip, tube brake 46279 - clip, tube brake 46281 - tube assembly, brake rear 46282 - tube assembly, brake rear 46289 - clamp 46290 - tube assembly, rear brake RH 46310 - tube assembly, rear brake LH 46313 - connector, brake tube 46366 - grommet 46400Q - valve assembly, dual proportioning 49729Z - clamp U956210000 U978606120 U978606300 U979606300 U986005120 U994006000

---

Applies for models	Manufacture period	Spec
V.2WD.SR.L +V.(SR.LR+HR.L)	10.1996 - ...

Open full screen picture Up to the top

17571Y - clip 41129+A - cap, bleeder 46201B - spring, lock brake hose 46201C - bolt, union front brake hose 46201M - hose assembly, brake front 46210 - hose assembly, brake rear 46212C - bolt, union rear brake hose 46240 - tube assembly, brake front RH 46242 - tube assembly, brake front LH 46250 - tube assembly, brake front master cylinder 46252M - tube assembly, brake rear master cylinder 46267 - protector, brake tube 46271 - clip, tube brake 46271J - insulator 46271P - clamp, tube 46272 - clip, tube brake 46273J - insulator 46279 - clip, tube brake 46281 - tube assembly, brake rear 46282 - tube assembly, brake rear 46289 - clamp 46290 - tube assembly, rear brake RH 46310 - tube assembly, rear brake LH 46364 - connector, brake tube 46366 - grommet 46400Q - valve assembly, dual proportioning 46400QA - valve assembly, dual proportioning 46450 - bracket,ﾊﾞﾙﾌﾞ 47492X - clip 49729Z - clamp U956210000 U978408160 U978408650 U978606120 U980606400 U986005120 U994008000
