NissanVanette Van TruckSS88VN08.1995 - 10.1996Electrics272 - control unit (heater, air conditioner) (Denso)

272 - control unit (heater, air conditioner) (Denso) for Nissan Vanette Van Truck SS88VN



Frame / SeriesSS88VN / S20 body V (van )engine GAS18 (1800 gasoline )drive 2WD (two-wheel drive )
Manufacture period08.1995 - 10.1996roof floor HR.L (high roof low floor single tire )number of doors 4D (4-door )seating capacity 3/6P (3/6-seater )
  grade DX (deluxe )transmission MT (manual transmission )

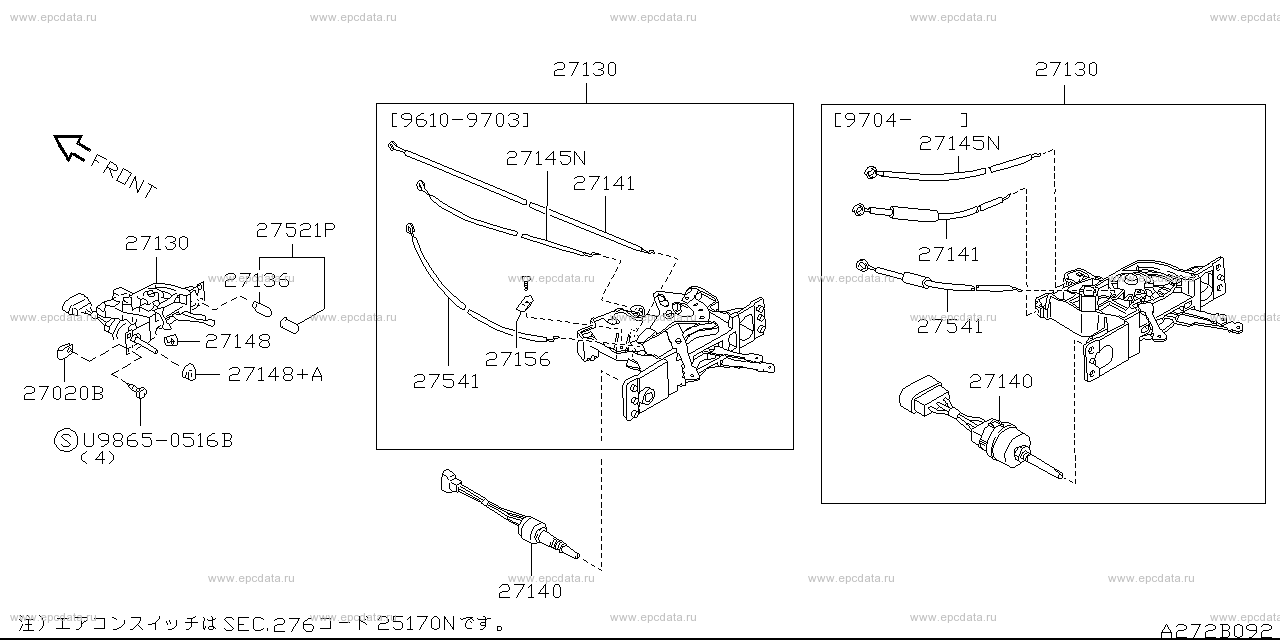

Scheme 272A_001 Scheme 272B_001
Applies for modelsManufacture periodSpec
V +T08.1995 - 10.1996

Open full screen pictureOpen full screen picture
Up to the top

27020B - nut
27130 - control assembly
27136 - valve assembly, control
27140 - switch, fan
27141 - cable, control vent door
27145N - cable, temperature control
27148 - knob, control
27148+A - knob, control
27156 - clamp, cable
27541 - cable, mode control
92657Z - switch, air conditioner
92658Z - knob
92658ZA - knob
U986505160
Applies for modelsManufacture periodSpec
V +T10.1996 - ...

Open full screen pictureOpen full screen picture
Up to the top

25170N - switch, air conditioner
27020B - nut
27130 - control assembly
27136 - valve assembly, control
27140 - switch, fan
27141 - cable, control vent door
27145N - cable, temperature control
27148 - knob, control
27148+A - knob, control
27156 - clamp, cable
27521P - cover, control
27541 - cable, mode control
U98650516B
