240 - wiring (Denso) for Nissan Vanette Van Truck SS88VN

	Frame / Series SS88VN / S20 body V (van ) engine GAS18 (1800 gasoline ) drive 2WD (two-wheel drive ) Manufacture period 08.1995 - 10.1996 roof floor HR.L (high roof low floor single tire ) number of doors 4D (4-door ) seating capacity 3/6P (3/6-seater )     grade DX (deluxe ) transmission MT (manual transmission )

---

Applies for models	Manufacture period	Spec
V	08.1995 - 10.1996	エンジン ＆ トランスミッション

Open full screen picture Up to the top

24012 - harness assembly, engine room 24080 - cable assembly, battery earth 24087 - cable, earth 24110 - cable assembly, battery to starter motor 24161+E - link, fusible 24161+F - link, fusible 24217B - bracket, harness clip 24230MA - bracket 24345W - cover, connector U994006000

---

Applies for models	Manufacture period	Spec
V	08.1995 - 10.1996	ダッシュ ＆ ボディー

Open full screen picture Up to the top

24010 - harness assembly, main 24013 - harness assembly, instrument 24014R - harness assembly, chassis 24014W - harness, chassis NO2 24016 - harness assembly, console 24018N - harness, sub 24018NA - harness, sub 24018NB - harness, sub 24020 - harness assembly, alternator 24028M - harness, sub 24051 - harness, back door 24058 - harness, defogger rear 24160 - harness assembly, room lamp 24161+A - link, fusible 24161+B - link, fusible 24161+C - link, fusible 24161+D - link, fusible 24215AA - clip, wiring harness 24230M - bracket 24230N - bracket 24302 - harness assembly, door front RH 24303 - harness assembly, door front 25410 - block assembly, fuse 25411 - holder, fusible link 25419M - bracket, fuse block 25420 - cover, fuse block 25461 - fuse,10A 25462 - fuse,20A 25465M - fuse 25466 - fuse,15A U079765200 U090606020 U986805160 U994005000

---

Applies for models	Manufacture period	Spec

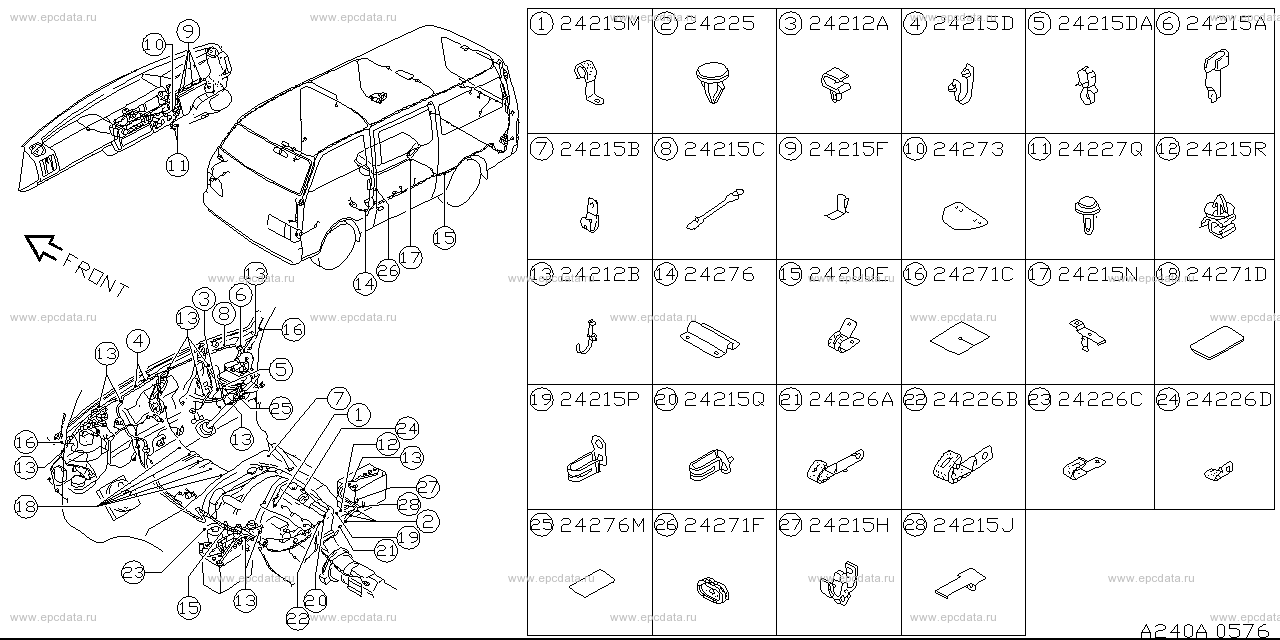

V	08.1995 - 10.1996	クリップ ＆ ブラケット

Open full screen picture Up to the top

24200E - clip, wiring harness 24212A - clip, wiring harness 24212B - clip, wiring harness 24215A - clip, wiring harness 24215B - clip, wiring harness 24215C - clip, wiring harness 24215D - clip, wiring harness 24215DA - clip, wiring harness 24215F - clip, wiring harness 24215H - clip, wiring harness 24215J - clip, wiring harness 24215M - clip, wiring harness 24215N - clip, wiring harness 24215P - clip, wiring harness 24215Q - clip, wiring harness 24215R - clip, wiring harness 24225 - cap, terminal 24226A - clip, wiring harness 24226B - clip, wiring harness 24226C - clip, wiring harness 24226D - clip, wiring harness 24227Q - fastener 24271C - protector, harness 24271D - protector, harness 24271F - protector, harness 24273 - protector, harness 24276 - protector, harness 24276M - protector, harness

---

Applies for models	Manufacture period	Spec
V	10.1996 - ...	エンジン ＆ トランスミッション

Open full screen picture Up to the top

24012 - harness assembly, engine room 24078Y - harness, head temperature sensor 24080 - cable assembly, battery earth 24085N - cable, bonding 24087 - cable, earth 24110 - cable assembly, battery to starter motor 24161+A - link, fusible 24161+B - link, fusible 24161+C - link, fusible 24217B - bracket, harness clip 24230MA - bracket 24230MB - bracket 24230Q - bracket 24230QA - bracket 25411 - holder, fusible link U079765200 U979406120 U979406200 U994005000 U994006000

---

Applies for models	Manufacture period	Spec
V	10.1996 - ...	ダッシュ ボディー

Open full screen picture Up to the top

24010 - harness assembly, main 24013 - harness assembly, instrument 24014R - harness assembly, chassis 24014W - harness, chassis NO2 24018N - harness, sub 24018NA - harness, sub 24018NB - harness, sub 24025MC - harness assembly, adapter 24051 - harness, back door 24058 - harness, defogger rear 24160 - harness assembly, room lamp 24161 - link, fusible 24161+B - link, fusible 24161+C - link, fusible 24230M - bracket 24230MC - bracket 24230N - bracket 24302 - harness assembly, door front RH 24302N - harness assembly, door front 24303 - harness assembly, door front 24370M - connector assembly, fusible link 25410 - block assembly, fuse 25411 - holder, fusible link 25420 - cover, fuse block 25420+A - cover, fuse block 25461 - fuse,10A 25462 - fuse,20A 25463 - fuse,30A 25465MA - fuse 25466 - fuse,15A U090606020 U994005000

---

Applies for models	Manufacture period	Spec
V	10.1996 - ...	クリップ＆ブラケットＮＯ．１

Open full screen picture Up to the top

24212A - clip, wiring harness 24212B - clip, wiring harness 24215A - clip, wiring harness 24215B - clip, wiring harness 24215C - clip, wiring harness 24215D - clip, wiring harness 24215DA - clip, wiring harness 24215F - clip, wiring harness 24215H - clip, wiring harness 24215HA - clip, wiring harness 24215J - clip, wiring harness 24215M - clip, wiring harness 24215MB - clip, wiring harness 24215P - clip, wiring harness 24215Q - clip, wiring harness 24215R - clip, wiring harness 24225 - cap, terminal 24226A - clip, wiring harness 24226B - clip, wiring harness 24226C - clip, wiring harness 24226D - clip, wiring harness 24227Q - fastener 24254M - grommet, harness 24271C - protector, harness 24271D - protector, harness 24273 - protector, harness 24276M - protector, harness 73746MA - spacer

---

Applies for models	Manufacture period	Spec
V	10.1996 - ...	クリップ＆ブラケットＮＯ．２

Open full screen picture Up to the top

24200E - clip, wiring harness 24212AA - clip, wiring harness 24215N - clip, wiring harness 24254A - grommet 24269 - plug, blind 24271F - protector, harness 24276 - protector, harness 64899D - cover, hole 80985MA - cover, door pocket
