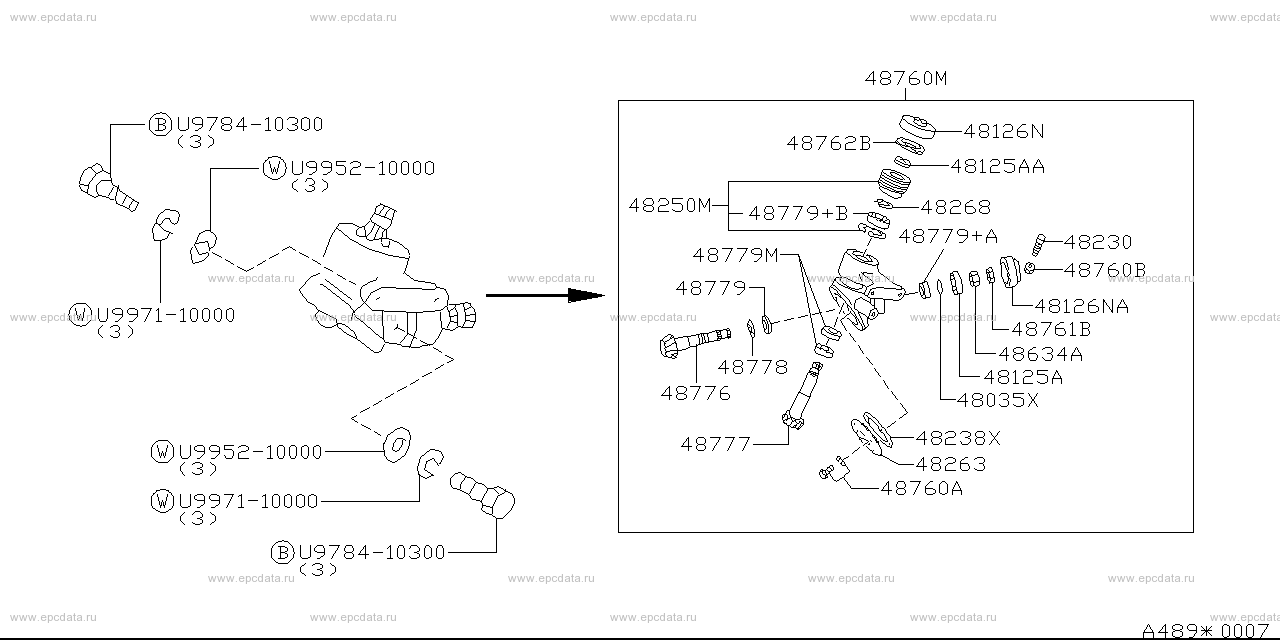

489 - steering transfer gear (chassis) for Nissan Vanette Van Truck SS88VN

	Frame / Series SS88VN / S20 body V (van ) engine GAS18 (1800 gasoline ) drive 2WD (two-wheel drive ) Manufacture period 08.1995 - 10.1996 roof floor SR.L (standard roof low floor single tire ) number of doors 4D (4-door ) seating capacity 3/6P (3/6-seater )     grade DX (deluxe ) transmission MT (manual transmission )

Applies for models	Manufacture period	Spec
GAS18 +DIE22	08.1995 - 10.1996
GAS18 +DIE22	10.1996 - ...

Open full screen picture

48035X - seal,O ring 48125A - seal, oil bevel gear 48125AA - seal, oil bevel gear 48126N - cover, dust 48126NA - cover, dust 48230 - block assembly, friction 48238X - gasket 48250M - cover assembly, rear gear housing 48263 - cover, front gear housing 48268 - ring, snap bearing inner 48634A - nut 48760A - bolt 48760B - nut 48760M - gear assembly, transfer steering 48761B - nut 48762B - nut 48776 - gear, bevel transfer output 48777 - gear, bevel transfer input 48778 - washer 48779 - bearing assembly, thrust needle 48779+A - bearing assembly, thrust needle 48779+B - bearing assembly, thrust needle 48779M - bearing, steering column lock housing U978410300 U995210000 U997110000

Vanette Van Truck SS88VN
