240 - wiring (Denso) for Nissan Vanette Van Truck SE28TN

	Frame / Series SE28TN / S20 body T (truck ) engine DIE22 (2200 diesel ) drive 2WD (two-wheel drive ) Manufacture period 04.1994 - ... roof floor SR.WL (standard roof low floor double tire ) number of doors 2D (2-door ) seating capacity 3P (3-seater )     grade DX (deluxe ) transmission MT (manual transmission )

---

Applies for models	Manufacture period	Spec
T	04.1994 - 08.1995	ダッシュ ＆ ボディー
T	08.1995 - 10.1996	ダッシュ ＆ ボディー

Open full screen picture Up to the top

24010 - harness assembly, main 24013 - harness assembly, instrument 24014R - harness assembly, chassis 24014W - harness, chassis NO2 24016 - harness assembly, console 24018N - harness, sub 24020 - harness assembly, alternator 24028M - harness, sub 24087 - cable, earth 24160 - harness assembly, room lamp 24161+A - link, fusible 24161+B - link, fusible 24161+C - link, fusible 24230N - bracket 24302 - harness assembly, door front RH 24303 - harness assembly, door front 25410 - block assembly, fuse 25411 - holder, fusible link 25418 - bracket, fusible link holder 25419M - bracket, fuse block 25420 - cover, fuse block 25461 - fuse,10A 25462 - fuse,20A 25465M - fuse 25466 - fuse,15A U079765200 U090606020 U986805160 U994005000

---

Applies for models	Manufacture period	Spec
T	04.1994 - 08.1995	エンジン ＆ トランスミッション
T	08.1995 - 10.1996	エンジン ＆ トランスミッション

Open full screen picture Up to the top

24012 - harness assembly, engine room 24080 - cable assembly, battery earth 24098 - bracket, harness 24110 - cable assembly, battery to starter motor 24161+E - link, fusible 24161+F - link, fusible 24230M - bracket U978608160 U994006000

---

Applies for models	Manufacture period	Spec
T	04.1994 - 08.1995	クリップ ＆ ブラケット
T	08.1995 - 10.1996	クリップ ＆ ブラケット

Open full screen picture Up to the top

24212A - clip, wiring harness 24212B - clip, wiring harness 24215A - clip, wiring harness 24215B - clip, wiring harness 24215C - clip, wiring harness 24215D - clip, wiring harness 24215DA - clip, wiring harness 24215F - clip, wiring harness 24215P - clip, wiring harness 24215Q - clip, wiring harness 24217B - bracket, harness clip 24226A - clip, wiring harness 24226B - clip, wiring harness 24226D - clip, wiring harness 24226E - clip, wiring harness 24227Q - fastener 24254A - grommet 24269 - plug, blind 24269H - plug, blind 24271C - protector, harness 24271D - protector, harness 24273 - protector, harness 24276M - protector, harness 74981X - cover, hole

---

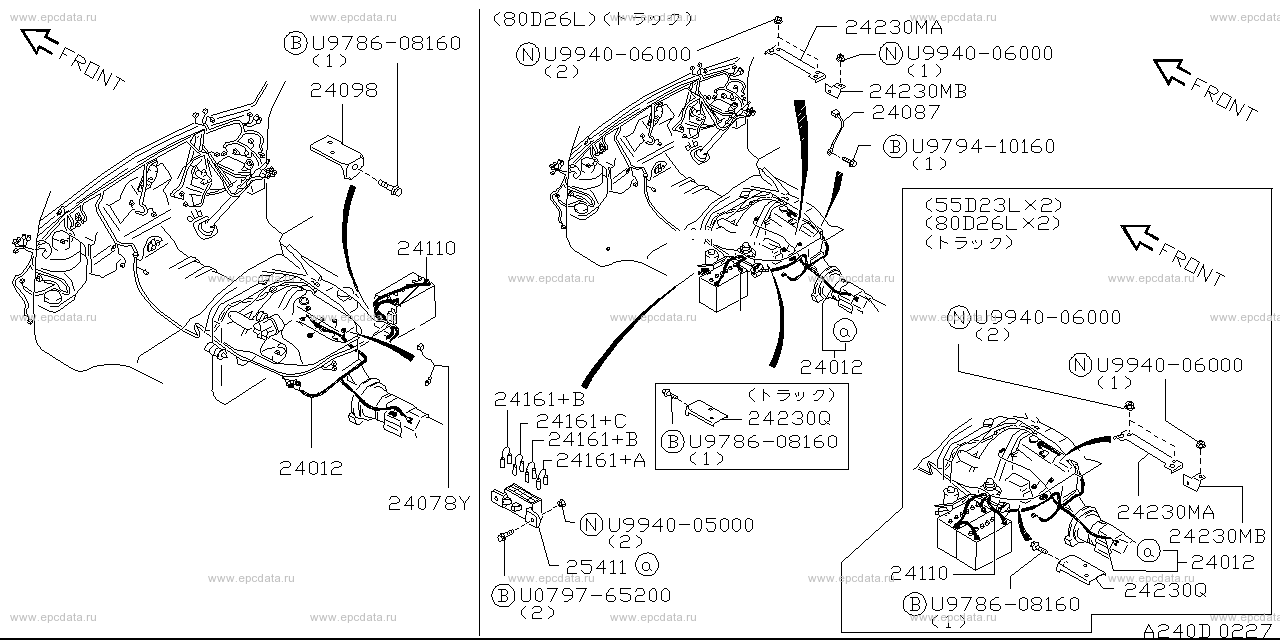

Applies for models	Manufacture period	Spec
T	10.1996 - ...	エンジン ＆ トランスミッション

Open full screen picture Up to the top

24012 - harness assembly, engine room 24078Y - harness, head temperature sensor 24087 - cable, earth 24098 - bracket, harness 24110 - cable assembly, battery to starter motor 24161+A - link, fusible 24161+B - link, fusible 24161+C - link, fusible 24230MA - bracket 24230MB - bracket 24230Q - bracket 25411 - holder, fusible link U079765200 U978608160 U994005000 U994006000

---

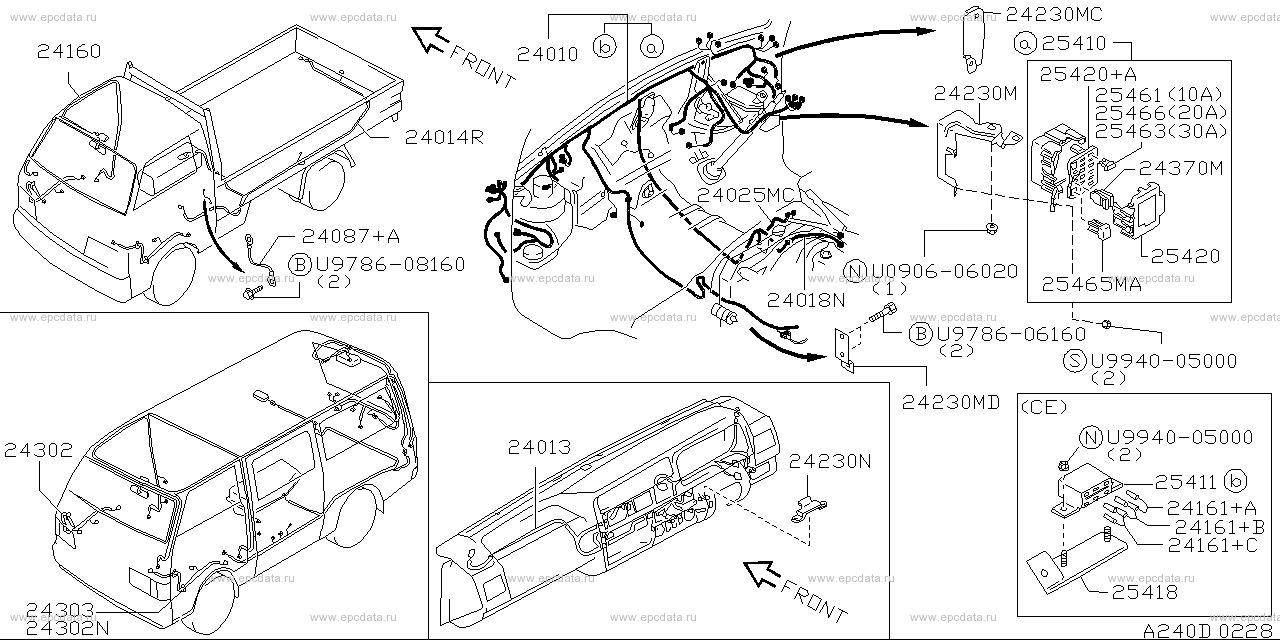

Applies for models	Manufacture period	Spec
T	10.1996 - ...	ダッシュ ＆ ボディー

Open full screen picture Up to the top

24010 - harness assembly, main 24013 - harness assembly, instrument 24014R - harness assembly, chassis 24018N - harness, sub 24025MC - harness assembly, adapter 24087+A - cable, earth 24160 - harness assembly, room lamp 24161+A - link, fusible 24161+B - link, fusible 24161+C - link, fusible 24230M - bracket 24230MC - bracket 24230MD - bracket 24230N - bracket 24302 - harness assembly, door front RH 24302N - harness assembly, door front 24303 - harness assembly, door front 24370M - connector assembly, fusible link 25410 - block assembly, fuse 25411 - holder, fusible link 25418 - bracket, fusible link holder 25420 - cover, fuse block 25420+A - cover, fuse block 25461 - fuse,10A 25463 - fuse,30A 25465MA - fuse 25466 - fuse,15A U090606020 U978606160 U978608160 U994005000

---

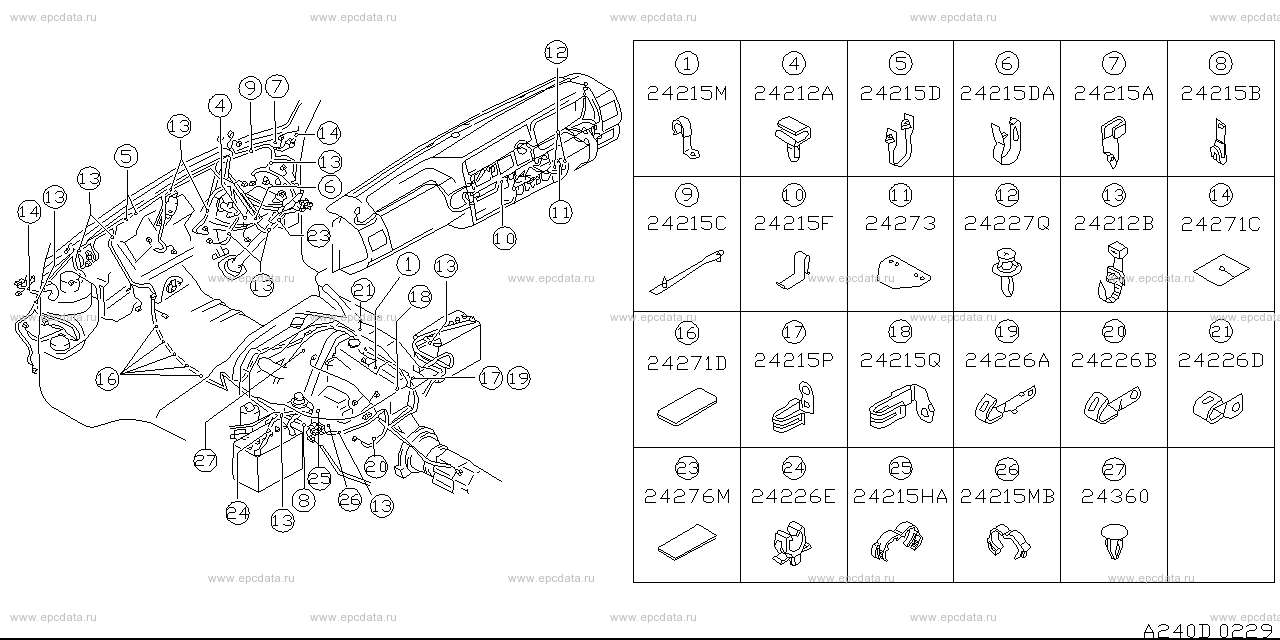

Applies for models	Manufacture period	Spec
T	10.1996 - ...	クリップ ＆ ブラケット

Open full screen picture Up to the top

24212A - clip, wiring harness 24212B - clip, wiring harness 24215A - clip, wiring harness 24215B - clip, wiring harness 24215C - clip, wiring harness 24215D - clip, wiring harness 24215DA - clip, wiring harness 24215F - clip, wiring harness 24215HA - clip, wiring harness 24215M - clip, wiring harness 24215MB - clip, wiring harness 24215P - clip, wiring harness 24215Q - clip, wiring harness 24226A - clip, wiring harness 24226B - clip, wiring harness 24226D - clip, wiring harness 24226E - clip, wiring harness 24227Q - fastener 24271C - protector, harness 24271D - protector, harness 24273 - protector, harness 24276M - protector, harness 24360 - cap, terminal

---

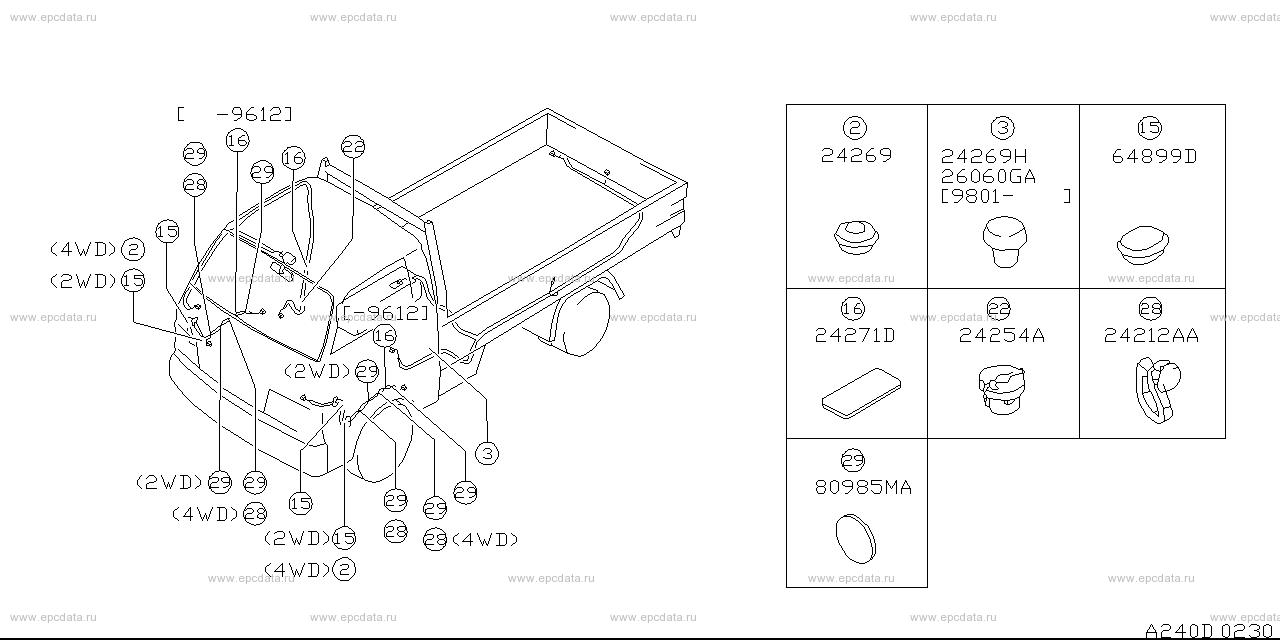

Applies for models	Manufacture period	Spec
T	10.1996 - ...	プラグ

Open full screen picture Up to the top

24212AA - clip, wiring harness 24254A - grommet 24269 - plug, blind 24269H - plug, blind 24271D - protector, harness 26060GA - plug, blind 64899D - cover, hole 80985MA - cover, door pocket

Vanette Van Truck SE28TN
