NissanVanette Van TruckXXXXXXXX08.2007 - ...Electrics240 - wiring (Denso)24013: harness assembly, instrument 240 - wiring (Denso) for Nissan Vanette Van Truck XXXXXXXX
| |||||||||||||||||||||||||||
24013: harness assembly, instrument
More than 1 spare part found. Please define it more accurately before ordering. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Applies for models | Manufacture period | Spec |
|---|---|---|

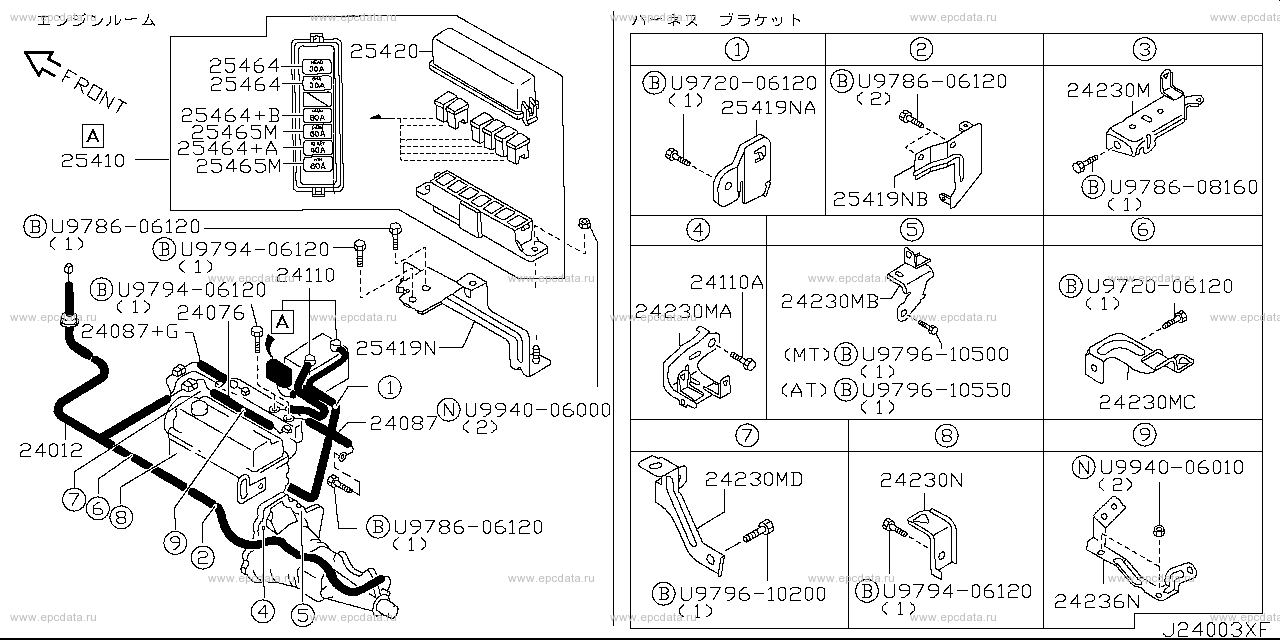

| V.2WD.SB.GAS18 +V.4WD.SB.SR.L.GAS18 +V.4WD.SB.HR.L.4D.3/6P.GAS18.AT +V.4WD.SB.5D.GAS18 +V.4WD.SB.(3P+2/5P).GAS18 | 12.2003 - 08.2007 | engine ﾙｰﾑ(GAS18) |
| 24012 - harness assembly, engine room 24076 - harness assembly, engine room sub 24087 - cable, earth 24087+G - cable, earth 24110 - cable assembly, battery to starter motor 24110A - bolt 24230M - bracket 24230MA - bracket 24230MB - bracket 24230MC - bracket 24230MD - bracket 24230N - bracket 24236N - bracket,EGI harness 25410 - block assembly, fuse 25419N - bracket, fuse block 25419NA - bracket, fuse block 25419NB - bracket, fuse block 25420 - cover, fuse block 25464 - fuse 25464+A - fuse 25464+B - fuse 25465M - fuse U972006120 U978606120 U978608160 U979406120 U979610200 U979610500 U979610550 U994006000 U994006010 |
| Applies for models | Manufacture period | Spec |
|---|---|---|

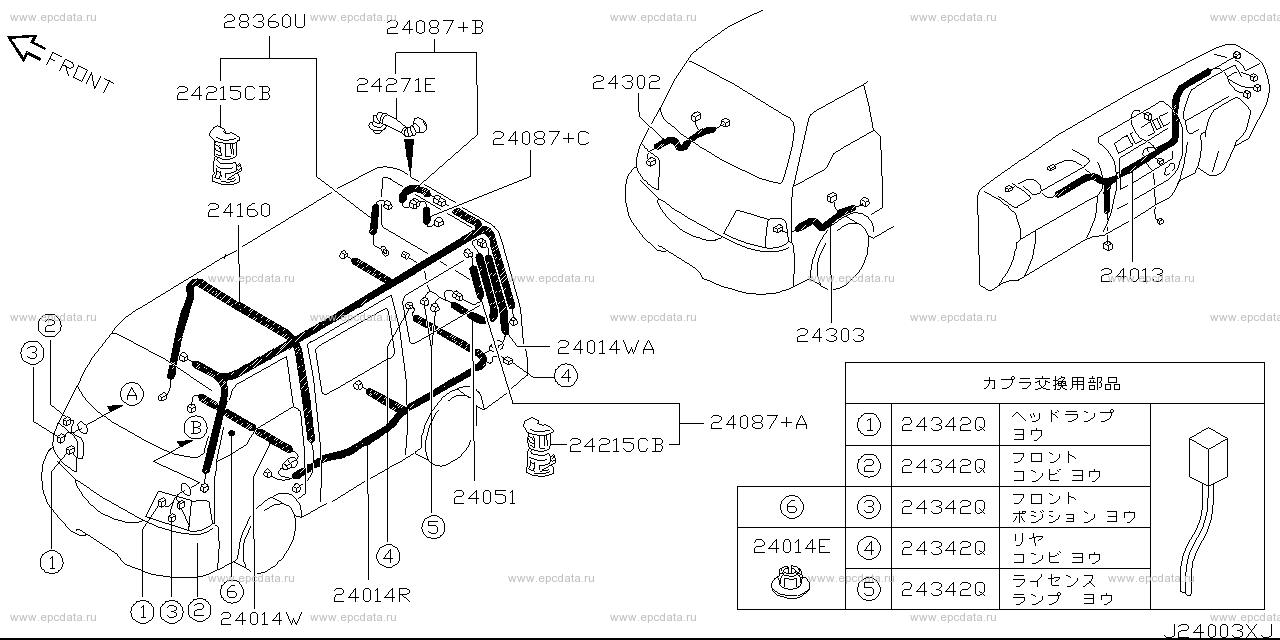

| V | 12.2003 - 08.2007 | body |
| 24013 - harness assembly, instrument 24014E - nut 24014R - harness assembly, chassis 24014W - harness, chassis NO2 24014WA - harness, chassis NO2 24051 - harness, back door 24087+A - cable, earth 24087+B - cable, earth 24087+C - cable, earth 24160 - harness assembly, room lamp 24215CB - clip, wiring harness 24271E - protector, harness 24302 - harness assembly, door front RH 24303 - harness assembly, door front 24342Q - connector assembly, harness repair 3P 28360U - wire, bonding |
| Applies for models | Manufacture period | Spec |
|---|---|---|

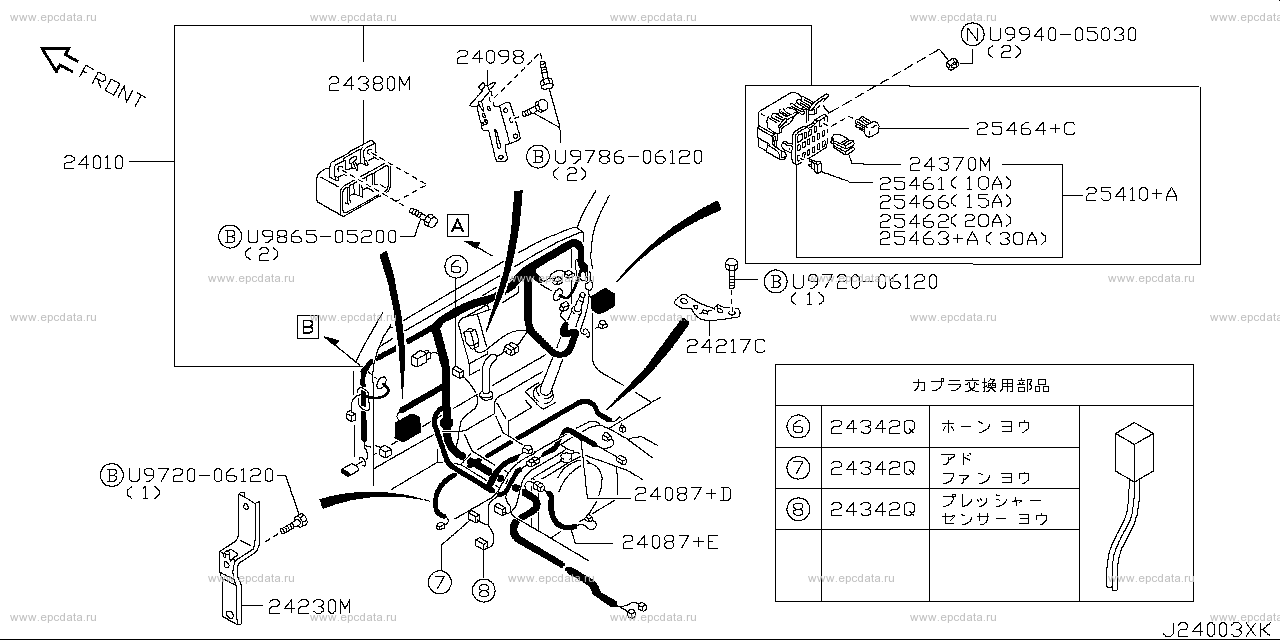

| V | 12.2003 - 08.2007 | ﾀﾞﾂｼﾕ |
| 24010 - harness assembly, main 24087+D - cable, earth 24087+E - cable, earth 24098 - bracket, harness 24217C - bracket, harness clip 24230M - bracket 24342Q - connector assembly, harness repair 3P 24370M - connector assembly, fusible link 24380M - box assembly, relay 25410+A - block assembly, fuse 25461 - fuse,10A 25462 - fuse,20A 25463+A - fuse,30A 25464+C - fuse 25466 - fuse,15A U972006120 U978606120 U986505200 U994005030 |
| Applies for models | Manufacture period | Spec |
|---|---|---|

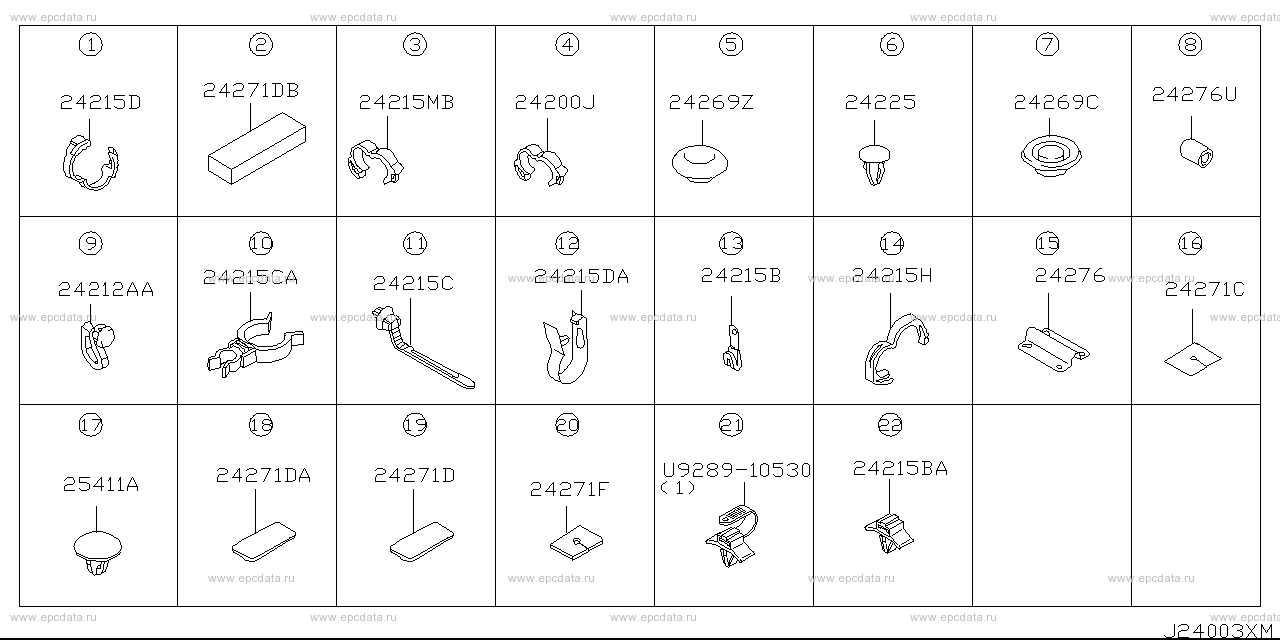

| V | 12.2003 - 08.2007 | ｸﾘﾂﾌﾟ ﾄﾘﾂｹ |

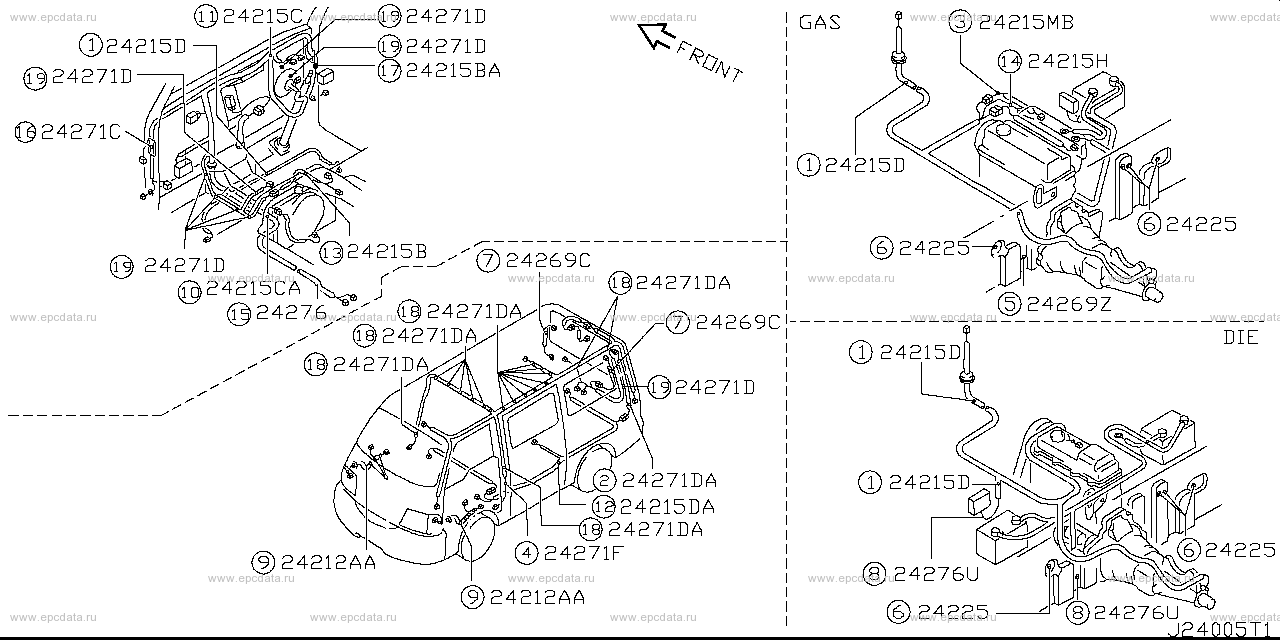

| 24200J - clip, wiring harness 24212AA - clip, wiring harness 24215B - clip, wiring harness 24215BA - clip, wiring harness 24215C - clip, wiring harness 24215CA - clip, wiring harness 24215D - clip, wiring harness 24215DA - clip, wiring harness 24215H - clip, wiring harness 24215MB - clip, wiring harness 24225 - cap, terminal 24269C - plug 24269Z - cover, hole 24271C - protector, harness 24271D - protector, harness 24271DA - protector, harness 24271F - protector, harness 24276 - protector, harness 24276U - protector, harness 25411A - clip U928910530 |
| Applies for models | Manufacture period | Spec |
|---|---|---|

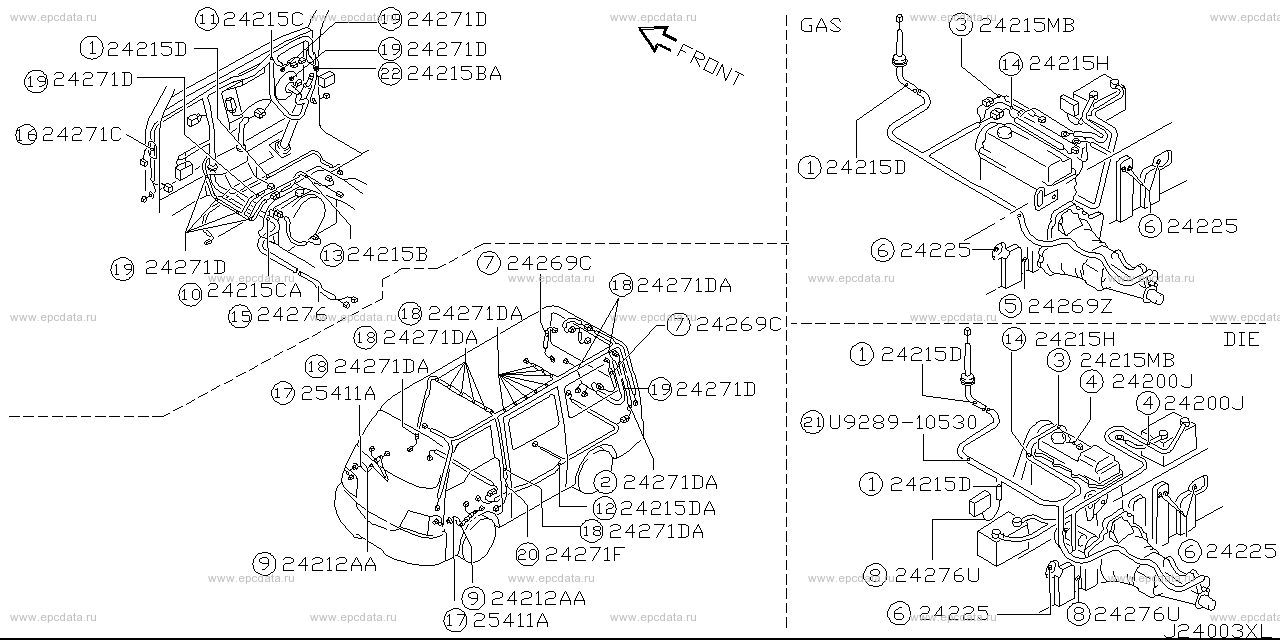

| V | 12.2003 - 08.2007 | ｸﾘﾂﾌﾟ､ﾌﾟﾗｸﾞ |
| 24200J - clip, wiring harness 24212AA - clip, wiring harness 24215B - clip, wiring harness 24215BA - clip, wiring harness 24215C - clip, wiring harness 24215CA - clip, wiring harness 24215D - clip, wiring harness 24215DA - clip, wiring harness 24215H - clip, wiring harness 24215MB - clip, wiring harness 24225 - cap, terminal 24269C - plug 24269Z - cover, hole 24271C - protector, harness 24271D - protector, harness 24271DA - protector, harness 24271DB - protector, harness 24271F - protector, harness 24276 - protector, harness 24276U - protector, harness 25411A - clip U928910530 |
| Applies for models | Manufacture period | Spec |
|---|---|---|

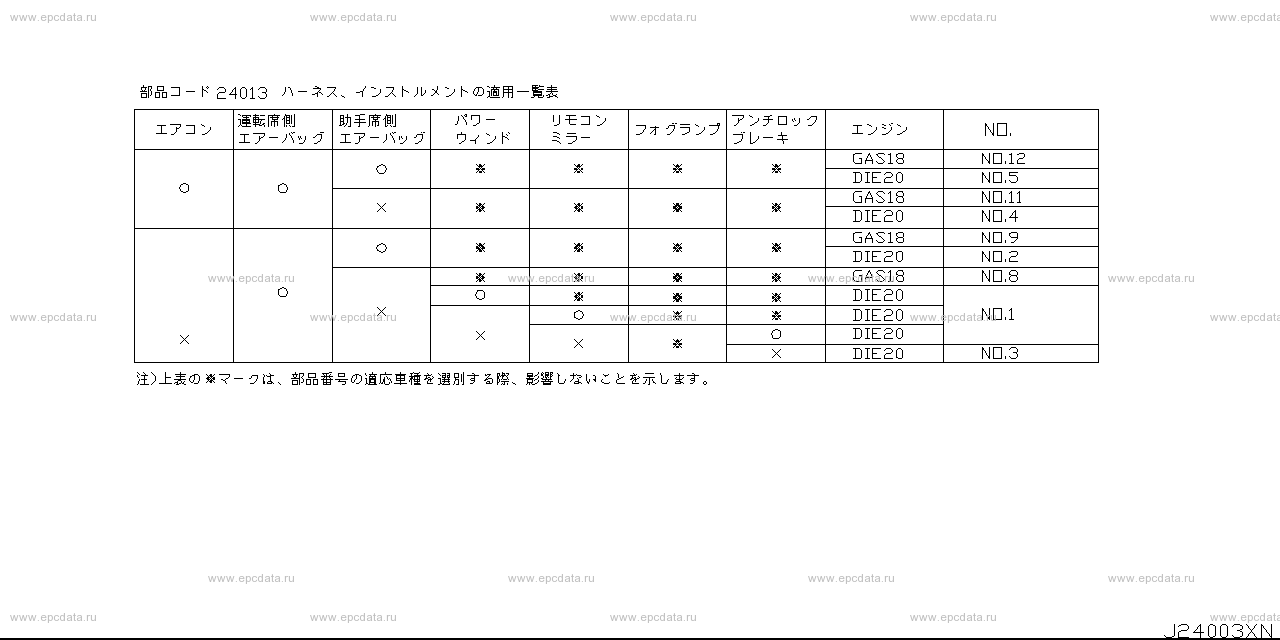

| V | 12.2003 - 08.2007 | ﾊｰﾈｽ｡ｲﾝｽﾄ適用一覧 |
| 24013 - harness assembly, instrument |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| V | 12.2003 - 08.2007 | ﾊｰﾈｽ､ﾌﾛﾝﾄ 適用一覧 |
| 24010 - harness assembly, main |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| V | 08.2007 - ... | ﾀﾞﾂｼﾕ |
| 24010 - harness assembly, main 24087+D - cable, earth 24087+E - cable, earth 24098 - bracket, harness 24217C - bracket, harness clip 24230M - bracket 24342Q - connector assembly, harness repair 3P 24370M - connector assembly, fusible link 24380M - box assembly, relay 25410+A - block assembly, fuse 25461 - fuse,10A 25462 - fuse,20A 25463+A - fuse,30A 25464+C - fuse 25466 - fuse,15A U972006120 U978606120 U986505200 U994005030 |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| V | 08.2007 - ... | body |
| 24013 - harness assembly, instrument 24014E - nut 24014R - harness assembly, chassis 24014W - harness, chassis NO2 24014WA - harness, chassis NO2 24051 - harness, back door 24087+A - cable, earth 24087+B - cable, earth 24087+C - cable, earth 24098E - bracket, harness 24160 - harness assembly, room lamp 24215CB - clip, wiring harness 24271E - protector, harness 24302 - harness assembly, door front RH 24303 - harness assembly, door front 24342Q - connector assembly, harness repair 3P 28360U - wire, bonding U978606160 |
| Applies for models | Manufacture period | Spec |
|---|---|---|

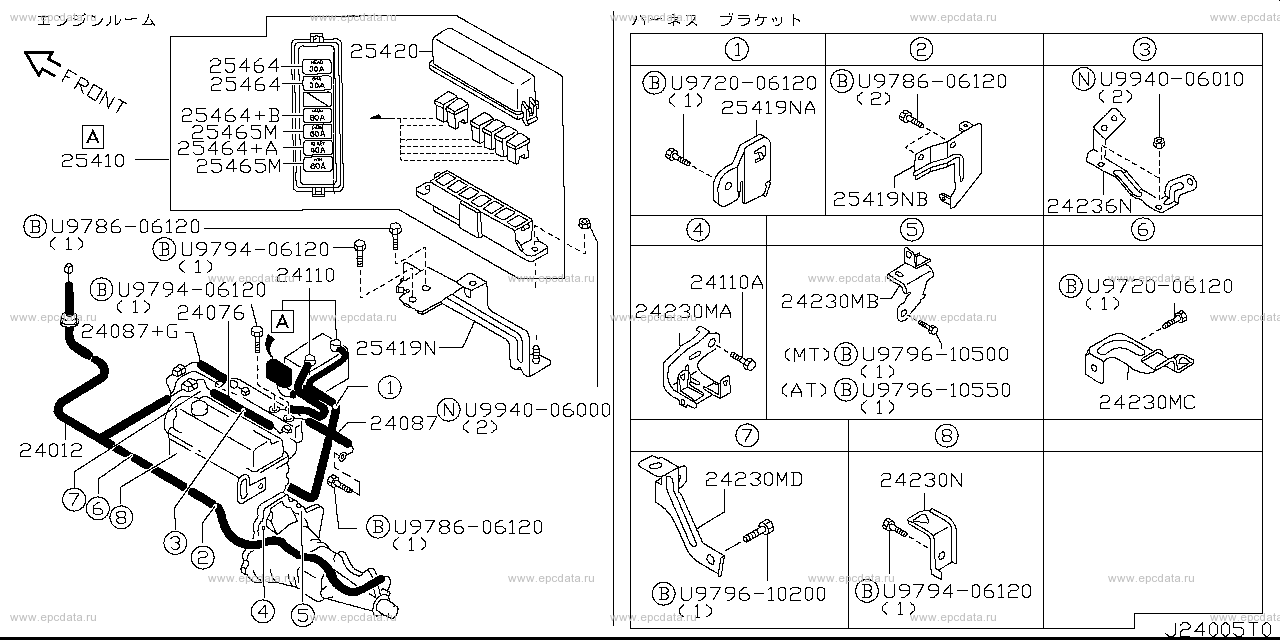

| V.GAS18 | 08.2007 - ... | engine ﾙｰﾑ(GAS18) |
| 24012 - harness assembly, engine room 24076 - harness assembly, engine room sub 24087 - cable, earth 24087+G - cable, earth 24110 - cable assembly, battery to starter motor 24110A - bolt 24230MA - bracket 24230MB - bracket 24230MC - bracket 24230MD - bracket 24230N - bracket 24236N - bracket,EGI harness 25410 - block assembly, fuse 25419N - bracket, fuse block 25419NA - bracket, fuse block 25419NB - bracket, fuse block 25420 - cover, fuse block 25464 - fuse 25464+A - fuse 25464+B - fuse 25465M - fuse U972006120 U978606120 U979406120 U979610200 U979610500 U979610550 U994006000 U994006010 |
| Applies for models | Manufacture period | Spec |
|---|---|---|

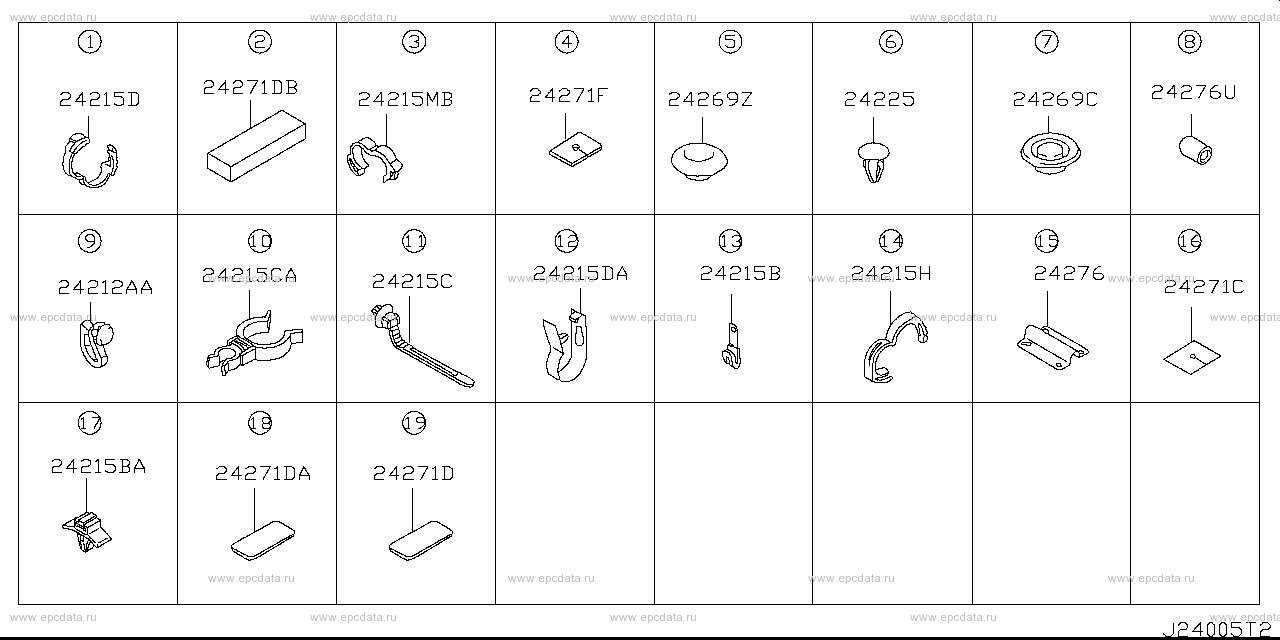

| V | 08.2007 - ... | ｸﾘﾂﾌﾟ ﾄﾘﾂｹ |
| 24212AA - clip, wiring harness 24215B - clip, wiring harness 24215BA - clip, wiring harness 24215C - clip, wiring harness 24215CA - clip, wiring harness 24215D - clip, wiring harness 24215DA - clip, wiring harness 24215H - clip, wiring harness 24215MB - clip, wiring harness 24225 - cap, terminal 24269C - plug 24269Z - cover, hole 24271C - protector, harness 24271D - protector, harness 24271DA - protector, harness 24271F - protector, harness 24276 - protector, harness 24276U - protector, harness |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| V | 08.2007 - ... | ｸﾘﾂﾌﾟ､ﾌﾟﾗｸﾞ |
| 24212AA - clip, wiring harness 24215B - clip, wiring harness 24215BA - clip, wiring harness 24215C - clip, wiring harness 24215CA - clip, wiring harness 24215D - clip, wiring harness 24215DA - clip, wiring harness 24215H - clip, wiring harness 24215MB - clip, wiring harness 24225 - cap, terminal 24269C - plug 24269Z - cover, hole 24271C - protector, harness 24271D - protector, harness 24271DA - protector, harness 24271DB - protector, harness 24271F - protector, harness 24276 - protector, harness 24276U - protector, harness |
