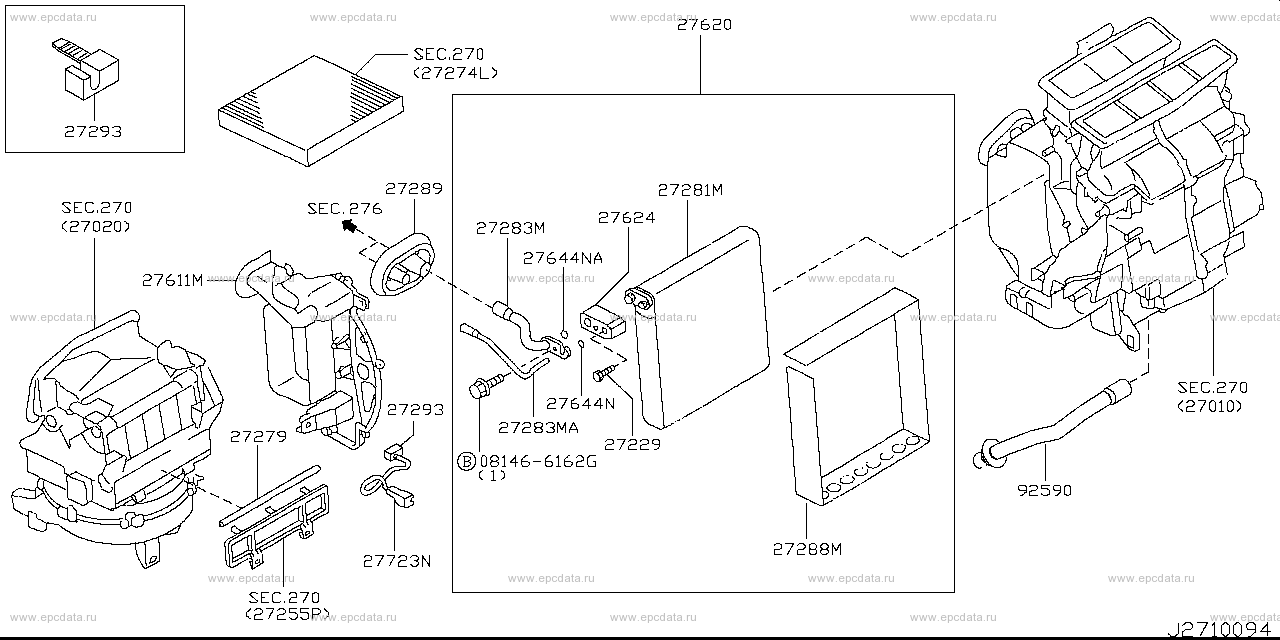

271 - Cooling unit (Denso) for Nissan Teana J31

	Frame / Series J31 / J31 body S (sedan ) engine VQ23DE (VQ23DE engine ) grade JM Manufacture period 02.2003 - ... transmission AT (AT ) drive 2WD (two wheel drive )

---

Applies for models	Manufacture period	Spec
S	06.2004 - 12.2005
S	12.2005 - ...

Open full screen picture Up to the top

081466162G 27229 - bolt, kit 27279 - packing, filter 27281M - evaporator assembly, front 27283M - pipe assembly, cooler in 27283MA - pipe assembly, cooler in 27288M - insulator 27288MA - insulator 27288MB - insulator 27289 - grommet 27293 - bracket, thermistor 27611M - case, cooling unit 27620 - evaporator assembly, cooler 27624 - valve assembly, expansion 27644N - seal,O ring 27644NA - seal,O ring 27723N - sensor assembly, thermistor 92590 - hose, drain

---

Applies for models	Manufacture period	Spec
S	02.2003 - 06.2004

Open full screen picture Up to the top

081466162G 27229 - bolt, kit 27279 - packing, filter 27281M - evaporator assembly, front 27283M - pipe assembly, cooler in 27283MA - pipe assembly, cooler in 27288M - insulator 27289 - grommet 27293 - bracket, thermistor 27611M - case, cooling unit 27620 - evaporator assembly, cooler 27624 - valve assembly, expansion 27644N - seal,O ring 27644NA - seal,O ring 27723N - sensor assembly, thermistor 92590 - hose, drain

Teana J31
