460 - brake master cylinder (chassis) for Nissan Sunny California / Wingroad WFNY10

	Frame / Series WFNY10 / CY10 body W/4D (wagon 4-door ) engine GA15DE (1500 gasoline twincam EGI) drive 4WD (four-wheel drive ) Manufacture period 06.1995 - 05.1996 grade TYPE/B (type B) transmission AT.F4 (automatic transmission 4-speed )

---

Applies for models	Manufacture period	Spec
4WD.GA15DE	06.1995 - 05.1996	サニー カリフォルニア

Open full screen picture Up to the top

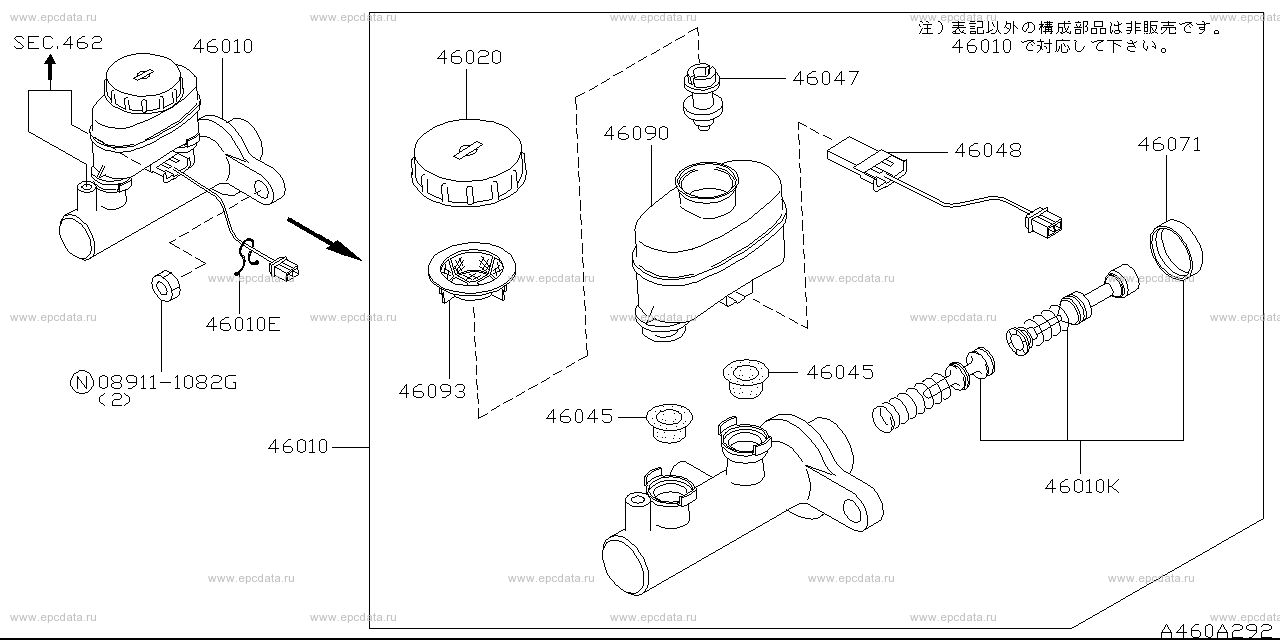

089111082G 46010 - cylinder assembly, brake master 46010E - clip 46010K - piston kit, tandem brake master cylinder 46020 - cap assembly, oil reservoir tank 46045 - seal, reservoir tank 46047 - float, reservoir tank 46048 - indicator assembly, level 46071 - ring, snap 46090 - tank, oil reservoir 46093 - strainer, brake oil

---

Applies for models	Manufacture period	Spec
*GA15DE	06.1995 - 05.1996	ｱﾝﾁ ｽｷｯﾄﾞ付き(ｻﾆｰ ｶﾘﾌｫﾙﾆｱ)

Open full screen picture Up to the top

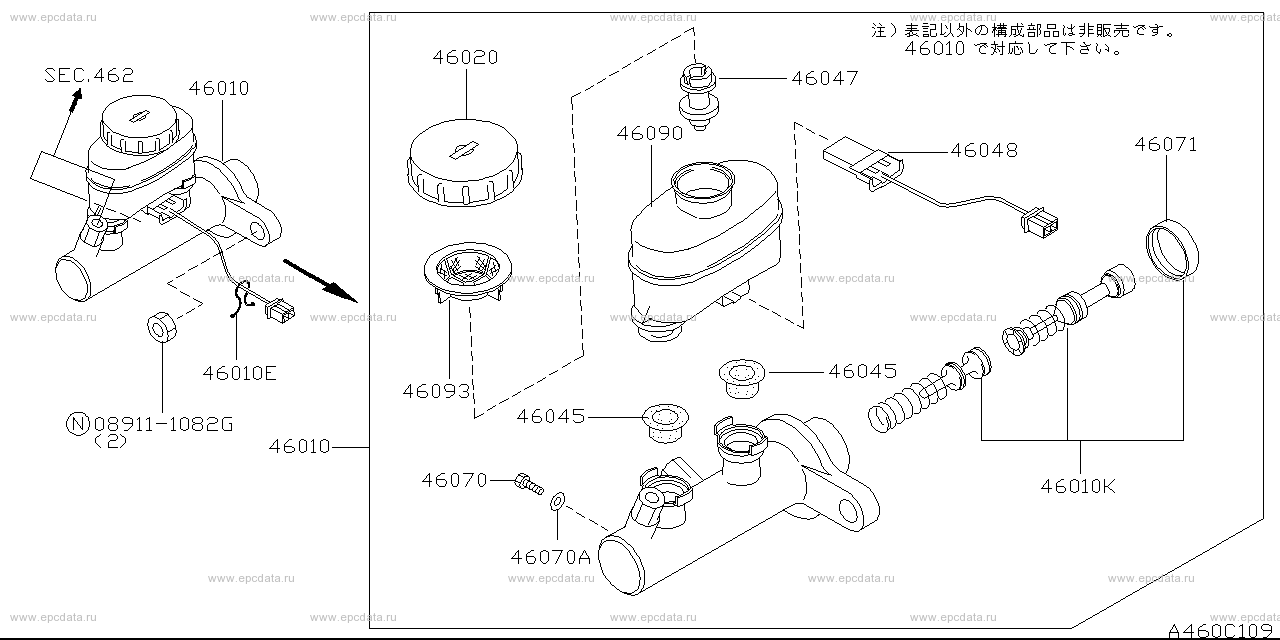

089111082G 46010 - cylinder assembly, brake master 46010E - clip 46010K - piston kit, tandem brake master cylinder 46020 - cap assembly, oil reservoir tank 46045 - seal, reservoir tank 46047 - float, reservoir tank 46048 - indicator assembly, level 46070 - screw, stopper 46070A - packing, stopper screw 46071 - ring, snap 46090 - tank, oil reservoir 46093 - strainer, brake oil

Sunny California / Wingroad WFNY10
