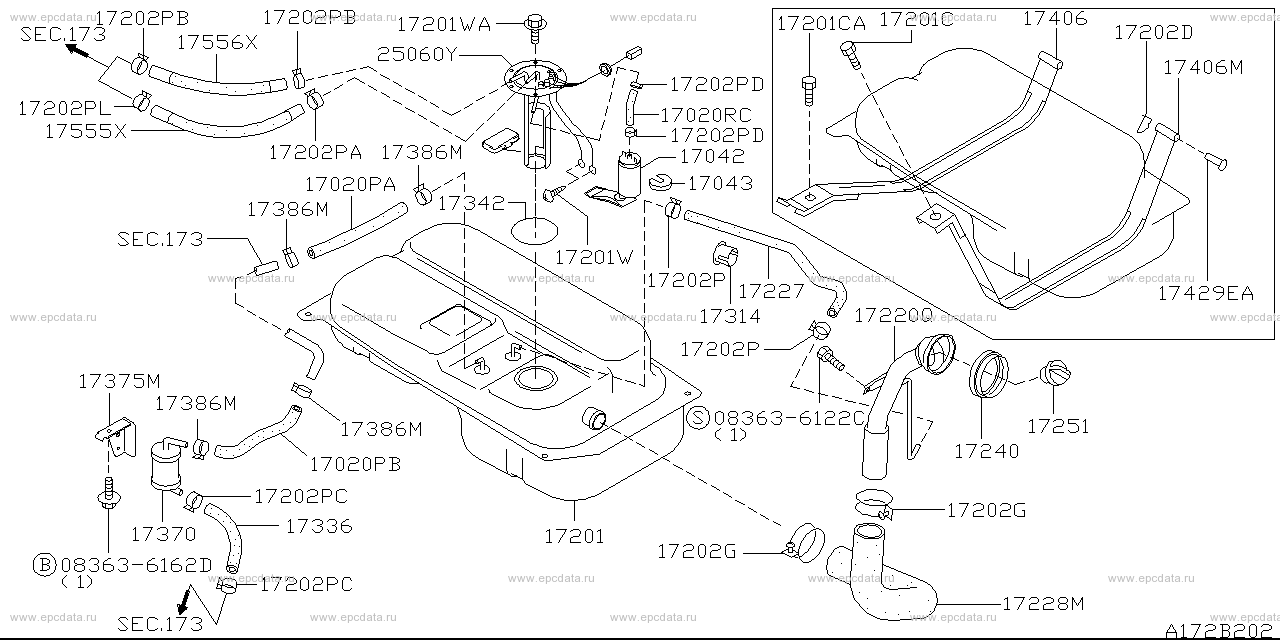

172 - fuel tank (chassis) for Nissan Sunny California / Wingroad WFNY10

	Frame / Series WFNY10 / CY10 body W/4D (wagon 4-door ) engine GA15DE (1500 gasoline twincam EGI) drive 4WD (four-wheel drive ) Manufacture period 06.1995 - 05.1996 grade TYPE/B (type B) transmission AT.F4 (automatic transmission 4-speed )

Applies for models	Manufacture period	Spec
4WD.GA15DE	06.1995 - 05.1996	サニー カリフォルニア

Open full screen picture

083636122C 083636162D 17020PA - tube, vinyl flexible 17020PB - tube, vinyl flexible 17020RC - hose, fuel 17042 - pump assembly, fuel 17043 - support, pump rubber 17201 - tank assembly, fuel 17201C - bolt 17201CA - bolt 17201W - screw 17201WA - screw 17202D - pin, snap 17202G - clamp 17202P - clamp 17202PA - clamp 17202PB - clamp 17202PC - clamp 17202PD - clamp 17202PL - clamp 17220Q - tube assembly, filler 17227 - hose, ventilation 17228M - hose, filler 17240 - grommet, filler base 17251 - cap assembly, filler 17314 - grommet 17336 - hose, evaporation 17342 - seal,O ring fuel gauge 17370 - valve assembly, check 17375M - bracket, roll over valve 17386M - clamp, hose 17406 - band assembly, fuel tank mounting 17406M - band assembly, fuel tank mounting 17429EA - pin, fuel tank mounting 17555X - hose, fuel 17556X - hose, fuel 25060Y - sender unit, fuel gauge

Sunny California / Wingroad WFNY10
