NissanSunny California / WingroadWFNY1006.1995 - 05.1996Electrics272 - control unit (heater, air conditioner) (Denso)

272 - control unit (heater, air conditioner) (Denso) for Nissan Sunny California / Wingroad WFNY10



Frame / SeriesWFNY10 / CY10 body W/4D (wagon 4-door )engine GA15DE (1500 gasoline twincam EGI)drive 4WD (four-wheel drive )
Manufacture period06.1995 - 05.1996grade TYPE/B (type B)transmission AT.F4 (automatic transmission 4-speed )


Scheme 272-_001 Scheme 272-_002 Scheme 272-_003
Applies for modelsManufacture periodSpec
W/4D06.1995 - 05.1996ｽﾀﾝﾀﾞｰﾄﾞ ｴｱｺﾝ (ｻﾆｰ ｶﾘﾌｫﾙﾆｱ)

Open full screen pictureOpen full screen picture
Up to the top

27130 - control assembly
27130C - screw
27139M - switch assembly, air conditioner
27140 - switch, fan
27145N - cable, temperature control
27148 - knob, control
27156 - clamp, cable
27512 - amplifier, control
27519M - case, control
27520M - base, control
27521P - cover, control
27545M - lamp assembly, heater control
27545MA - lamp assembly, heater control
27545MB - lamp assembly, heater control
27555 - lens, heater control
27555+A - lens, heater control
27561 - button, air conditioner
27561MA - button, ventilator
27561MB - button, ventilator
27561N - button, bi-level
27561P - button, foot
27561Q - button, defroster foot
27561R - button, defroster
27561U - button, recirc
27570 - mask assembly, control
27572 - panel, finisher
27572+A - panel, finisher
27654Q - lever, temp control
27654QA - lever, temp control
Applies for modelsManufacture periodSpec
W/4D06.1995 - 05.1996ｵｰﾄ ｴｱｺﾝ (ｻﾆｰ ｶﾘﾌｫﾙﾆｱ)

Open full screen pictureOpen full screen picture
Up to the top

27054M - sensor, in-car
27062E - bracket, relay
27062Y - relay
27130 - control assembly
27130C - screw
27139M - switch assembly, air conditioner
27140 - switch, fan
27148 - knob, control
27148+A - knob, control
27512 - amplifier, control
27519M - case, control
27520M - base, control
27521P - cover, control
27545M - lamp assembly, heater control
27545MA - lamp assembly, heater control
27545MB - lamp assembly, heater control
27555 - lens, heater control
27555+A - lens, heater control
27561 - button, air conditioner
27561MA - button, ventilator
27561MB - button, ventilator
27561N - button, bi-level
27561P - button, foot
27561Q - button, defroster foot
27561R - button, defroster
27561U - button, recirc
27572 - panel, finisher
27572+A - panel, finisher
27621E - duct, aspirator
27630M - resistance assembly,PTC
27705 - sensor assembly, sun
27726N - amplifier, control air conditioner
27765E - bracket, control
Applies for modelsManufacture periodSpec

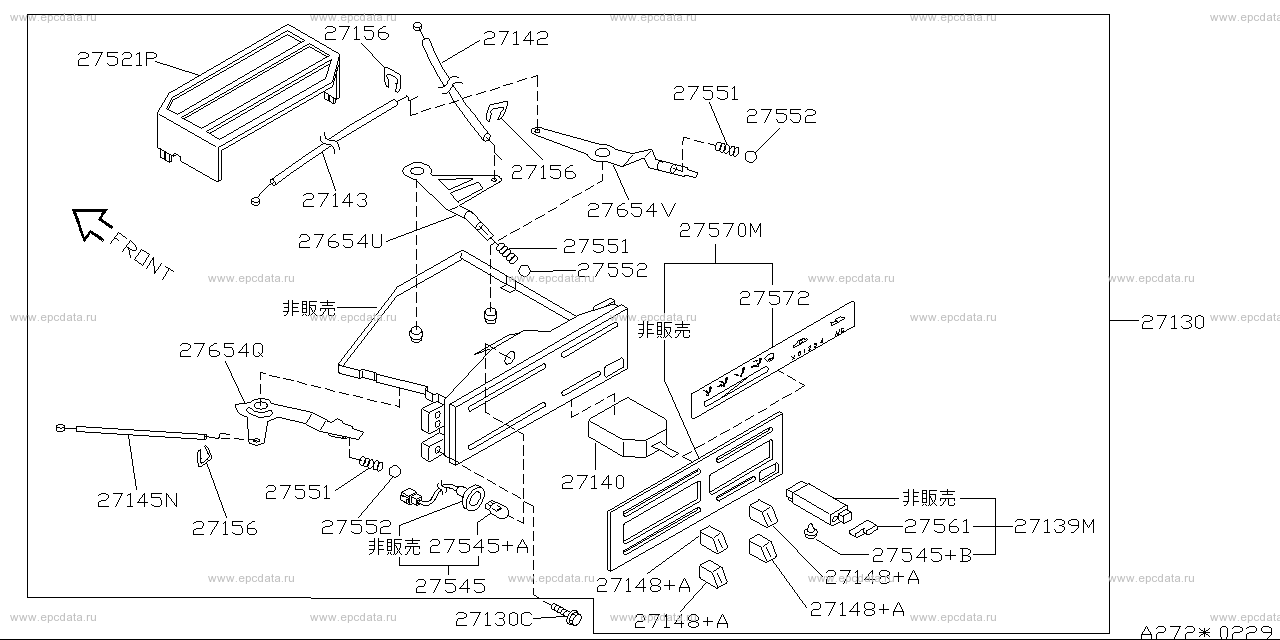

W/4D06.1995 - 05.1996manual ｴｱｺﾝ(ﾚﾊﾞｰ式) (ｻﾆｰ ｶﾘﾌｫﾙﾆｱ)

Open full screen pictureOpen full screen picture
Up to the top

27130 - control assembly
27130C - screw
27139M - switch assembly, air conditioner
27140 - switch, fan
27142 - cable, control mode door
27143 - cable, control air intake door
27145N - cable, temperature control
27148+A - knob, control
27156 - clamp, cable
27521P - cover, control
27545 - lamp assembly, heater control
27545+A - lamp assembly, heater control
27545+B - lamp assembly, heater control
27551 - spring
27552 - ball
27561 - button, air conditioner
27570M - finisher assembly, control
27572 - panel, finisher
27654Q - lever, temp control
27654U - lever, mode
27654V - lever, intake
