270 - heater & blower unit (Denso) for Nissan Sunny California / Wingroad WFNY10

	Frame / Series WFNY10 / CY10 body W/4D (wagon 4-door ) engine GA15DE (1500 gasoline twincam EGI) drive 4WD (four-wheel drive ) Manufacture period 06.1995 - 05.1996 grade TYPE/B (type B) transmission AT.F4 (automatic transmission 4-speed )

---

Applies for models	Manufacture period	Spec
W/4D	06.1995 - 05.1996	ﾋ-ﾀｰ(ｵｰﾄ ｴｱｺﾝ用) (ｻﾆｰ ｶﾘﾌｫﾙﾆｱ)

Open full screen picture Up to the top

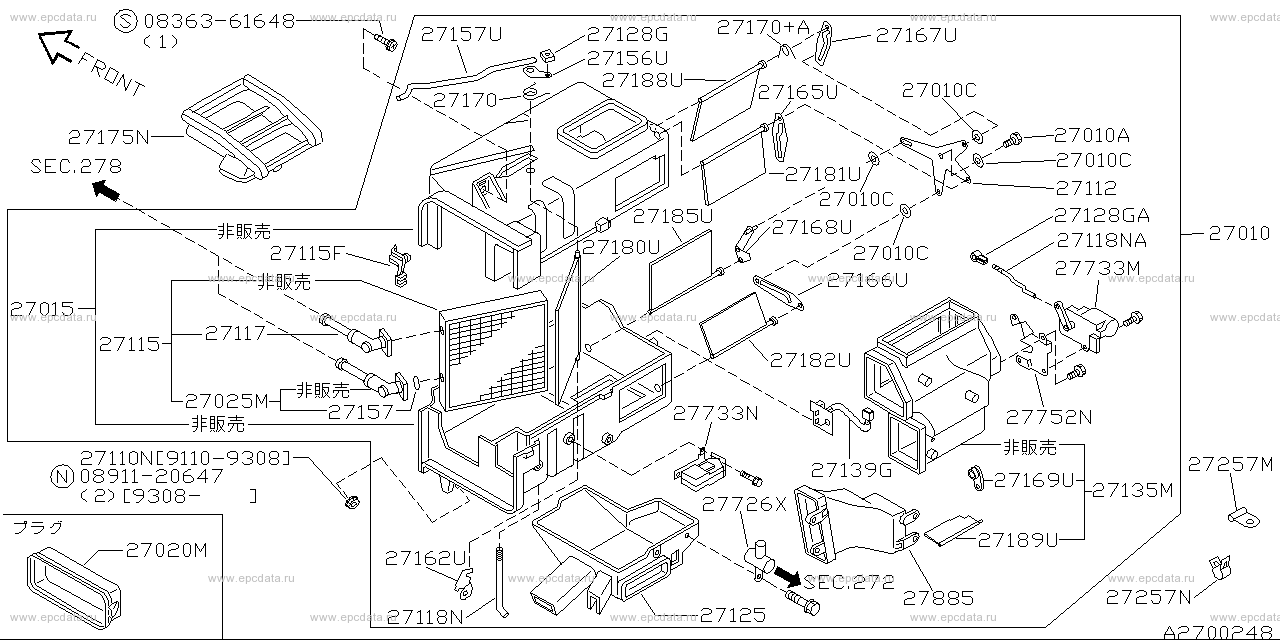

0836361648 0891120647 27010 - heating unit assembly, front 27010A - screw 27010C - washer 27015 - case assembly, front heater 27020M - plug 27025M - tube, water 27110N - nut 27112 - link assembly, side 27115 - core assembly, front heater 27115F - support, heater core 27117 - cock assembly, front heater 27118N - rod 27118NA - rod 27125 - duct assembly, foot 27128G - holder, rod 27128GA - holder, rod 27135M - duct assembly, vent 27139G - switch assembly, mode 27156U - lever, air mix door 27157 - packing 27157U - lever, heater cock 27162U - lever, air mix door 27165U - lever, vent 27166U - lever, vent NO.2 27167U - lever, diff 27168U - lever, foot 27169U - lever assembly, fresh vent 27170 - spring, mix 27170+A - spring, mix 27175N - duct assembly, defroster 27180U - door, front heater 27181U - door assembly, vent NO.1 27182U - door assembly, vent NO.2 27185U - door assembly, foot 27188U - door assembly, diff 27189U - door assembly, fresh vent 27257M - clamp 27257N - clamp 27726X - aspirator 27733M - actuator assembly, mode 27733N - actuator assembly, air mix 27752N - bracket, actuator 27885 - duct, bypass

---

Applies for models	Manufacture period	Spec
W/4D	06.1995 - 05.1996	ﾌﾞﾛｱｰ(ｵｰﾄ ｴｱｺﾝ用) (ｻﾆｰ ｶﾘﾌｫﾙﾆｱ)

Open full screen picture Up to the top

0836361648 0891120647 27020 - blower assembly, front 27020B - nut 27021 - case, blower 27070 - motor & fan assembly, blower 27072 - fan, blower - 27077 - resistance, electric 27080 - actuator, air intake 27080G - bracket, actuator 27128W - rod, air door NO 6 27156M - clamp, cable 27173W - holder, rod 27228 - hose, motor 27238 - bell mouth, intake 27245P - door, intake blower front 27245V - clip 27250P - lever assembly, intake door front 27255P - shaft, door intake blower 27620N - timer assembly

---

Applies for models	Manufacture period	Spec
W/4D	06.1995 - 05.1996	ﾋｰﾀｰ(manual ｴｱｺﾝ用) (ｻﾆｰ ｶﾘﾌｫﾙﾆｱ)

Open full screen picture Up to the top

0836361648 27010 - heating unit assembly, front 27010A - screw 27010C - washer 27015 - case assembly, front heater 27020M - plug 27025M - tube, water 27110N - nut 27112 - link assembly, side 27115 - core assembly, front heater 27115F - support, heater core 27117 - cock assembly, front heater 27118N - rod 27118NA - rod 27125 - duct assembly, foot 27128G - holder, rod 27128GA - holder, rod 27135M - duct assembly, vent 27139G - switch assembly, mode 27156U - lever, air mix door 27156Y - clip 27157 - packing 27157U - lever, heater cock 27162U - lever, air mix door 27165U - lever, vent 27166U - lever, vent NO.2 27167U - lever, diff 27168U - lever, foot 27169U - lever assembly, fresh vent 27170 - spring, mix 27170+A - spring, mix 27172N - ｼ-ﾄ 27175N - duct assembly, defroster 27180U - door, front heater 27181U - door assembly, vent NO.1 27182U - door assembly, vent NO.2 27185U - door assembly, foot 27188U - door assembly, diff 27189U - door assembly, fresh vent 27245E - clip 27885 - duct, bypass

---

Applies for models	Manufacture period	Spec
W/4D	06.1995 - 05.1996	ﾌﾞﾛｱｰ(manual ｴｱｺﾝ用) (ｻﾆｰ ｶﾘﾌｫﾙﾆｱ)

Open full screen picture Up to the top

0836361648 0891120647 27020 - blower assembly, front 27021 - case, blower 27064 - spring, intake door 27070 - motor & fan assembly, blower 27072 - fan, blower - 27077 - resistance, electric 27128W - rod, air door NO 6 27156M - clamp, cable 27228 - hose, motor 27238 - bell mouth, intake 27245P - door, intake blower front 27245V - clip 27250P - lever assembly, intake door front 27250Q - lever 27255P - shaft, door intake blower 27620N - timer assembly

Sunny California / Wingroad WFNY10
