NissanSunny California / WingroadWFNY1006.1995 - 05.1996Electrics265 - rear combination lamp (Denso)

265 - rear combination lamp (Denso) for Nissan Sunny California / Wingroad WFNY10



Frame / SeriesWFNY10 / CY10 body W/4D (wagon 4-door )engine GA15DE (1500 gasoline twincam EGI)drive 4WD (four-wheel drive )
Manufacture period06.1995 - 05.1996grade TYPE/B (type B)transmission AT.F4 (automatic transmission 4-speed )

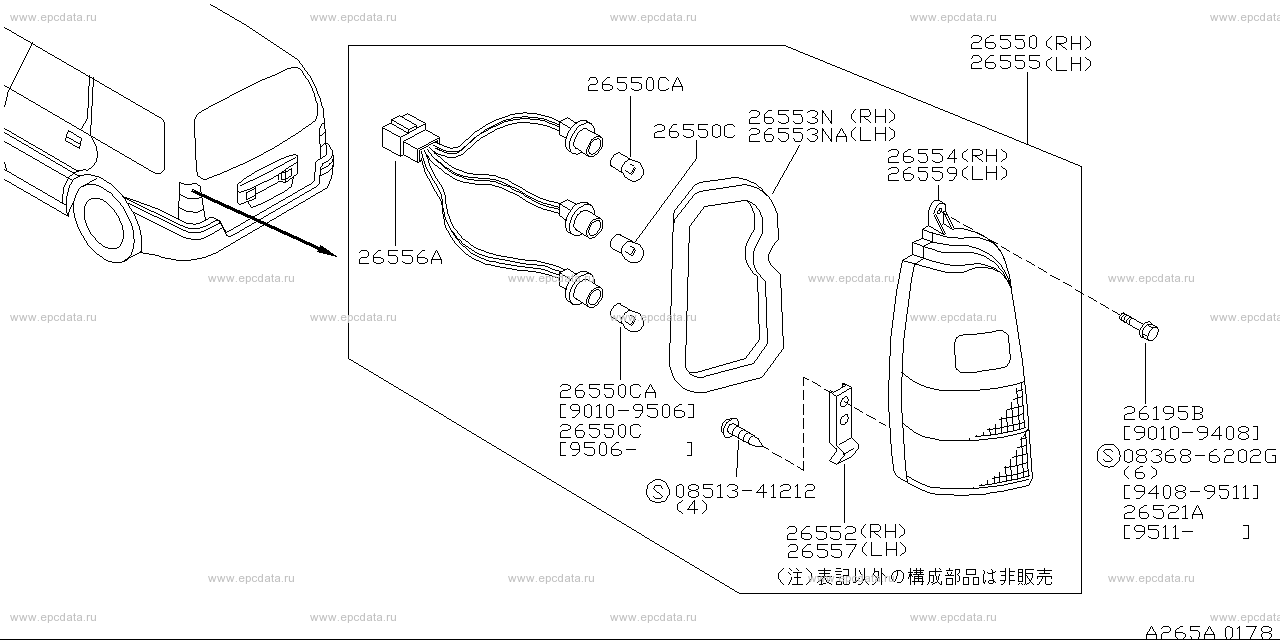

Scheme 265A_001 Scheme 265A_002
Applies for modelsManufacture periodSpec
W/4D06.1995 - 05.1996rear ｺﾝﾋﾞ lamp (ｻﾆｰ ｶﾘﾌｫﾙﾆｱ)

Open full screen pictureOpen full screen picture
Up to the top

083686202G
0851341212
26195B - screw
26521A - bolt
26550 - lamp assembly, rear combination RH
26550C - ﾊﾞﾙﾌﾞ
26550CA - ﾊﾞﾙﾌﾞ
26552 - rim, combination lamp RH
26553N - packing, lamp
26553NA - packing, lamp
26554 - body assembly, combination lamp RH
26555 - lamp assembly, rear combination LH
26556A - socket assembly, rear combination lamp RH
26557 - rim, combination lamp LH
26559 - body assembly, combination lamp LH
Applies for modelsManufacture periodSpec
W/4D06.1995 - 05.1996ﾊﾞｯｸ ｱｯﾌﾟ lamp (ｻﾆｰ ｶﾘﾌｫﾙﾆｱ)

Open full screen pictureOpen full screen picture
Up to the top

085134105A
26540G - nut
26540H - socket assembly
26540J - ﾊﾞﾙﾌﾞ
26540Q - lamp assembly, back up RH
26543M - packing
26545Q - lamp assembly, back up LH

Nissan Sunny California / Wingroad genuine parts
