248 - meter & clock (Denso) for Nissan Sunny California / Wingroad WFNY10

	Frame / Series WFNY10 / CY10 body W/4D (wagon 4-door ) engine GA15DE (1500 gasoline twincam EGI) drive 4WD (four-wheel drive ) Manufacture period 06.1995 - 05.1996 grade TYPE/B (type B) transmission AT.F4 (automatic transmission 4-speed )

---

Applies for models	Manufacture period	Spec
W/4D	06.1995 - 05.1996	front ｳﾞｭｰ (ｻﾆｰ ｶﾘﾌｫﾙﾆｱ)

Open full screen picture Up to the top

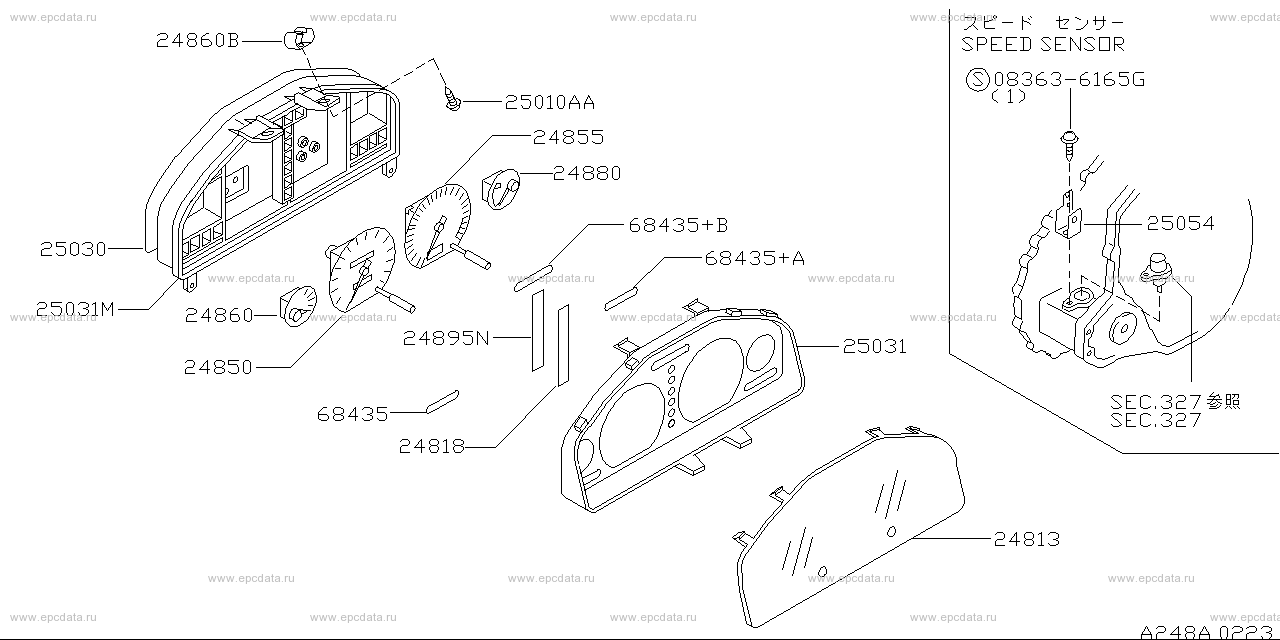

083636165G 24813 - cover, front meter 24818 - guide, light 24850 - speedometer assembly 24855 - tachometer assembly 24860 - meter assembly, fuel 24860B - nut 24880 - meter assembly, water temperature 24895N - lens 25010AA - bolt 25030 - plate assembly, printed circuit 25031 - housing, meter combination upper 25031M - housing, meter combination lower 25054 - bracket, speedometer cable clip 68435 - lens, warning lamp 68435+A - lens, warning lamp 68435+B - lens, warning lamp

---

Applies for models	Manufacture period	Spec
W/4D	06.1995 - 05.1996	rear ｳﾞｭｰ (ｻﾆｰ ｶﾘﾌｫﾙﾆｱ)

Open full screen picture Up to the top

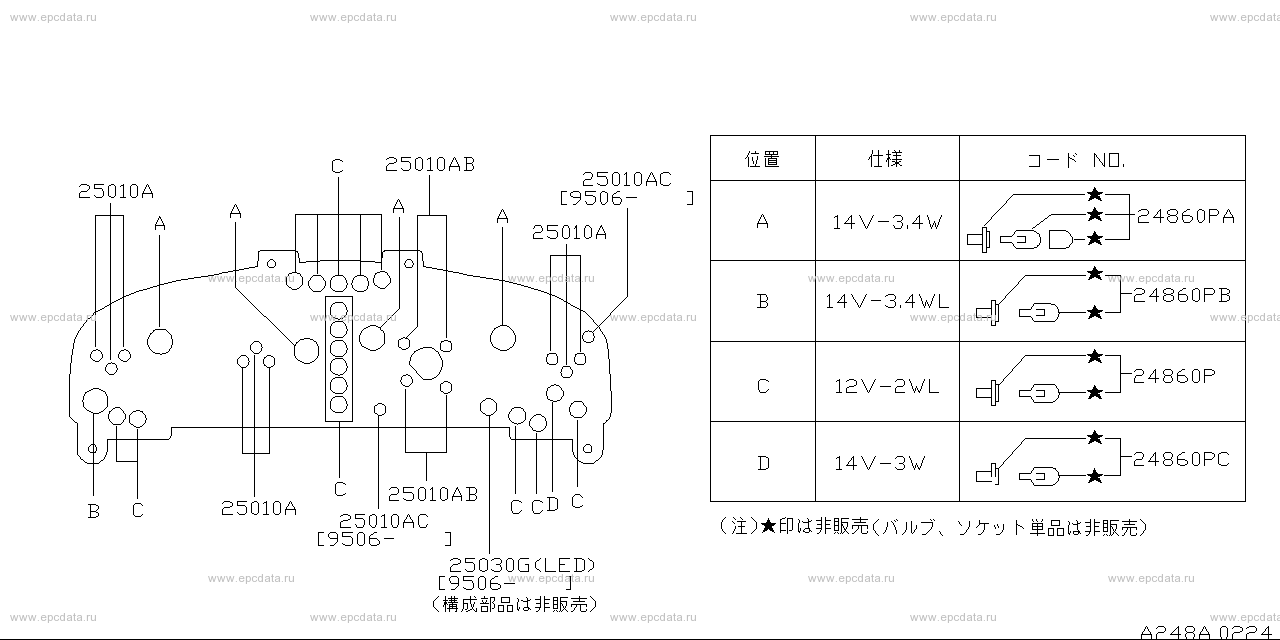

24860P - socket & valve assembly 24860PA - socket & valve assembly 24860PB - socket & valve assembly 24860PC - socket & valve assembly 25010A - bolt 25010AB - bolt 25010AC - bolt 25030G - LED, warning

Sunny California / Wingroad WFNY10
