240 - wiring (Denso) for Nissan Sunny California / Wingroad WFNY10

	Frame / Series WFNY10 / CY10 body W/4D (wagon 4-door ) engine GA15DE (1500 gasoline twincam EGI) drive 4WD (four-wheel drive ) Manufacture period 06.1995 - 05.1996 grade TYPE/B (type B) transmission AT.F4 (automatic transmission 4-speed )

---

Applies for models	Manufacture period	Spec
W/4D	06.1995 - 05.1996	engine ﾙｰﾑ (ｻﾆｰ ｶﾘﾌｫﾙﾆｱ)

Open full screen picture Up to the top

083636165G 083636305C 24012 - harness assembly, engine room 24020 - harness assembly, alternator 24077M - harness assembly, engine 24078 - harness assembly,EGI 24080 - cable assembly, battery earth 24110 - cable assembly, battery to starter motor 24236P - bracket, connector 24370 - connector assembly, fusible link 24381 - housing, fusible link holder 24382V - cover, relay box 24382VA - cover, relay box 24383P - housing, relay box 25233H - cover, relay box 25413F - cover, fusible link 25418M - bracket, fusible link holder

---

Applies for models	Manufacture period	Spec

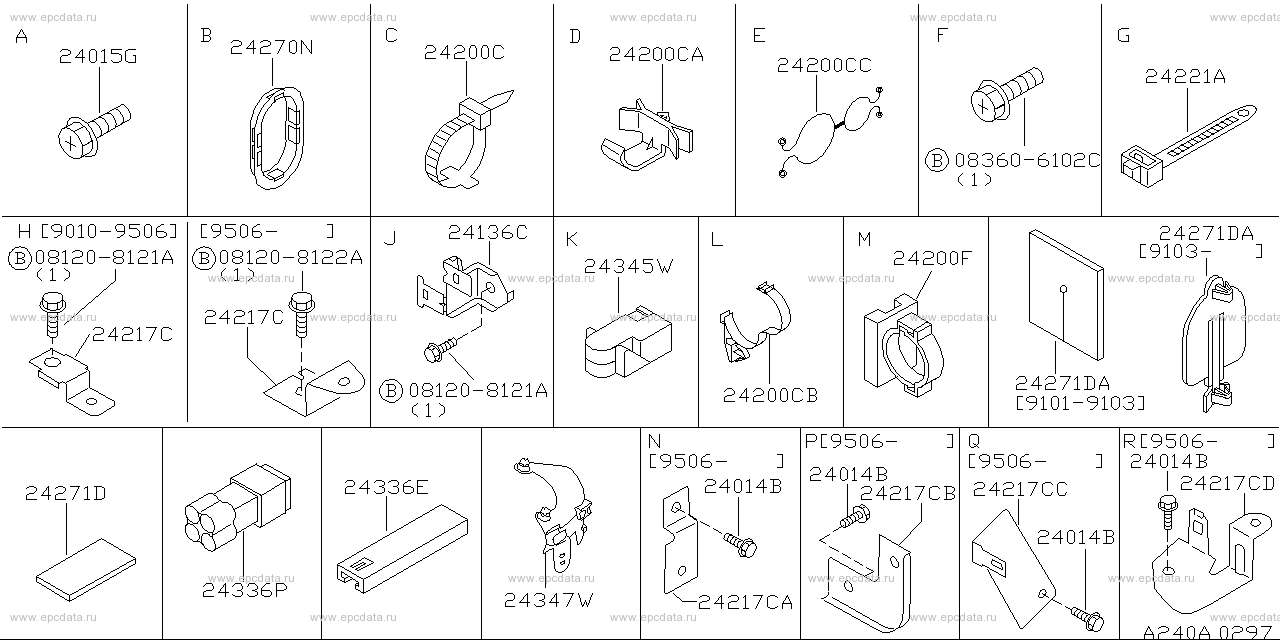

W/4D	06.1995 - 05.1996	ﾌｨｯﾃｨﾝｸﾞ ﾊﾟｰﾂ(engine ﾙｰﾑ) (ｻﾆｰ ｶﾘﾌｫﾙﾆｱ)

Open full screen picture Up to the top

081208121A 081208122A 083606102C 24014B - screw 24015G - screw 24136C - bracket, connector 24200C - clip, wiring harness 24200CA - clip, wiring harness 24200CB - clip, wiring harness 24200CC - clip, wiring harness 24200F - clip, wiring harness 24217C - bracket, harness clip 24217CA - bracket, harness clip 24217CB - bracket, harness clip 24217CC - bracket, harness clip 24217CD - bracket, harness clip 24221A - clip, wiring harness 24270N - protector, harness 24271D - protector, harness 24271DA - protector, harness 24336E - register 24336P - register & condenser 24345W - cover, connector 24347W - clip, connector

---

Applies for models	Manufacture period	Spec

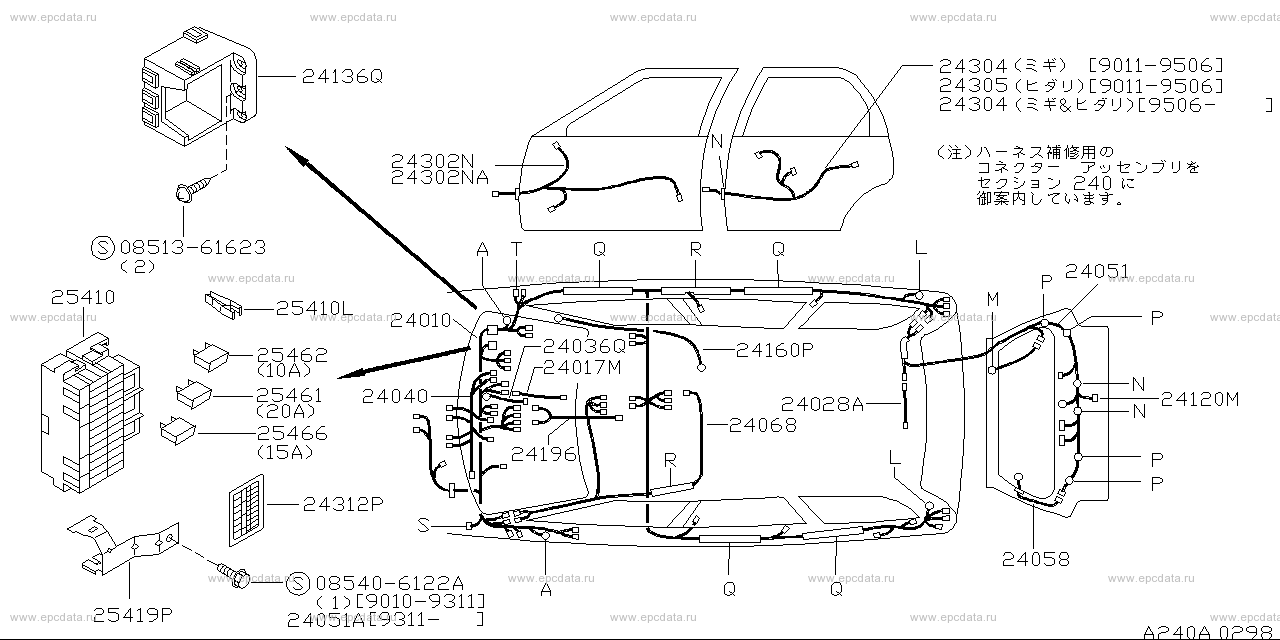

W/4D	06.1995 - 05.1996	ボデイ （サニー カリフォルニア）

Open full screen picture Up to the top

0851361623 085406122A 24010 - harness assembly, main 24017M - harness, body NO2 24028A - harness, sub 24036Q - harness, audio 24040 - harness assembly, air conditioner 24051 - harness, back door 24051A - screw 24058 - harness, defogger rear 24068 - harness, roof 24120M - harness, door lock 24136Q - bracket assembly, connector 24160P - harness, sunroof 24196 - harness, stereo 24302N - harness assembly, door front 24302NA - harness assembly, door front 24304 - harness assembly, door rear 24305 - harness assembly, door rear LH 24312P - label, fuse block 25410 - block assembly, fuse 25410L - block assembly, fuse 25419P - bracket, fuse block 25461 - fuse,10A 25462 - fuse,20A 25466 - fuse,15A

---

Applies for models	Manufacture period	Spec
W/4D	06.1995 - 05.1996	ﾌｨｯﾃｨﾝｸﾞ ﾊﾟｰﾂ(body) (ｻﾆｰ ｶﾘﾌｫﾙﾆｱ)

Open full screen picture Up to the top

0831061012 24014R - harness assembly, chassis 24014X - harness, chassis 24015D - screw 24016D - connector assembly 24040+A - harness assembly, air conditioner 24202B - clip, wiring harness 24202BA - clip, wiring harness 24212B - clip, wiring harness 24215M - clip, wiring harness 24227G - clip, wiring harness 24227R - fastener 24276 - protector, harness 24276+A - protector, harness 28351M - condenser, ignition coil

---

Applies for models	Manufacture period	Spec
W/4D	06.1995 - 05.1996	バッテリー 回り

Open full screen picture Up to the top

24012 - harness assembly, engine room 24015G - screw 24080 - cable assembly, battery earth 24110 - cable assembly, battery to starter motor 24345W - cover, connector

---

Applies for models	Manufacture period	Spec
W/4D	06.1995 - 05.1996	ｺﾈｸﾀｰASSY,ﾘﾍﾟｱｰ (ｻﾆｰ ｶﾘﾌｫﾙﾆｱ)

Open full screen picture Up to the top

24342N - connector assembly, harness repair 1P 24342NA - connector assembly, harness repair 1P 24342PA - connector assembly, harness repair 2P 24342PB - connector assembly, harness repair 2P 24342PC - connector assembly, harness repair 2P 24342Q - connector assembly, harness repair 3P 24342QA - connector assembly, harness repair 3P 24342QB - connector assembly, harness repair 3P 24342R - connector assembly, harness repair 4P 24342RA - connector assembly, harness repair 4P 24342RB - connector assembly, harness repair 4P 24342RC - connector assembly, harness repair 4P 24342RD - connector assembly, harness repair 4P 24342RE - connector assembly, harness repair 4P 24342RF - connector assembly, harness repair 4P 24342U - connector assembly, harness repair 5P 24342UA - connector assembly, harness repair 5P 24342UB - connector assembly, harness repair 5P 24342V - harness assembly, harness repair 6P 24342VA - harness assembly, harness repair 6P 24342VB - harness assembly, harness repair 6P 24342VC - harness assembly, harness repair 6P 24342Z - connector assembly, harness repair 24342ZA - connector assembly, harness repair

Sunny California / Wingroad WFNY10
