NissanSunnyB1209.1987 - ...ElectricsG2732 - heater, cooler & air conditioner (fitting) (Denso) 27561M: button, ventilator

G2732 - heater, cooler & air conditioner (fitting) (Denso) for Nissan Sunny B12



Frame / SeriesB12 / B12 body S (sedan )engine E13S (1300 gasoline single cab )grade E/SAL (extra saloon )
Manufacture period09.1987 - ...transmission AT (automatic transmission )ｼﾌﾄﾀﾞﾝｽｳF3 (3-speed )drive 2WD (two-wheel drive (FF))





27561M: button, ventilator

OEM part numberRequired
per car		 Production periodSpecCode ExteriorInterior Applies for models Notes Replacements Please order in advance In stock
2756253E000109.1987 - ...*ALLpush type control
3.29 USD


Scheme G2732001 Scheme G2732002 Scheme G2732003 Scheme G2732004
Applies for modelsManufacture periodSpec
S +W +3HB09.1985 - ...スライド式 コントロール

Open full screen pictureOpen full screen picture
Up to the top

27130 - control assembly
27130A - screw
27135J - ﾊﾞﾙﾌﾞ
27137 - valve, control
27139E - mask, switch
27139M - switch assembly, air conditioner
27140 - switch, fan
27142 - cable, control mode door
27143 - cable, control air intake door
27145 - cable, control water cock
27148 - knob, control
27156 - clamp, cable
27864 - finisher, rear heater control
Applies for modelsManufacture periodSpec
S +W +3HB09.1985 - ...ダクト

Open full screen pictureOpen full screen picture
Up to the top

0851061223
0851361697
27139 - switch assembly, mode
27172 - duct, heater floor rear RH
27173 - duct, heater floor rear LH
27174 - duct, heater floor
27665 - duct, ventilator RH
27665A - screw
27666 - duct, ventilator LH
27670 - duct, ventilator center
27770M - duct, center
Applies for modelsManufacture periodSpec
*ALL09.1985 - ...オート エアコン

Open full screen pictureOpen full screen picture
Up to the top

0831351698
27054F - finisher, in-car sensor
27054M - sensor, in-car
27705 - sensor assembly, sun
Applies for modelsManufacture periodSpec

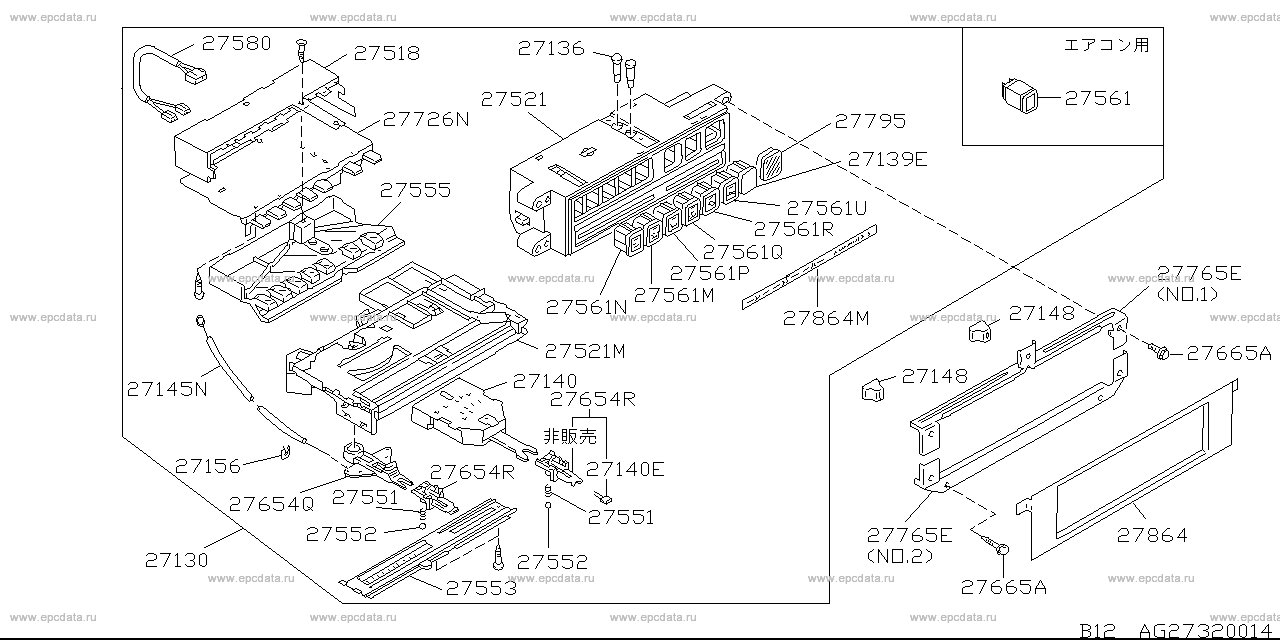

*(S+W+3HB+K)09.1987 - ...プッシュ式 コントロール

Open full screen pictureOpen full screen picture
Up to the top

27130 - control assembly
27136 - valve assembly, control
27139E - mask, switch
27140 - switch, fan
27140E - diode, light emitting
27145N - cable, temperature control
27148 - knob, control
27156 - clamp, cable
27518 - case, control
27521 - box assembly, control
27521M - base, control
27551 - spring
27552 - ball
27553 - plate
27555 - lens, heater control
27561 - button, air conditioner
27561M - button, ventilator
27561N - button, bi-level
27561P - button, foot
27561Q - button, defroster foot
27561R - button, defroster
27561U - button, recirc
27580 - harness, control
27654Q - lever, temp control
27654R - lever, control
27665A - screw
27726N - amplifier, control air conditioner
27765E - bracket, control
27795 - grille, sensor
27864 - finisher, rear heater control
27864M - finisher, control

Nissan Sunny genuine parts
