240 - wiring (Denso) for Nissan Skyline PV35

	Frame / Series PV35 / V35 body S (sedan ) engine VQ35DE (VQ35DE gasoline ) drive 2WD Manufacture period 12.2005 - ... grade 350GTP (350GT premium ) transmission AT.F5

---

Applies for models	Manufacture period	Spec
S.VQ35DE	11.2004 - ...	engine ﾙｰﾑ ﾊ-ﾈｽ-1

Open full screen picture Up to the top

24012 - harness assembly, engine room 24012B - screw 24370 - connector assembly, fusible link 24370+A - connector assembly, fusible link 24381 - housing, fusible link holder 24382M - cover, relay box 24388P - bracket, relay box 25420 - cover, fuse block 25465M - fuse

---

Applies for models	Manufacture period	Spec
S.VQ35DE	11.2004 - ...	engine ﾙｰﾑ ﾊ-ﾈｽ-2

Open full screen picture Up to the top

081686121A 24012B - screw 24136U - bracket assembly, connector 24236P - bracket, connector 24269Q - plug, blind 24269QA - plug, blind 24382V - cover, relay box 24382VA - cover, relay box 24388M - bracket, relay 24388PA - bracket, relay box 25465M - fuse 284B7 - controller unit,IPDM engine room 284B8 - cover,USM 284B9 - cover,USM

---

Applies for models	Manufacture period	Spec
S.VQ35DE	11.2004 - ...	body -NO.2 harness

Open full screen picture Up to the top

24017M - harness, body NO2 24058 - harness, defogger rear 24273A - protector, harness 64899B - cover, hole

---

Applies for models	Manufacture period	Spec

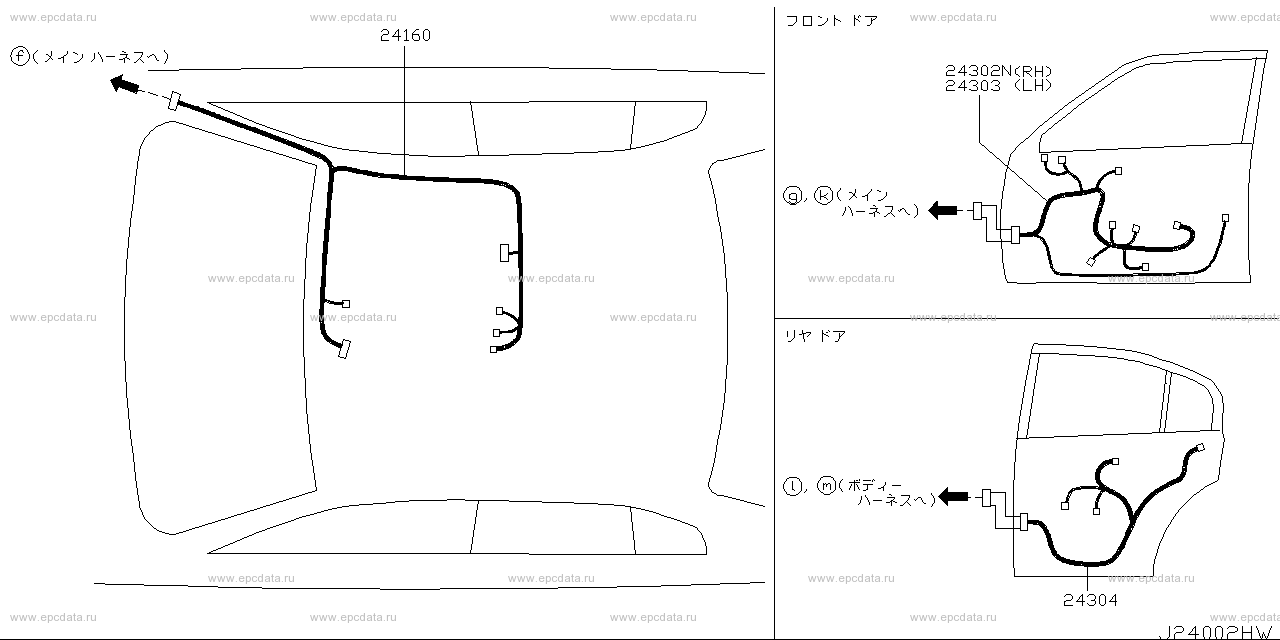

S.VQ35DE	11.2004 - 12.2005	roof & ﾄﾞｱ ﾊ-ﾈｽ

Open full screen picture Up to the top

24160 - harness assembly, room lamp 24302N - harness assembly, door front 24303 - harness assembly, door front 24304 - harness assembly, door rear

---

Applies for models	Manufacture period	Spec
S.VQ35DE	12.2005 - ...	ﾒｲﾝ ﾊ-ﾈｽ

Open full screen picture Up to the top

081666121A 081686161A 24010 - harness assembly, main 24028Q - harness, sub 24040 - harness assembly, air conditioner 24136Q - bracket assembly, connector 24229 - bracket, junction 24229+A - bracket, junction 24230U - bracket 24270 - protector, harness 24312P - label, fuse block 24350P - block, junction 25410U - puller, fuse 25419N - bracket, fuse block 25419NA - bracket, fuse block 25419NB - bracket, fuse block 25464 - fuse

---

Applies for models	Manufacture period	Spec
S.VQ35DE	12.2005 - ...	body - harness

Open full screen picture Up to the top

24010 - harness assembly, main 24014 - harness assembly, body 24024P - harness, switch 24055M - harness, license lamp 24167N - harness, sub 24276UA - protector, harness 24276UB - protector, harness 28351M - condenser, ignition coil

---

Applies for models	Manufacture period	Spec
S.VQ35DE	12.2005 - ...	roof & ﾄﾞｱ ﾊ-ﾈｽ

Open full screen picture Up to the top

24160 - harness assembly, room lamp 24271F - protector, harness 24302N - harness assembly, door front 24303 - harness assembly, door front 24304 - harness assembly, door rear

---

Applies for models	Manufacture period	Spec
S.VQ35DE	11.2004 - ...	EGI ﾊ-ﾈｽ-1

Open full screen picture Up to the top

081466122G 24078 - harness assembly,EGI 24079+A - harness assembly,EGI sub 24079+B - harness assembly,EGI sub 24136J - bracket,EGI harness 24136JB - bracket,EGI harness 24136JC - bracket,EGI harness 24136JD - bracket,EGI harness 24136JE - bracket,EGI harness 24276M - protector, harness 24276MA - protector, harness

---

Applies for models	Manufacture period	Spec
S.VQ35DE	11.2004 - ...	EGI ﾊ-ﾈｽ-2

Open full screen picture Up to the top

081466122G 24110C - bolt 24110CA - bolt 24110CB - bolt 24136JF - bracket,EGI harness 24136JJ - bracket,EGI harness 24136JK - bracket,EGI harness 24136JL - bracket,EGI harness 24136JM - bracket,EGI harness 24136JN - bracket,EGI harness 24136JP - bracket,EGI harness 24136JQ - bracket,EGI harness 24136JR - bracket,EGI harness 24136V - bracket assembly, connector 24136VA - bracket assembly, connector 24136VB - bracket assembly, connector 24136VC - bracket assembly, connector 24276 - protector, harness 28351M - condenser, ignition coil

---

Applies for models	Manufacture period	Spec
S.VQ35DE	11.2004 - ...	ﾊﾞｯﾃﾘ- ﾏﾜﾘ

Open full screen picture Up to the top

081468122G 0836051062 24012B - screw 24080 - cable assembly, battery earth 24080+A - cable assembly, battery earth 24110 - cable assembly, battery to starter motor 24215M - clip, wiring harness 24230 - bracket 24230QA - bracket 24250MA - cap, terminal 24250MB - cap, terminal 24344M - terminal, earth 24345W - cover, connector 25237B - nut 25411 - holder, fusible link

---

Applies for models	Manufacture period	Spec
S.VQ35DE	11.2004 - 12.2005	ﾒｲﾝ ﾊ-ﾈｽ

Open full screen picture Up to the top

081666121A 081686161A 24010 - harness assembly, main 24040 - harness assembly, air conditioner 24136Q - bracket assembly, connector 24229 - bracket, junction 24229+A - bracket, junction 24230U - bracket 24270 - protector, harness 24312P - label, fuse block 24335 - diode 24350P - block, junction 25410U - puller, fuse 25419N - bracket, fuse block 25419NA - bracket, fuse block 25419NB - bracket, fuse block 25464 - fuse

---

Applies for models	Manufacture period	Spec
S.VQ35DE	11.2004 - 12.2005	body - harness

Open full screen picture Up to the top

24010 - harness assembly, main 24014 - harness assembly, body 24024P - harness, switch 24167N - harness, sub 24276UA - protector, harness 24276UB - protector, harness 28351M - condenser, ignition coil

Skyline PV35
