A1302 - cam shaft & valve mechanism (engine) for Nissan Skyline ER30

	Frame / Series ER30 / R30 body S (sedan ) engine LD28 (2800 diesel ) grade GTX Manufacture period 08.1981 - ... transmission FA (floor automatic )

Applies for models	Manufacture period	Spec
LD28	08.1981 - ...

Open full screen picture

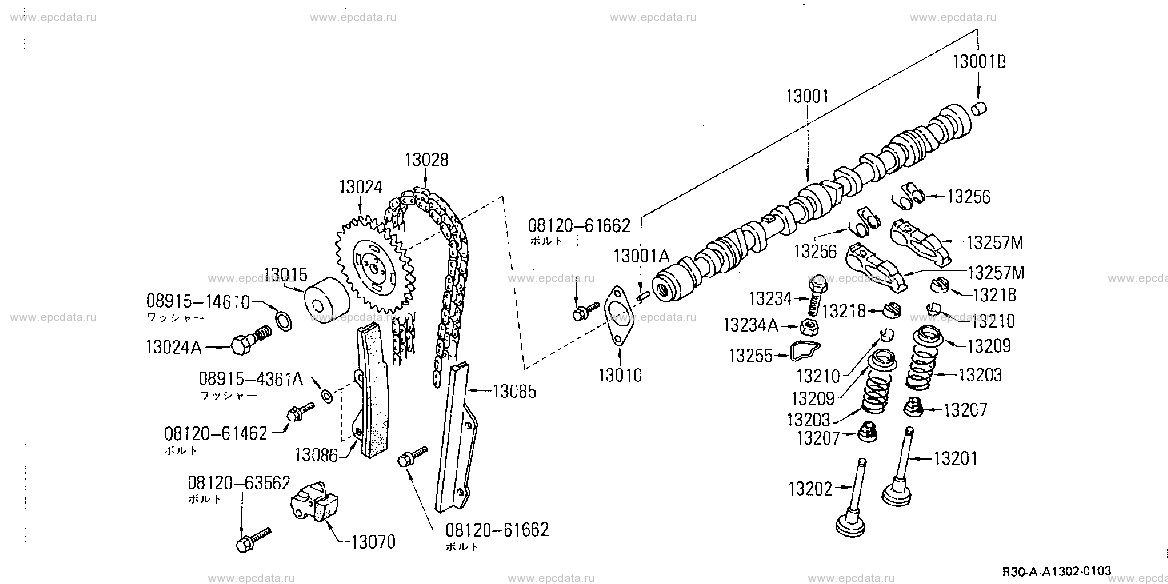

0812061462 0812061662 0812063562 0891514610 089154361A 13001 - camshaft assembly 13001A - dowel, camshaft 13001B - plug, taper camshaft 13010 - plate, locating camshaft 13015 - cam assembly, fuel pump 13024 - sprocket (pulley), camshaft 13024A - bolt, sprocket camshaft 13028 - chain, timing camshaft 13070 - tensioner assembly, chain 13085 - guide, chain tension side 13086 - guide, chain slack side 13201 - valve, intake 13202 - valve, exhaust 13203 - spring, valve outer 13207 - seal, oil valve 13209 - retainer, valve spring 13210 - collet, valve spring 13218 - guide, rocker valve 13234 - screw, adjust valve rocker 13234A - nut, lock rocker pivot screw 13255 - retainer, rocker pivot 13256 - spring, rocker 13257M - rocker, valve

Skyline ER30
