322 - transmission gear (unit) for Nissan Silvia S15

	Frame / Series S15 / S15 body K (coupe ) engine SR20DE (2000 gasoline twincam ) suspension 2WS (no super HICAS ) Manufacture period 01.1999 - ... grade S/AERO (SPEC S(G/B/L/V pack)/Sｴｱﾛ) transmission MT.F5 (manual transmission 5-speed )

---

Applies for models	Manufacture period	Spec
MT.F5	01.1999 - ...	メイン ギア（ＦＳ５Ｗ７１Ｃ）

Open full screen picture Up to the top

32200S - gear set, main & counter drive 32203 - bearing, main drive 32203+A - bearing, main drive 32204 - ring, snap 32228 - ring, snap over drive bearing 32228+A - ring, snap over drive bearing 32228+B - ring, snap over drive bearing 32230 - gear assembly, first 32241 - shaft, main 32241B - nut, main shaft 32245 - gear, reverse main shaft 32246 - washer, thrust 32250 - gear assembly, second 32253 - bush, first gear 32260 - gear assembly, third 32263 - ring, snap 32264R - bearing, needle main shaft 32264RA - bearing, needle main shaft 32264RB - bearing, needle main shaft 32264RC - bearing, needle main shaft 32272 - bearing, pilot main 32272F - roller, needle bearing 32273 - bearing, main shaft 32274M - bush, reverse main gear 32310S - gear set, main & counter over drive 32349 - bush, over drive gear 32350 - bearing, over drive gear 32352 - washer, thrust 32531F - spacer 32538 - bearing, roller 32601 - hub, synchronizer 32602 - spring, shifting insert 32602+A - spring, shifting insert 32604 - ring, balk 32604+A - ring, balk 32604+B - ring, balk 32604+C - ring, balk 32604+D - ring, balk 32604+E - ring, balk 32606+B - sleeve, coupling 32608 - insert, shifting 32608+A - insert, shifting 32608+B - insert, shifting 32610Q - sleeve & hub, coupling 32610QA - sleeve & hub, coupling 32701 - gear, drive speedometer 32701B - ball, steel 32701BA - ball, steel

---

Applies for models	Manufacture period	Spec

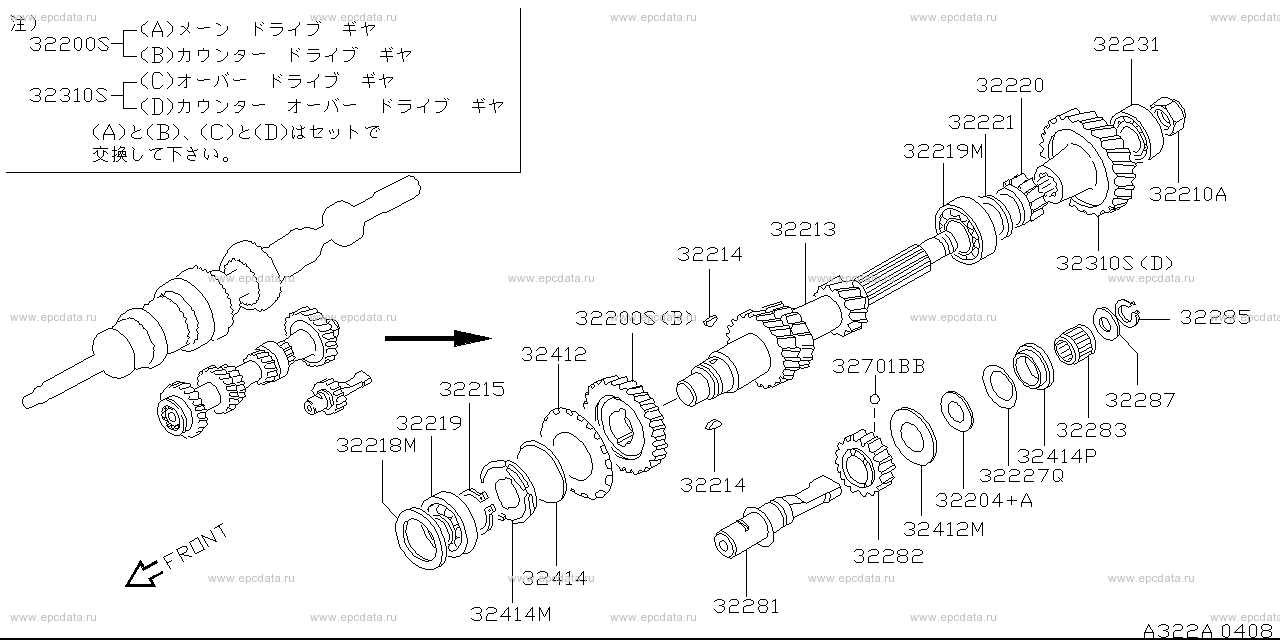

MT.F5	01.1999 - ...	カウンター ギア（ＦＳ５Ｗ７１Ｃ）

Open full screen picture Up to the top

32200S - gear set, main & counter drive 32204+A - ring, snap 32210A - nut 32213 - gear, counter 32214 - key, woodruff 32215 - ring, snap 32218M - shim, bearing 32219 - bearing, counter shaft 32219M - bearing, counter shaft 32220 - gear, reverse counter 32221 - spacer, counter reverse gear 32227Q - spring, sub gear 32231 - bearing, counter shaft 32281 - shaft, reverse idler 32282 - gear, reverse idler 32283 - bearing, reverse idler gear 32285 - ring, snap 32287 - washer, thrust reverse idler 32310S - gear set, main & counter over drive 32412 - gear, sub counter drive gear 32412M - gear, sub reverse idler gear 32414 - spacer, sub gear 32414M - bracket, sub gear counter drive gear 32414P - bracket, sub gear 32701BB - ball, steel

Silvia S15
