210 - water pump & cooling fan & thermostat (engine) for Nissan Serena C25

	Frame / Series C25 / C25 body W (wagon ) engine MR20DE (MR20DE engine ) drive 2WD (two wheel drive ) Manufacture period 05.2005 - ... grade 20G (20G grade ) transmission CVT (continuously variable transmission )

---

Applies for models	Manufacture period	Spec
MR20DE	05.2005 - 01.2006
MR20DE	12.2007 - ...	ライダー

Open full screen picture Up to the top

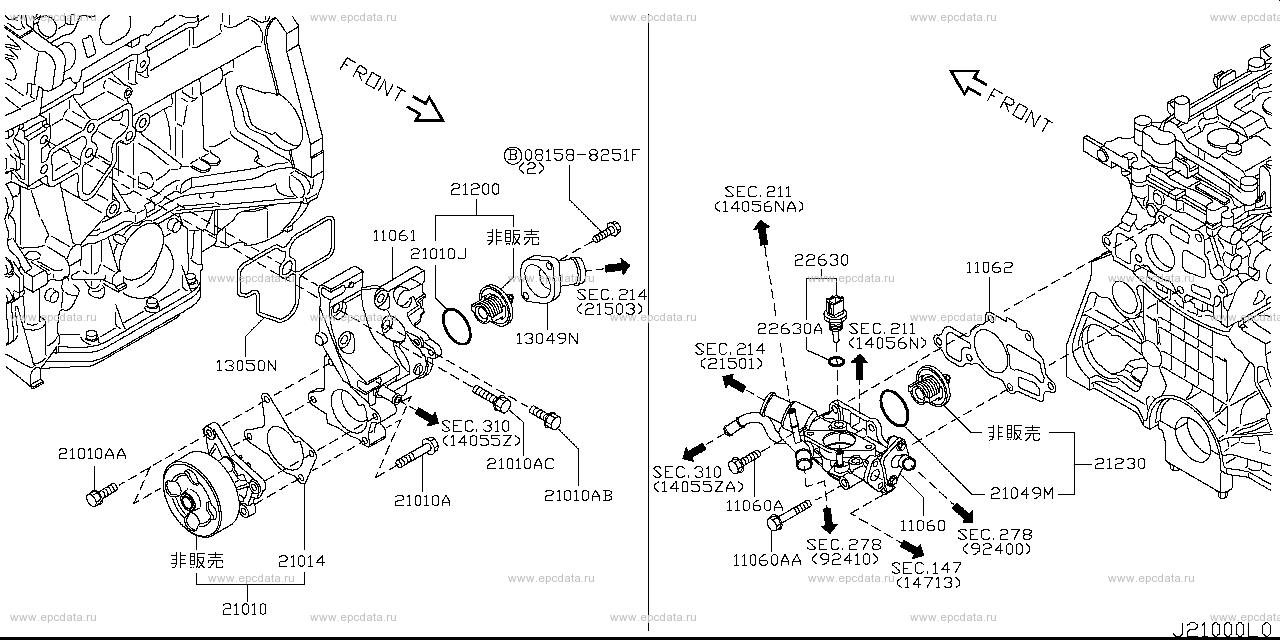

081588251F 11060 - outlet, water 11060A - bolt 11061 - housing, thermostat 11062 - gasket, water outlet 13049N - inlet, water 13050N - gasket, water inlet 21010 - pump assembly, water 21010A - bolt 21010AA - bolt 21010AB - bolt 21010AC - bolt 21010J - seal,O ring 21014 - gasket, water pump 21049M - seal,O ring 21200 - thermostat assembly 21230 - valve assembly, water control 22630 - sensor assembly, temperature (water temperature sensor) 22630A - gasket, temperature sensor

---

Applies for models	Manufacture period	Spec
MR20DE	01.2006 - 12.2007
MR20DE	12.2007 - ...	標準

Open full screen picture Up to the top

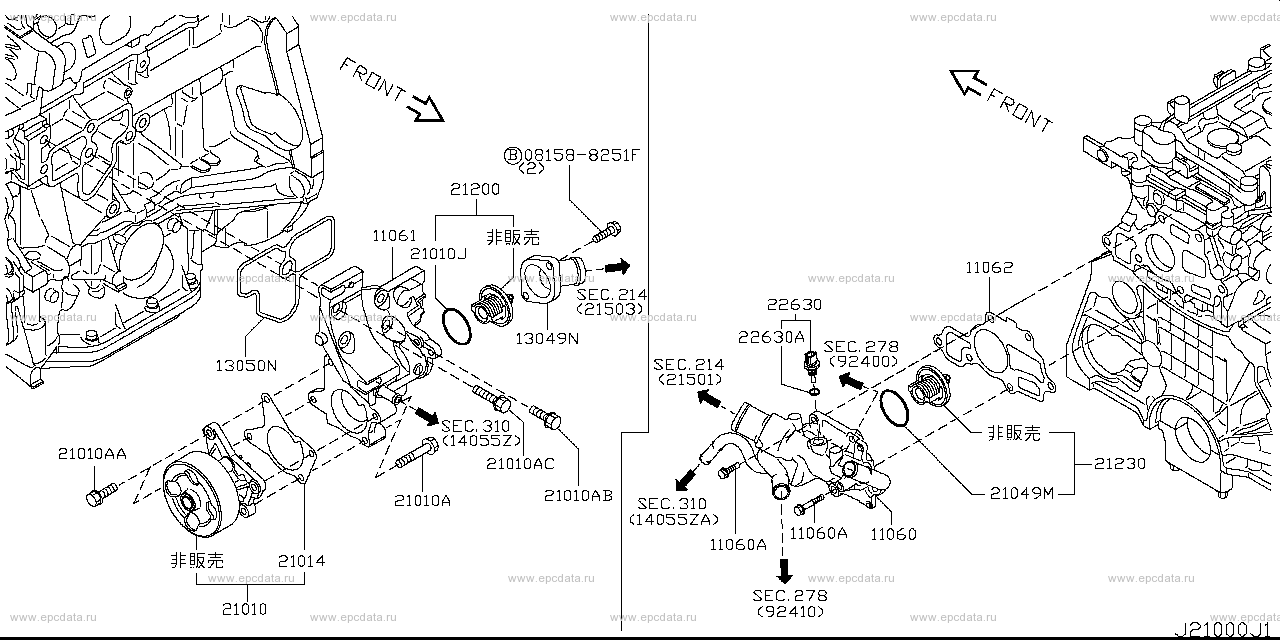

081588251F 11060 - outlet, water 11060A - bolt 11060AA - bolt 11061 - housing, thermostat 11062 - gasket, water outlet 13049N - inlet, water 13050N - gasket, water inlet 21010 - pump assembly, water 21010A - bolt 21010AA - bolt 21010AB - bolt 21010AC - bolt 21010J - seal,O ring 21014 - gasket, water pump 21049M - seal,O ring 21200 - thermostat assembly 21230 - valve assembly, water control 22630 - sensor assembly, temperature (water temperature sensor) 22630A - gasket, temperature sensor

Serena C25
