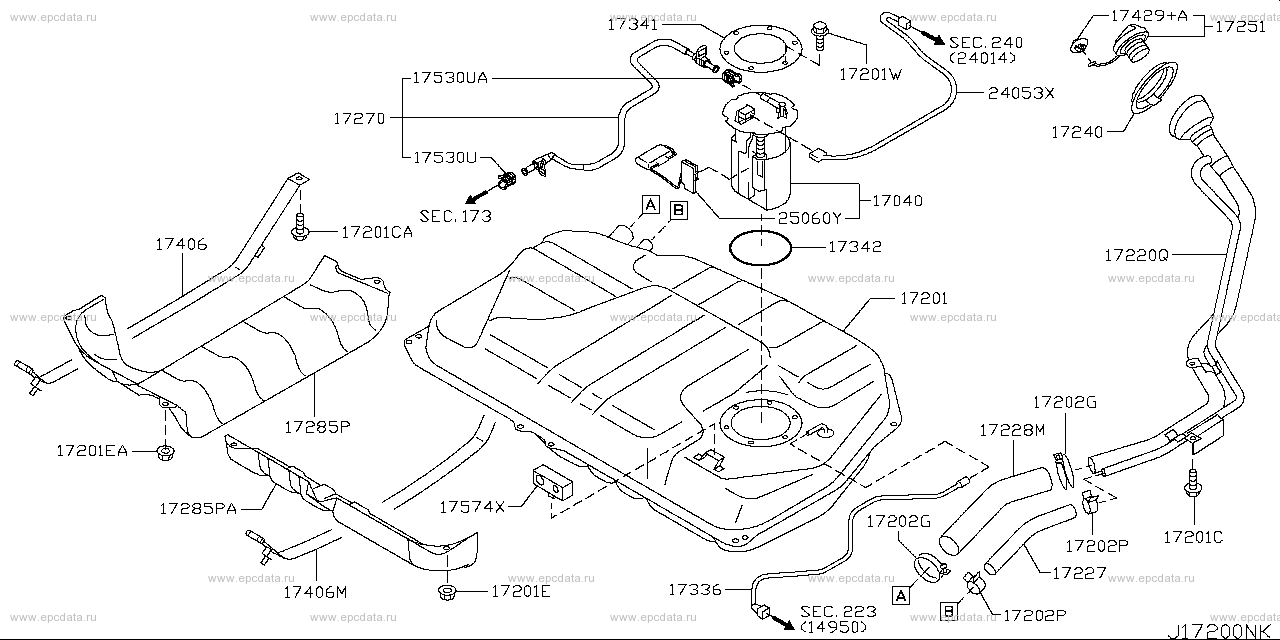

172 - fuel tank (chassis) for Nissan Serena C25

	Frame / Series C25 / C25 body W (wagon ) engine MR20DE (MR20DE engine ) drive 2WD (two wheel drive ) Manufacture period 05.2005 - ... grade 20G (20G grade ) transmission CVT (continuously variable transmission )

---

Applies for models	Manufacture period	Spec
2WD.MR20DE	01.2006 - 12.2007

Open full screen picture Up to the top

17040 - pump complete, fuel 17201 - tank assembly, fuel 17201C - bolt 17201CA - bolt 17201E - nut 17201EA - nut 17201W - screw 17202G - clamp 17202P - clamp 17220Q - tube assembly, filler 17227 - hose, ventilation 17228M - hose, filler 17240 - grommet, filler base 17251 - cap assembly, filler 17270 - tube assembly, fuel tank outlet 17285P - protector, fuel tank 17285PA - protector, fuel tank 17336 - hose, evaporation 17341 - retainer, fuel luggage 17342 - seal,O ring fuel gauge 17406 - band assembly, fuel tank mounting 17406M - band assembly, fuel tank mounting 17429+A - pin, fuel cap mounting 17530U - connector assy, quick lock 17530UA - connector assy, quick lock 17574X - clip 24053X - harness, fuel gauge tank 25060Y - sender unit, fuel gauge

---

Applies for models	Manufacture period	Spec
2WD.MR20DE	05.2005 - 01.2006

Open full screen picture Up to the top

17040 - pump complete, fuel 17201 - tank assembly, fuel 17201C - bolt 17201CA - bolt 17201E - nut 17201EA - nut 17201W - screw 17202G - clamp 17202P - clamp 17220Q - tube assembly, filler 17227 - hose, ventilation 17228M - hose, filler 17240 - grommet, filler base 17251 - cap assembly, filler 17270 - tube assembly, fuel tank outlet 17285P - protector, fuel tank 17285PA - protector, fuel tank 17336 - hose, evaporation 17341 - retainer, fuel luggage 17342 - seal,O ring fuel gauge 17406 - band assembly, fuel tank mounting 17406M - band assembly, fuel tank mounting 17429+A - pin, fuel cap mounting 17530U - connector assy, quick lock 17530UA - connector assy, quick lock 17574X - clip 24053X - harness, fuel gauge tank

---

Applies for models	Manufacture period	Spec
2WD.MR20DE	12.2007 - ...

Open full screen picture Up to the top

17040 - pump complete, fuel 17201 - tank assembly, fuel 17201C - bolt 17201CA - bolt 17201E - nut 17201EA - nut 17201W - screw 17202G - clamp 17202P - clamp 17220Q - tube assembly, filler 17227 - hose, ventilation 17228M - hose, filler 17240 - grommet, filler base 17243M - shim, fuel tank 17251 - cap assembly, filler 17270 - tube assembly, fuel tank outlet 17285P - protector, fuel tank 17285PA - protector, fuel tank 17336 - hose, evaporation 17341 - retainer, fuel luggage 17342 - seal,O ring fuel gauge 17406 - band assembly, fuel tank mounting 17406M - band assembly, fuel tank mounting 17429+A - pin, fuel cap mounting 17574X - clip 24053X - harness, fuel gauge tank 25060Y - sender unit, fuel gauge
