NissanRasheenRFNB1401.1997 - 09.1999Chassis and transmission401 - front suspension (chassis)

401 - front suspension (chassis) for Nissan Rasheen RFNB14



Frame / SeriesRFNB14 / RB14 body W (wagon )engine GA15DE (1500 gasoline )grade TYPE1
Manufacture period01.1997 - 09.1999transmission AT (automatic transmission )


Scheme 401A_001 Scheme 401A_002 Scheme 401A_003
Applies for modelsManufacture periodSpec

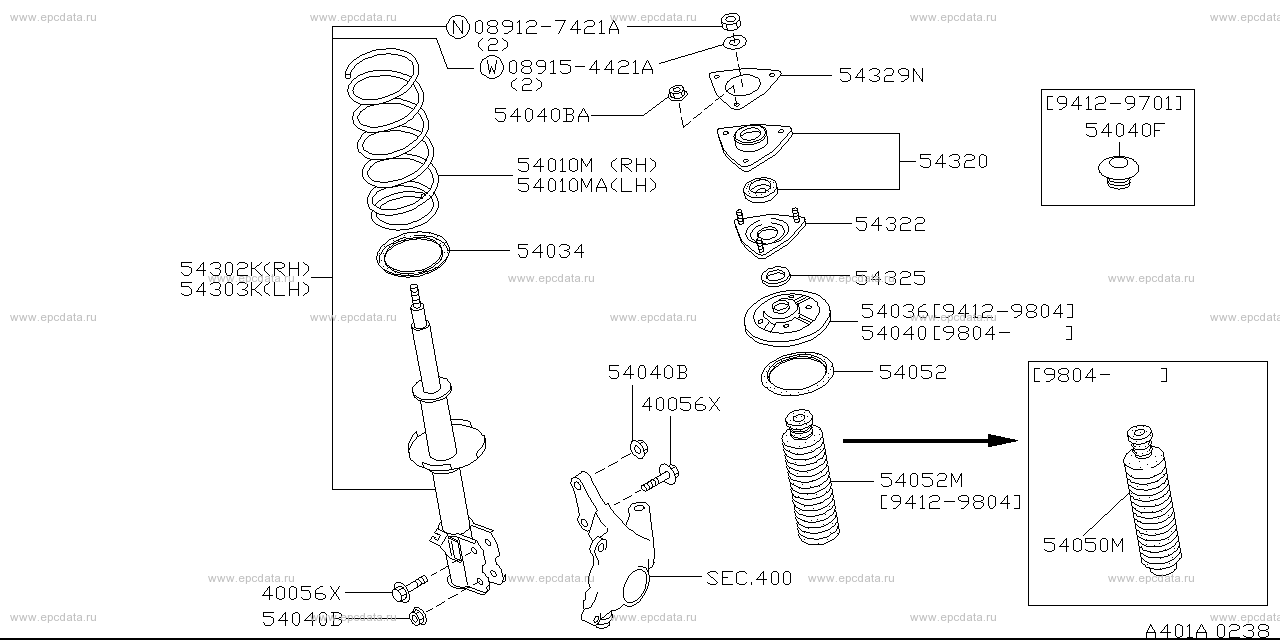

GA15DE11.1994 - 01.1997ストラット
GA15DE +SR18DE01.1997 - 01.1998ストラット
GA15DE +SR18DE +SR20DE01.1998 - 09.1999ストラット

Open full screen pictureOpen full screen picture
Up to the top

089127421A
089154421A
40056X - bolt, knuckle arm
54010M - spring, front
54010MA - spring, front
54034 - seat, rubber front spring
54036 - seat, front spring
54040 - seat assembly, front spring upper
54040B - nut
54040BA - nut
54040F - plug
54050M - bumper assembly, bound
54052 - seat, front spring
54052M - bumper, bound front suspension strut
54302K - strut kit, front suspension RH
54303K - strut kit, front suspension LH
54320 - insulator assembly, strut mounting
54322 - bracket, front strut mounting insulator
54325 - bearing, strut mounting
54329N - spacer, front strut insulator
Applies for modelsManufacture periodSpec

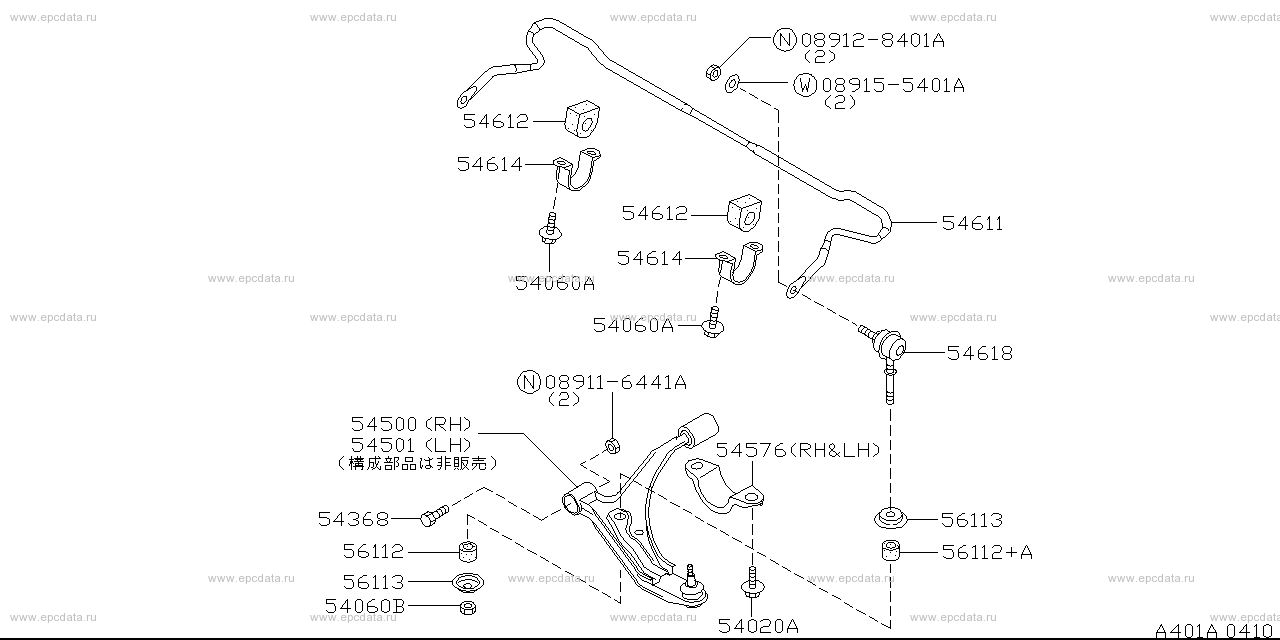

GA15DE11.1994 - 01.1997リンク ＆ スタビライザー
GA15DE +SR18DE01.1997 - 01.1998リンク ＆ スタビライザー
GA15DE +SR18DE +SR20DE01.1998 - ...リンク ＆ スタビライザー

Open full screen pictureOpen full screen picture
Up to the top

089116441A
089128401A
089155401A
54020A - bolt
54060A - bolt
54060B - nut
54368 - bolt
54500 - link complete, transverse RH
54501 - link complete, transverse LH
54576 - clamp
54611 - stabilizer, front
54612 - bush, stabilizer
54614 - clamp, stabilizer
54618 - rod assembly, connecting stabilizer
56112 - bush
56112+A - bush
56113 - washer, special outer
Applies for modelsManufacture periodSpec

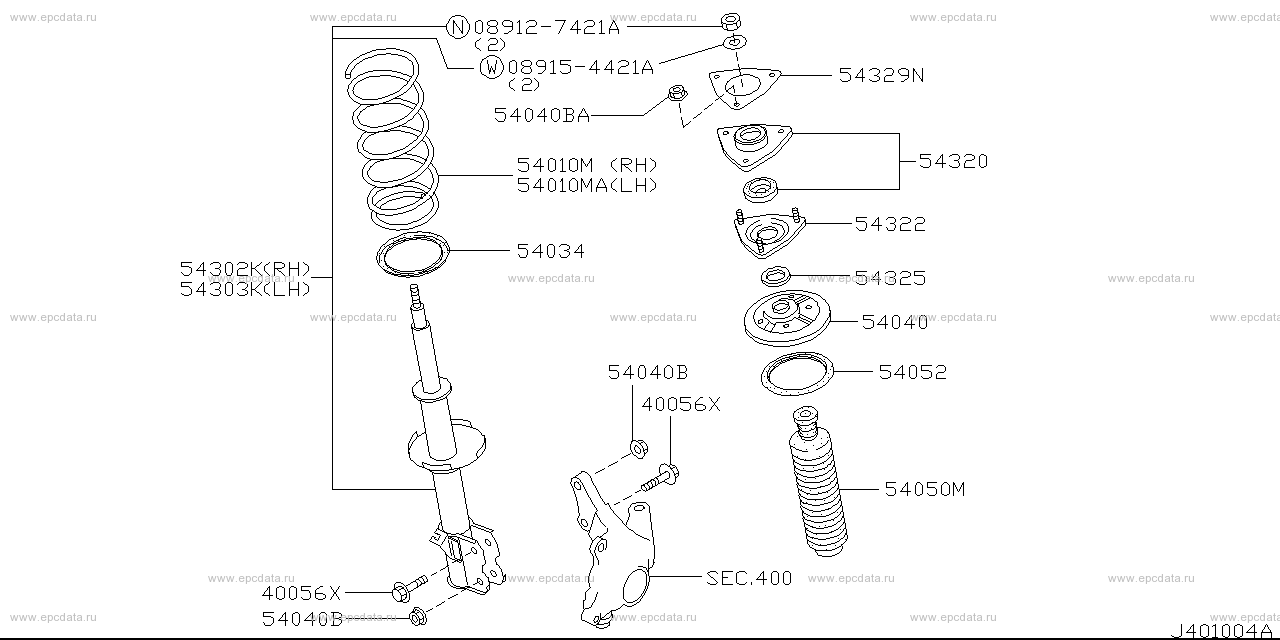

GA15DE +SR18DE +SR20DE09.1999 - ...ストラット

Open full screen pictureOpen full screen picture
Up to the top

089127421A
089154421A
40056X - bolt, knuckle arm
54010M - spring, front
54010MA - spring, front
54034 - seat, rubber front spring
54040 - seat assembly, front spring upper
54040B - nut
54040BA - nut
54050M - bumper assembly, bound
54052 - seat, front spring
54302K - strut kit, front suspension RH
54303K - strut kit, front suspension LH
54320 - insulator assembly, strut mounting
54322 - bracket, front strut mounting insulator
54325 - bearing, strut mounting
54329N - spacer, front strut insulator

Nissan Rasheen genuine parts
