110 - cylinder block & oil pan (engine) for Nissan Rasheen RFNB14

	Frame / Series RFNB14 / RB14 body W (wagon ) engine GA15DE (1500 gasoline ) grade NASHI (14ｹﾀﾒｲｺｳﾃﾞ ｸﾞﾚｰﾄﾞｶﾞｷﾏﾘﾏｽ) Manufacture period 11.1994 - 01.1997 transmission MT (manual transmission )

---

Applies for models	Manufacture period	Spec
GA15DE	11.1994 - 01.1997	アッセンブリー
GA15DE	01.1997 - ...	アッセンブリー

Open full screen picture Up to the top

0812061428 0812061628 0891120610 0891533610 11010 - block assembly, cylinder 11110 - pan assembly, oil 11110B - bolt 11110F - bolt 11121Z - gasket, liquid 11128 - plug, drain 11128A - washer, drain plug 11140 - gauge, oil level 11251 - plate, engine rear 11251N - cover, rear plate 12279 - seal, oil crankshaft rear 12296 - retainer, oil seal rear 15146 - guide, oil level gauge 15213P - stud, oil filter 15241 - valve assembly, relief

---

Applies for models	Manufacture period	Spec
GA15DE	11.1994 - 01.1997	シリンダー ブロック 構成
GA15DE	01.1997 - ...	シリンダー ブロック 構成

Open full screen picture Up to the top

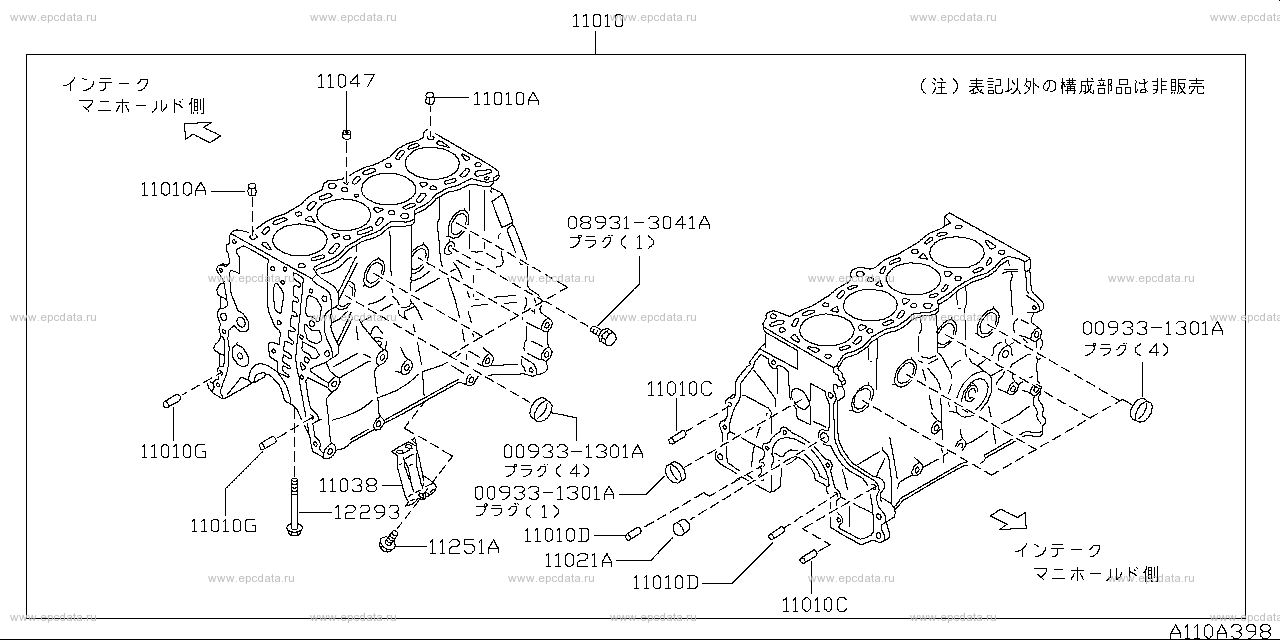

009331301A 089313041A 11010 - block assembly, cylinder 11010A - dowel, block to head 11010C - dowel, block 11010D - dowel, block 11010G - dowel, block to oil pump 11021A - plug, taper 11038 - plate, baffle crank case 11047 - jet, oil cylinder head 11251A - bolt 12293 - bolt, main bearing cap

Rasheen RFNB14
