G2731 - heater, cooler & air conditioner (unit) (Denso) for Nissan Pulsar / Langley / Liberta villa HN12

	Frame / Series HN12 / N12 ﾊﾝｹｲ P# (ﾌﾟﾘﾝｽｹｲ(Langley)) body 5HB (5-door hatchback ) engine E15S (1500 gasoline single cab ) Manufacture period 05.1982 - ... grade D transmission AT (floor automatic )

---

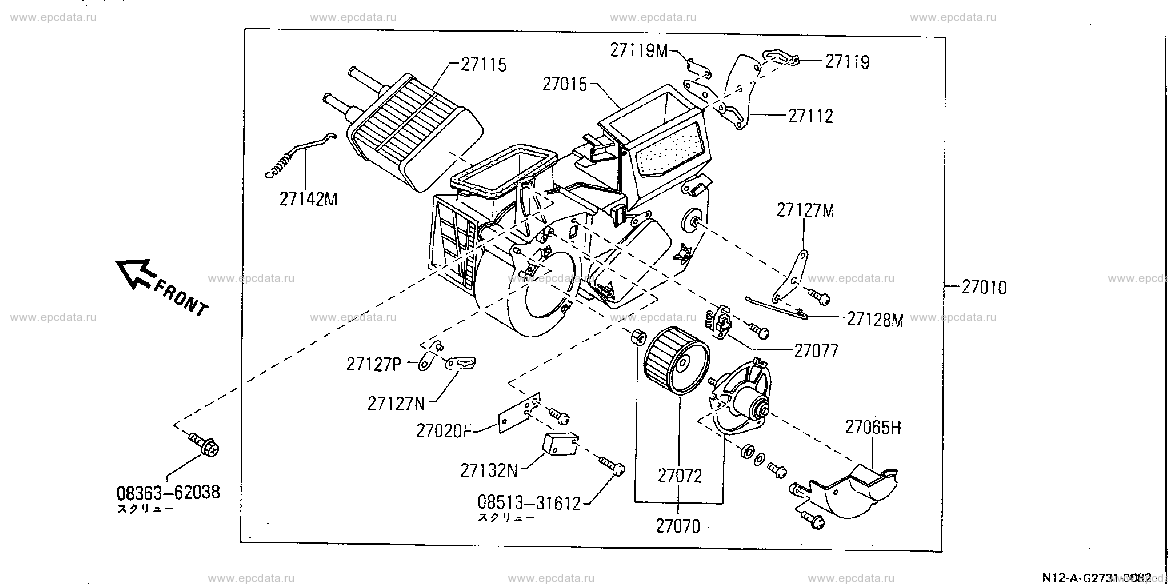

Applies for models	Manufacture period	Spec
ALL	05.1982 - ...	ヒーターユニット

Open full screen picture Up to the top

0836362038 0851331612 27010 - heating unit assembly, front 27015 - case assembly, front heater 27020F - bracket, blower 27065H - cover, heater blower 27070 - motor & fan assembly, blower 27072 - fan, blower - 27077 - resistance, electric 27112 - link assembly, side 27115 - core assembly, front heater 27119 - lever 27119M - lever 27127M - link, air door NO 1 27127N - link, air door NO 2 27127P - link, air door NO 3 27128M - rod, air door NO 1 27132N - switch, micro cooler 27142M - cable, control diverter door

---

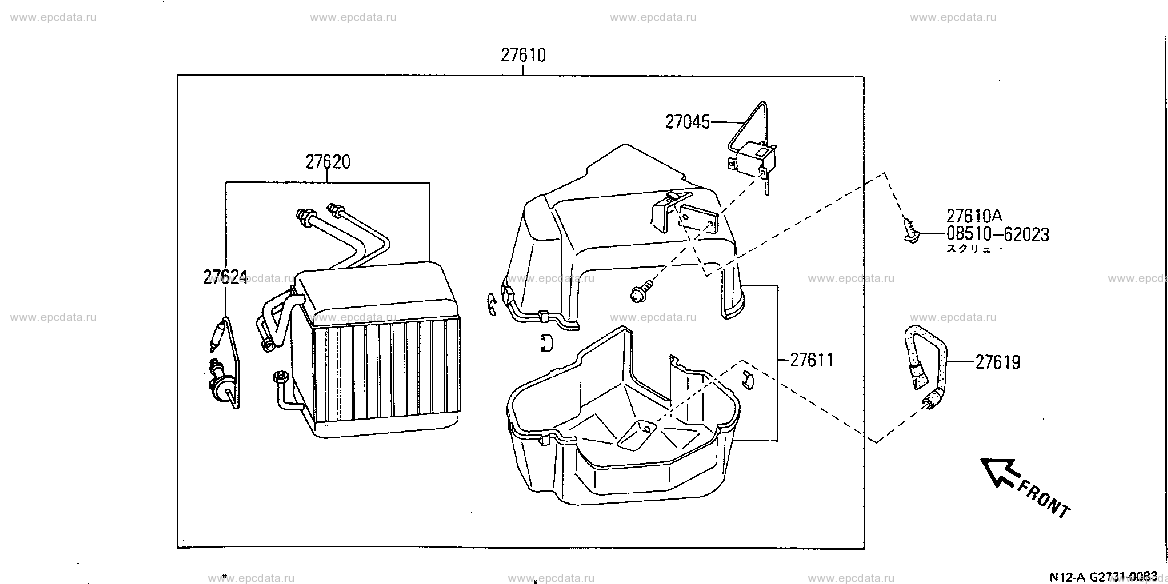

Applies for models	Manufacture period	Spec
*ALL	05.1982 - ...	クーリングユニット

Open full screen picture Up to the top

0851062023 27045 - switch, thermo 27610 - cooling unit assembly 27610A - bolt 27611 - case assembly, cooling unit 27619 - hose, drain 27620 - evaporator assembly, cooler 27624 - valve assembly, expansion

---

Applies for models	Manufacture period	Spec

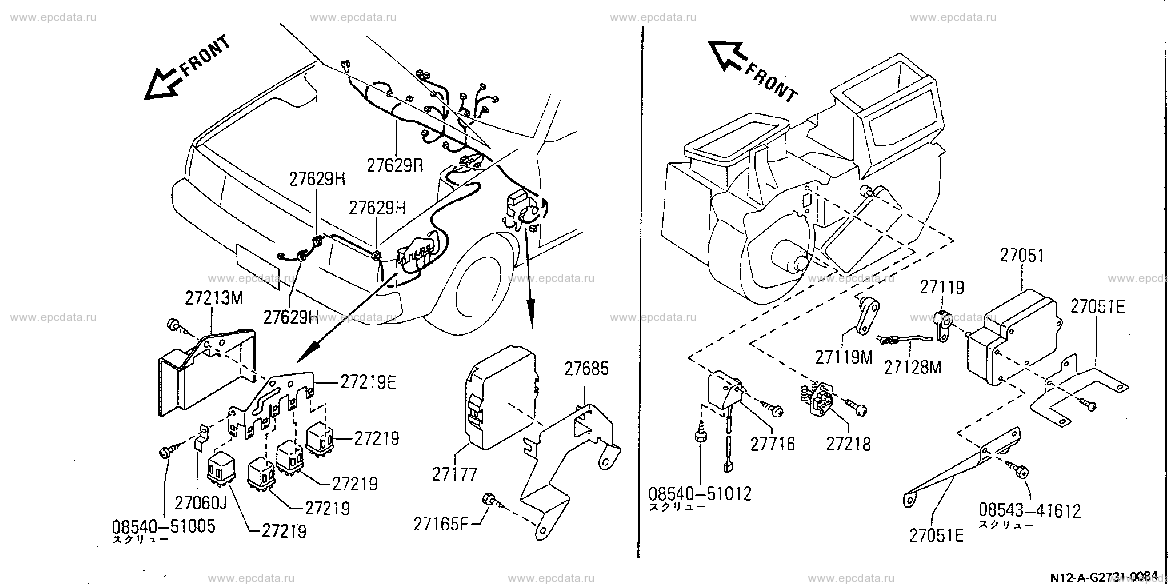

*ALL	03.1984 - ...	（オート エアコン用）

Open full screen picture Up to the top

0854051005 0854051012 0854341612 27051 - servo, power 27051E - bracket, power servo 27060J - bracket, relay 27119 - lever 27119M - lever 27128M - rod, air door NO 1 27165F - screw 27177 - amplifier assembly, fan control 27213M - cover, rear heater 27218 - resistance, rear heater 27219 - relay, rear heater 27219E - bracket, relay 27629H - clip, harness 27629R - harness, air conditioner 27685 - bracket, clip 27716 - switch, thermo

Pulsar / Langley / Liberta villa HN12
