NissanPrimera CaminoWP1109.1997 - 09.1998Chassis and transmission310 - automatic transmission, transaxle & fit (unit)

310 - automatic transmission, transaxle & fit (unit) for Nissan Primera Camino WP11



Frame / SeriesWP11 / WP11 body W (wagon )engine SR18DE (1800 gasoline )drive 2WD (2 wheel drive )
Manufacture period09.1997 - 09.1998grade Gtransmission AT.F4 (automatic transmission F4)

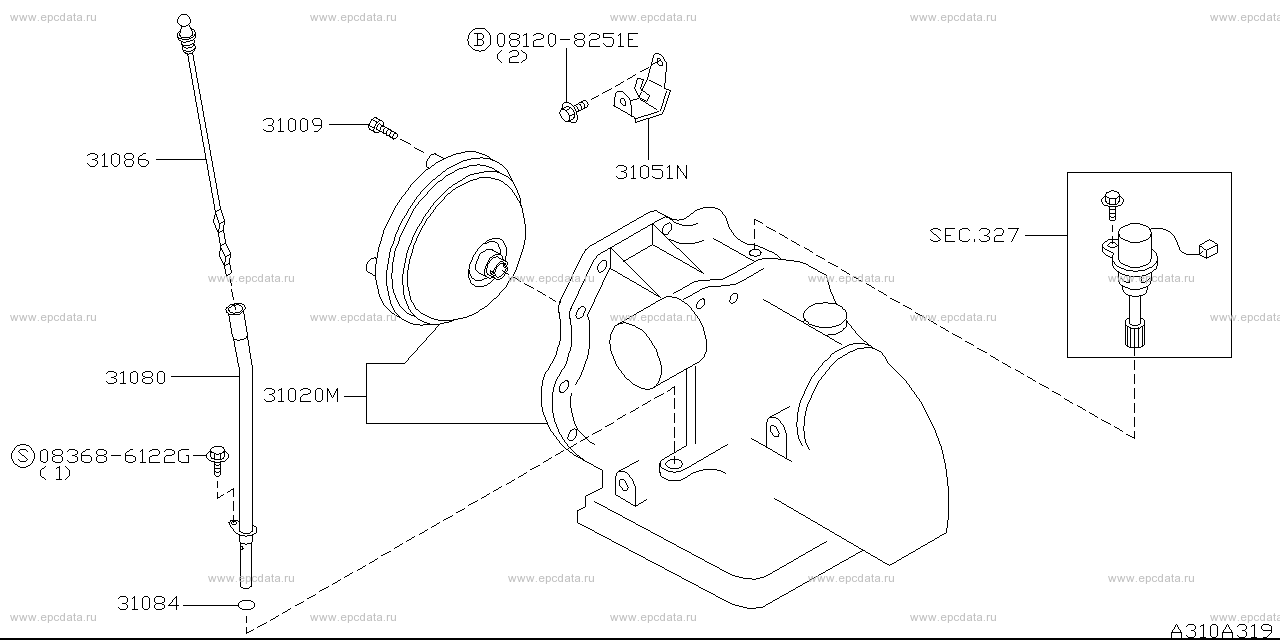

Scheme 310A_001 Scheme 310A_002
Applies for modelsManufacture periodSpec
SR18DE.AT.F409.1997 - 09.1998ｱｯｾﾝﾌﾞﾘｰ & ｵｲﾙﾁｬｰｼﾞﾝｸﾞﾊﾟｰﾂ

Open full screen pictureOpen full screen picture
Up to the top

081208251E
083686122G
31009 - bolt, self lock
31020M - transaxle assembly, automatic
31051N - bracket, throttle wire
31080 - pipe assembly, oil charging
31084 - seal,O ring
31086 - gauge assembly, oil level
Applies for modelsManufacture periodSpec
SR18DE.AT.F409.1997 - 09.1998ｵｲﾙｸｰﾗｰﾁｭｰﾌﾞ & ﾏｳﾝﾃｨﾝｸﾞ

Open full screen pictureOpen full screen picture
Up to the top

083686122G
21621 - tube assembly, oil cooler
21623 - tube assembly, oil cooler
21625 - bolt, connector
21626 - washer, seal
31051E - clip, throttle wire
31098Z - hose, breather
31180A - bolt
31180AA - bolt
31180AB - bolt
31182E - clip
31182EA - clip
