328 - transmission shift control (unit) for Nissan Presea HR10

	Frame / Series HR10 / R10 body K (hard top ) engine SR20D (2000 gasoline twincam ) grade CT2 Manufacture period 06.1990 - 06.1992 transmission MT (manual transmission )

Applies for models	Manufacture period	Spec
(SR18DI+SR20D).MT	06.1990 - 06.1992
(SR18DE+SR20D).MT	06.1992 - ...

Open full screen picture

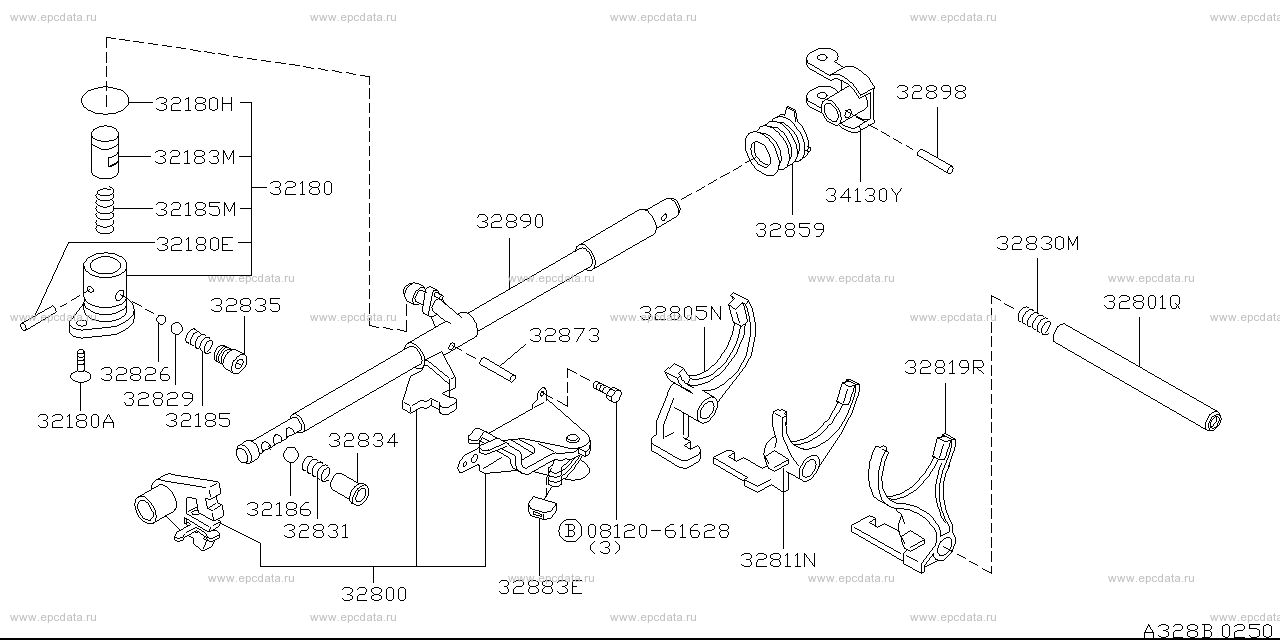

0812061628 32180 - checking assembly, reverse 32180A - bolt 32180E - pin, stopper 32180H - seal,O ring reverse checking 32183M - plunger, reverse checking 32185 - spring, reverse checking 32185M - spring, reverse checking 32186 - ball, check 32800 - control assembly, shift 32801Q - shaft, fork 32805N - fork, shift first & second 32811N - fork, shift third & fourth 32819R - fork, shift fifth 32826 - ball, steel 32829 - ball, check 32830M - spring, support fork shaft 32831 - spring, check ball 32834 - plug, check ball 32835 - plug, checking ball 32859 - boot, rod striking 32873 - pin, retaining 32883E - cap, shifter 32890 - rod, striking 32898 - pin, striking 34130Y - yoke assembly, striking

Presea HR10
